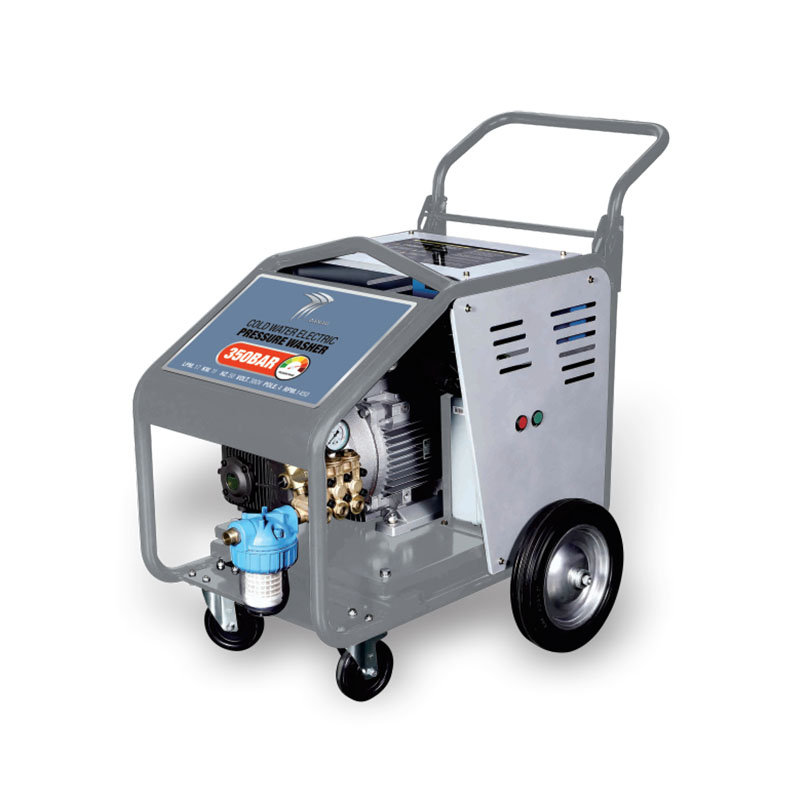

SE SERIES 11-15KW Electric Motor High Pressure Washer

SE type frame, equip with 11-15kw 4p motor, easy push frame with 13inchwheel and swivel castor, COMMERCIAL direct drive triplex pump.

Heavy duty grade triplex pump, direct drive. Performance and life proven electric motor. Push-button switch with Electromagnetic starter, overheating protection. Standard 5m power cord with plug for option. Powder coating frame with 13" solid wheel and front swivel castor and brake. 1-inch cup type water inlet filter with hose barb.

Get a Quote +

PREV：GT SEREIS 3.0-7.5KW Electric Motor High Pressure Washer
NEXT：SE SERIES 18.5-22KW Electric Motor High Pressure Washer

SPECIFICATION
DIMENSION
COMPONENTS
APPLICATIONS
DOCUMENTS

SPECIFICATION

MODEL: DCF-35/16SE-11T4

Max Pressure	5070Psi / 350Bar
Rated Flow	4.2Gpm / 16.1Lpm
Pump Model	DBF-1521C, Brass, Direct Drive
Power And Type	11KW, 380V/50HZ, 4P
Shipping Size	103x82x95cm
Shipping Weight	170kgs

MODEL: DCF-47/16SE-15T4

Max Pressure	6800Psi / 470Bar
Rated Flow	4.2Gpm / 16.1Lpm
Pump Model	DBF-1521C, Stainless Steel, Direct Drive
Power And Type	15KW, 380V/50HZ, 4P
Shipping Size	103x82x95cm
Shipping Weight	180kgs

COMPONENTS

Axial Pump

Semi-professional grade brass forged axial pump, built with thermal protection and detergent injector
High Pressure Hose

ID6.4mm x 8m thermal plastic hose, M22
High Pressure Gun

Professional trigger gun, M22 20" stainless steel lance, 1/4" QD
High Pressure Nozzle

Standard 1/4" quick connect nozzle 5pcs kit with color caps
