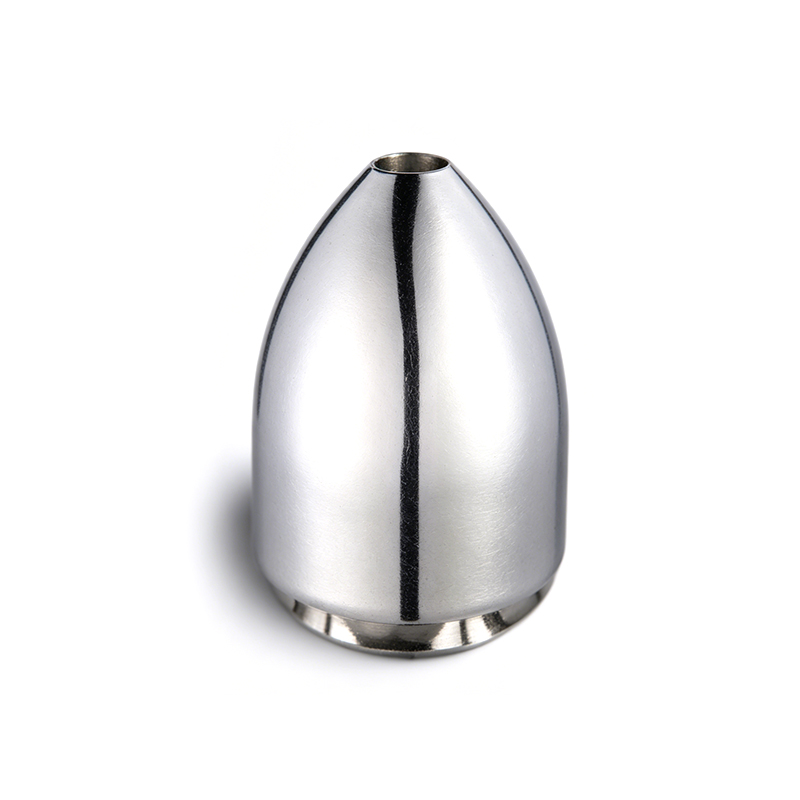

JIE Egg Type Nozzle

Stainless steel 420, heat
treatment, standard M6 insert.
Use for general drain jetting.
Applicable:80－600mm
Max Pressure: 4000Psi/ 275Bar

Get a Quote +

PREV：JTP Rear Boost Front Rotating Nozzle
NEXT：JIG Grenade Type Nozzle

SPECIFICATION

MODEL	Inlet	Front Jet	Rear Jet	Insert	Size	Weight
JIE05-3/8	3/8" F	1x0°/NON	5x30°	M6	38x61	0.31kg
JIE06-1/2	1/2" F	1x0°/NON	6x30°	M6	48x78	0.65kg
JIE06-3/4	3/4" F	1x0°/NON	6x30°	M6	64x100	1.43kg
JIE08-1	1" F	1x0°/NON	8x30°	M6	68x110	1.7kg
JIE010-1&1/4	1-1/4" F	1x0°/NON	10x30°	M6	75x110	1.86kg
