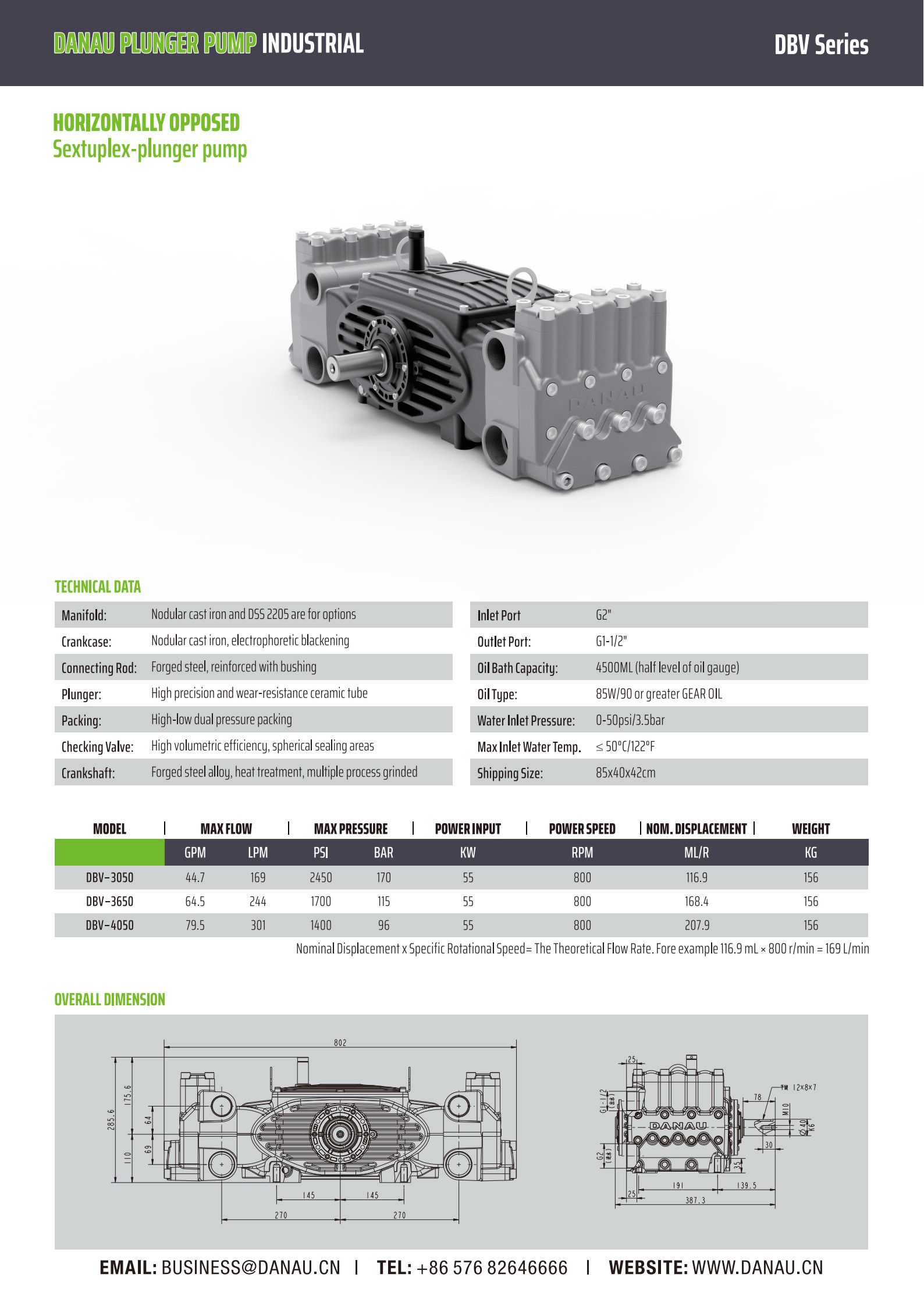

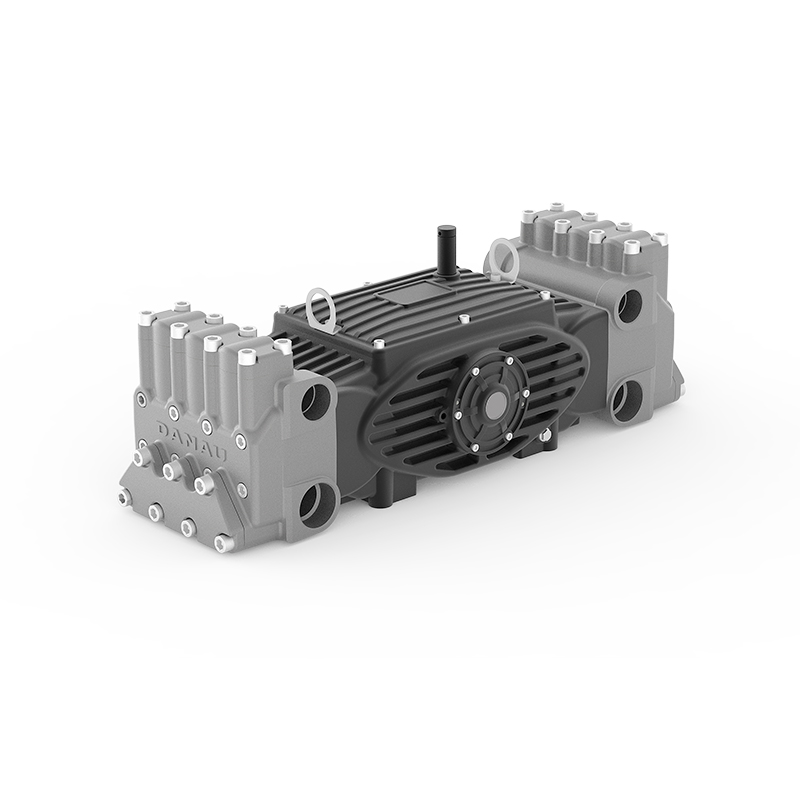

DBV Series Industrial Plunger Pump

The DBV Series Industrial Plunger Pump is a high-pressure crankshaft-driven pump featuring a horizontally opposed six-plunger configuration. It is designed for high-pressure, high-flow industrial applications such as oilfield water injection and steel descaling. The pump’s core structure consists of two symmetrical sets of three plunger assemblies arranged on either side of the crankshaft. The horizontal opposition design balances crankshaft forces, reduces vibration and noise, and enhances operational stability. Additionally, the multi-cylinder configuration significantly increases fluid delivery capacity. The pump provides a stable flow range of 160–305 L/min and operates at pressures between 9–17 MPa.

Get a Quote +

TECHNICAL DATA

Manifold:	Nodular cast iron and DSS 2205are for options
Crankcase:	Nodular cas iron, electrophoreic blackening
Connecting Rod:	Forged steel, reinforced with bushing
Plunger:	High precision and wear-resistant ceramic tube
Packing:	High-low dual pressure packing
Checking Valve:	High volumetric efficiency, spherical sealing areas
Crankshaft:	Forged steel alloy, heat treatment, multiple process grinded
Inlet Port:	G2"
Outlet Port:	G1-1/2"
Oil Bath Capacity:	4500ML(half level of oil gauge)
Oil Type:	85W/90 or greater GEAR OIL
Water Inlet Pressure:	0-0.35Mpa
Max lnlet Water Temp.	≤50℃

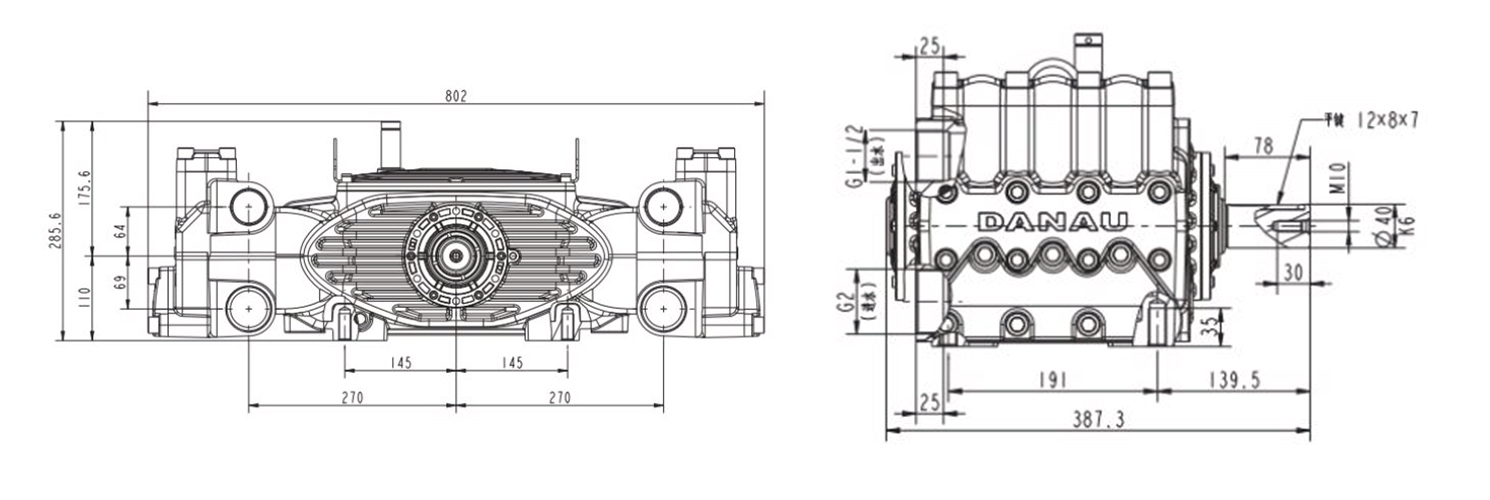

Shipping Size:	85x40x42cm

SPECIFICATION
