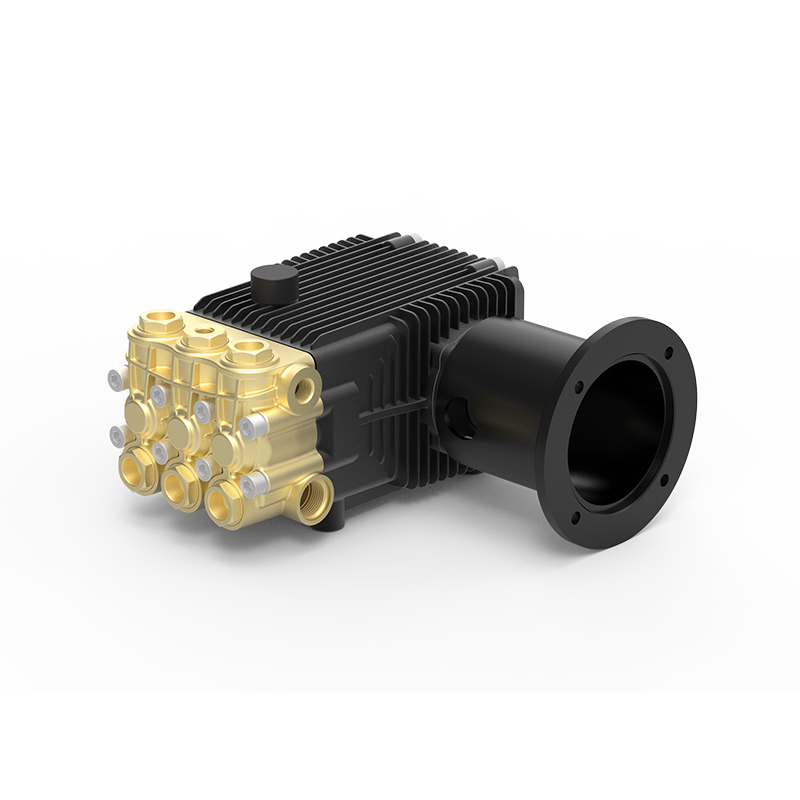

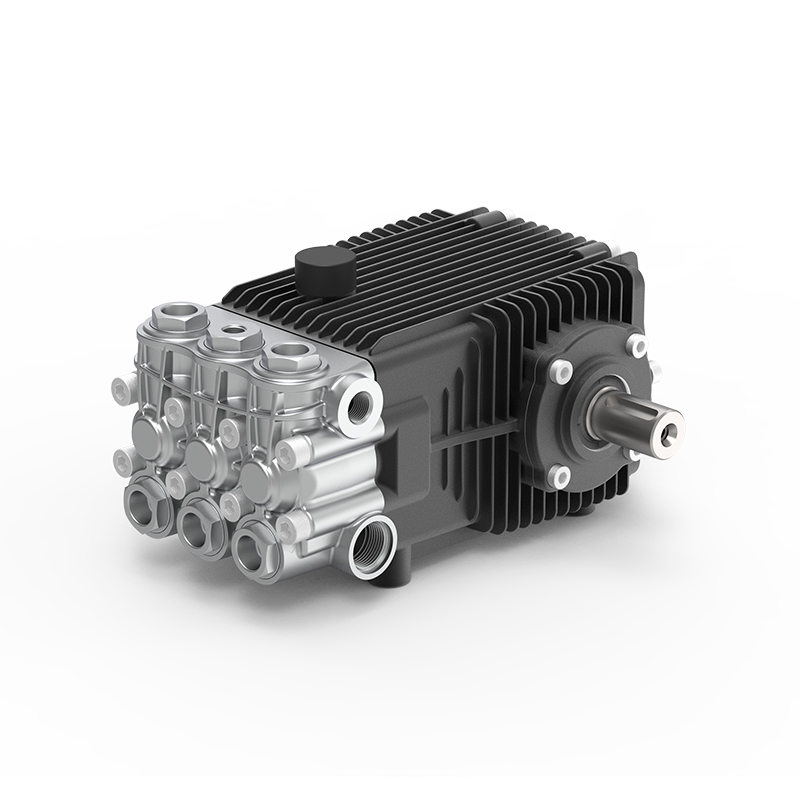

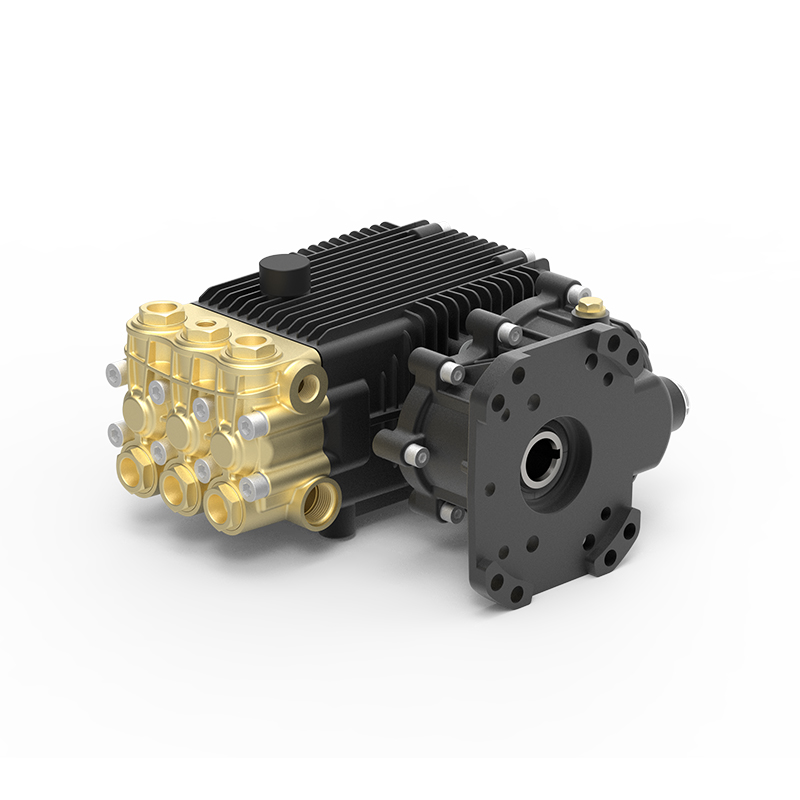

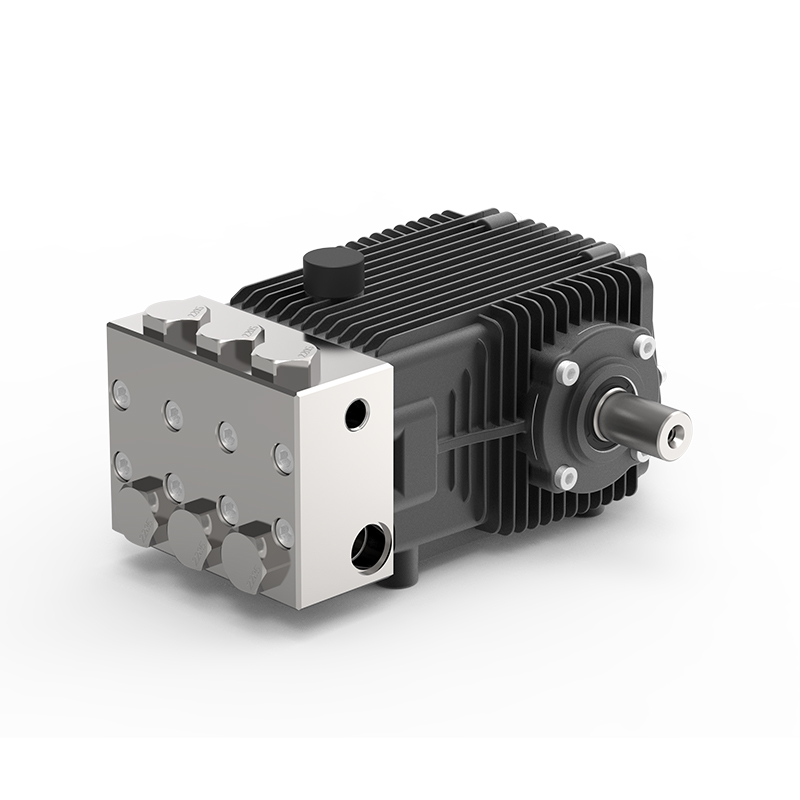

DBF Series Industrial Plunger Pump

DBF Series Industrial Plunger Pump offers multiple connection types to accommodate different power sources. The precision die-cast aluminum alloy crankcase provides enhanced strength and anodize treatment to prevent corrosion. Pump heads are available in forged brass, stainless steel, duplex steel, or nickel-plated options, while plunger choices include ceramic-coating or solid ceramic plungers. The dual-seal system, combined with inlet and outlet check valves, ensures efficient hydraulic operation. Various accessories can be connected to the pump head, maintaining a stable flow range of 16–64 L/min and a pressure range of 10–50 MPa.

Get a Quote +

TECHNICAL DATA

Manifold:	Brass forged, nodular cast iron and DS52205 are for options
Crankcase:	Die-cast aluminum alloy, anodized
Connecting Rod:	Split-type aluminum alloy
Plunger:	High precision and wear-resistant ceramic tube
Packing:	High-low dual pressure packing
Checking Valve:	High volumetric efficiency, spherical sealing areas
Crankshaft:	Forged steel alloy, heat treatment, multiple process grinded
Inlet Port:	G3/4”,G1"(DBF2824)
Outlet Port:	G3/8”,G1/2"(DBF2824)
Oil Bath Capacity:	1050mL(half level of oil gauge)
Oil Type:	85W/90 or greater GEAR OIL
Water Inlet Pressure:	0-0.35Mpa
Max Inlet Water Temp.	≤50℃
Shipping Size:	38.5x33.5x31cm

SPECIFICATION

MODEL: DBF-1521

Max Flow(L/m, GPM)	16, 4.22
Max Pressure(MPa, PSI)	47, 6800
Power Supply(kW)	15
Input Speed(rpm)	1450
Nominal Displacement(ml/rev)	11.0
Product Weight(kg)	14

MODEL: DBF-1821

Max Flow(L/m, GPM)	23.3
Max Pressure(MPa, PSI)	48
Power Supply(kW)	22
Input Speed(rpm)	1450
Nominal Displacement(ml/rev)	16.1
Product Weight(kg)	14

MODEL: DBF-2221

Max Flow(L/m, GPM)	34.7
Max Pressure(MPa, PSI)	24
Power Supply(kW)	18.5
Input Speed(rpm)	1450
Nominal Displacement(ml/rev)	23.9
Product Weight(kg)	14

MODEL: DBF-2224

Max Flow(L/m, GPM)	39
Max Pressure(MPa, PSI)	23
Power Supply(kW)	18.5
Input Speed(rpm)	1450
Nominal Displacement(ml/rev)	27.3
Product Weight(kg)	14

MODEL: DBF-2524

Max Flow(L/m, GPM)	50
Max Pressure(MPa, PSI)	18
Power Supply(kW)	18.5
Input Speed(rpm)	1450
Nominal Displacement(ml/rev)	35.3
Product Weight(kg)	14

MODEL: DBF-2821

Max Flow(L/m, GPM)	50
Max Pressure(MPa, PSI)	16
Power Supply(kW)	18.5
Input Speed(rpm)	1450
Nominal Displacement(ml/rev)	38.8
Product Weight(kg)	14

MODEL: DBF-2824

Max Flow(L/m, GPM)	64
Max Pressure(MPa, PSI)	15
Power Supply(kW)	18.5
Input Speed(rpm)	1450
Nominal Displacement(ml/rev)	44.3
Product Weight(kg)	14
