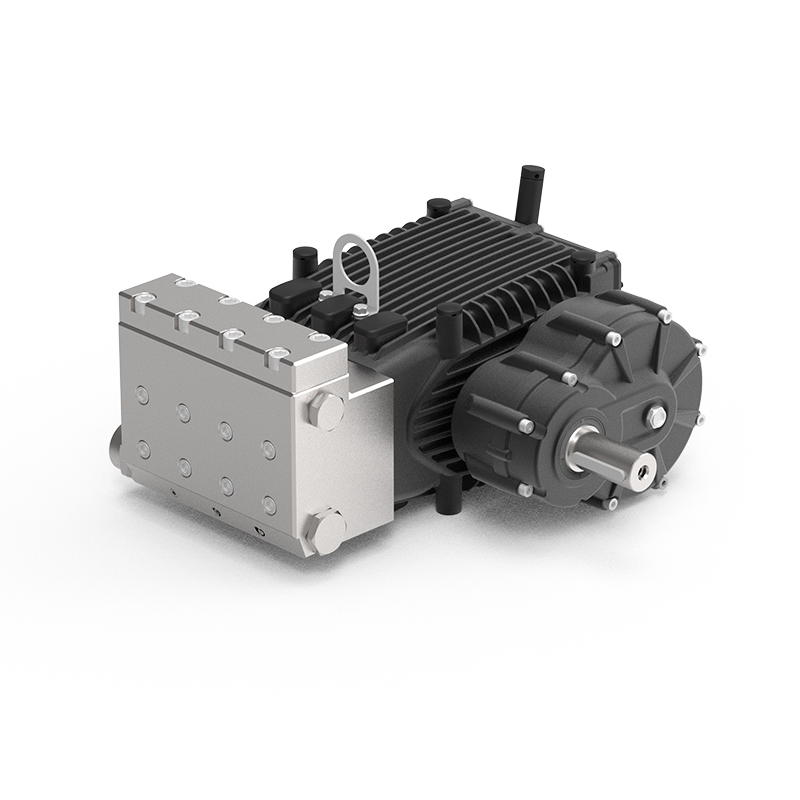

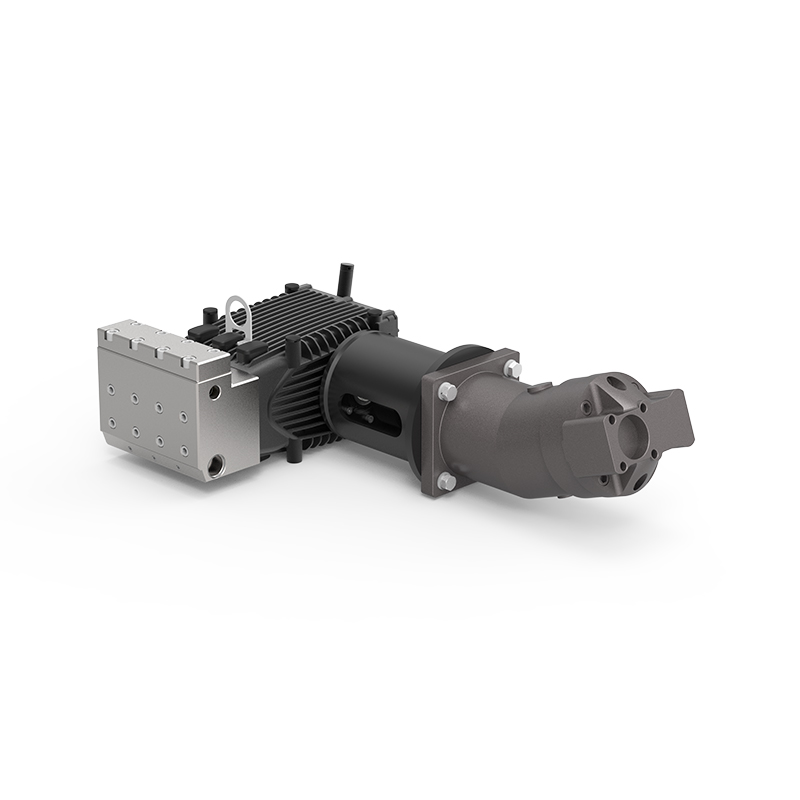

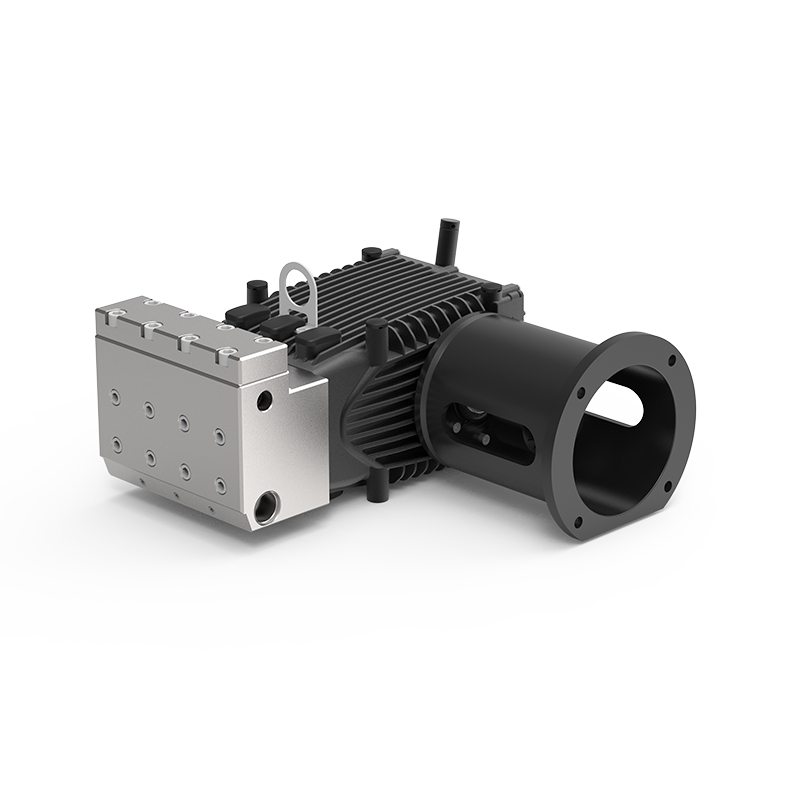

DBG Series Industrial Plunger Pump

The DBG Series Industrial Plunger Pump offers multiple connection types to accommodate different power sources. Its precision die-cast aluminum alloy crankcase provides enhanced strength and anodize treatment to prevent corrosion. Pump heads are available in stainless steel, duplex steel, or nickel-plated options. High-performance ceramic plungers are optionally available, featuring excellent hardness, wear resistance, high-temperature tolerance, and corrosion resistance. The dual-seal system, along with inlet and outlet check valves, ensures efficient hydraulic performance. Various accessories can be connected to the pump head, supporting a stable flow range of 27–95 L/min and a pressure range of 20–80 MPa.

Get a Quote +

TECHNICAL DATA

Manifold:	Stainless steel 420and DS5 2205 are for options
Crankcase:	Die-cast aluminum alloy, anodized
Connecting Rod:	Forged steel, reinforced with bushing
Plunger:	High precision and wear-resistance ceramic tube
Packing:	High-low dual pressure packing
Checking Valve:	High volumetric efficiency, spherical sealing areas
Crankshaft:	Forged steel alloy, heat treatment, multiple process grinded
Inlet Port:	M38x1.5(DBG1650-G314”)(DBG1850-617)
Outlet Port:	G314”(DBG1650-612”)
Oil Bath Capacity:	3800mL(half level of oil gauge)
Oil Type:	85W/90 or greater GEAR OIL
Water Inlet Pressure:	0-0.35Mpa
Max Inlet Water Tem.	≤50°C
Shipping Size:	59×41.5x36cm

SPECIFICATION

MODEL: DBG-1650

Max Flow(L/m, GPM)	27
Max Pressure(MPa, PSI)	80
Power Supply(kW)	40
Input Speed(rpm)	900
Nominal Displacement(ml/rev)	30
Product Weight(kg)	72

MODEL: DBG-1850

Max Flow(L/m, GPM)	34.3
Max Pressure(MPa, PSI)	60
Power Supply(kW)	40
Input Speed(rpm)	900
Nominal Displacement(ml/rev)	38.1
Product Weight(kg)	72

MODEL: DBG-2250

Max Flow(L/m, GPM)	51.3
Max Pressure(MPa, PSI)	42
Power Supply(kW)	40
Input Speed(rpm)	900
Nominal Displacement(ml/rev)	57
Product Weight(kg)	72

MODEL: DBG-2550

Max Flow(L/m, GPM)	66.2
Max Pressure(MPa, PSI)	32
Power Supply(kW)	40
Input Speed(rpm)	900
Nominal Displacement(ml/rev)	73.5
Product Weight(kg)	72

MODEL: DBG-2850

Max Flow(L/m, GPM)	83
Max Pressure(MPa, PSI)	26
Power Supply(kW)	40
Input Speed(rpm)	900
Nominal Displacement(ml/rev)	92.2
Product Weight(kg)	72

MODEL: DBG-3050

Max Flow(L/m, GPM)	95.4
Max Pressure(MPa, PSI)	23
Power Supply(kW)	40
Input Speed(rpm)	900
Nominal Displacement(ml/rev)	106
Product Weight(kg)	72
