High Quality AUTO Swinging Motorless WindBlowing Fog Cannon

Home / Products / Misting Fog Maker / Motorless Wind Blowing Fog Cannon / AUTO Swinging Motorless WindBlowing Fog Cannon
  • AUTO Swinging Motorless WindBlowing Fog Cannon

    WDFC-SA50

Motorless Wind Blowing Fog Cannon

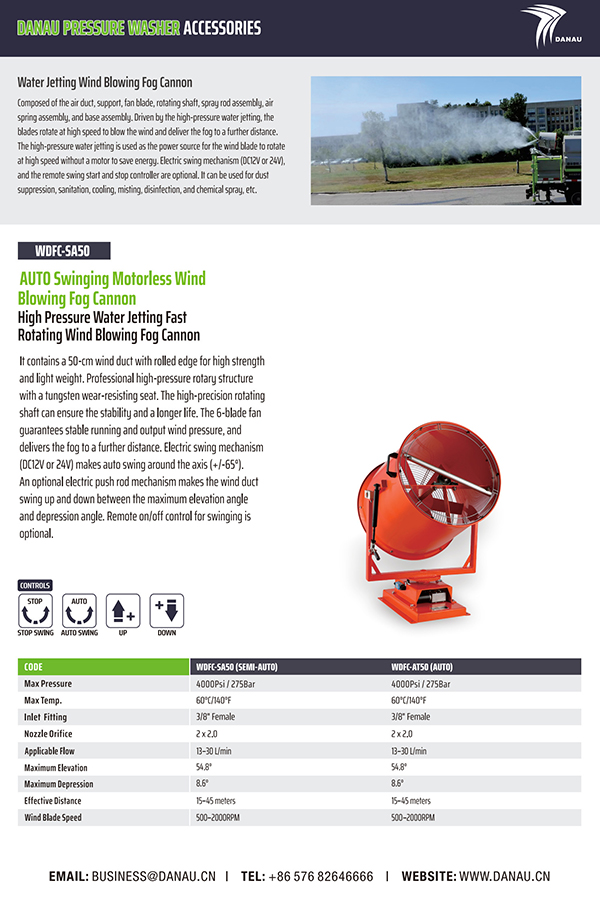

AUTO Swinging Motorless WindBlowing Fog Cannon

Code: WDFC-SA50

High Pressure Water Jetting Fast Rotating Wind Blowing Fog Cannon

It contains a 50-cm wind duct with rolled edge for high strength and light weight. Professional high-pressure rotary structure with a tunqsten wear-resistint seat. The hiqh-precision rotating shaft can ensure the stability and a longer life. The 6-blade fan guarantees stable running and output wind pressure, and delivers the fog to a further distance. Electric swing mechanism(DC12V or 24V) makes auto swing around the axis (+/-65").
An optional electric push rod mechanism makes the wind duct swing up and down between the maximum elevation angle and depression angle. Remote on/off control for swing inq is optional.

Get a Quote +

SPECIFICATION

MODEL: WDFC-SA50 (SEMI-AUTO)

CODE WDFC-SA5O (SEMI-AUTO)
Max Pressure

4000Psi/275Bar

Max Temp. 60°C/140°F
Inlet Fitting 3/8"Female
Nozzle Orifice 2x2.0
Applicable Flow 13-30L/min
Maximum Elevation 54.8°
Maximum Depression 8.6°
Effective Distance 15-45 meters
Wind Blade Speed 500-2000RPM


MODEL: WDFC-AT50 (AUTO)

CODE WDFC-AT50 (AUTO)
Max Pressure

4000Psi/275Bar

Max Temp. 60°C/140°F
Inlet Fitting 3/8"Female
Nozzle Orifice 2x2.0
Applicable Flow 13-30L/min
Maximum Elevation 54.8°
Maximum Depression 8.6°
Effective Distance 15-45 meters
Wind Blade Speed 500-2000RPM
