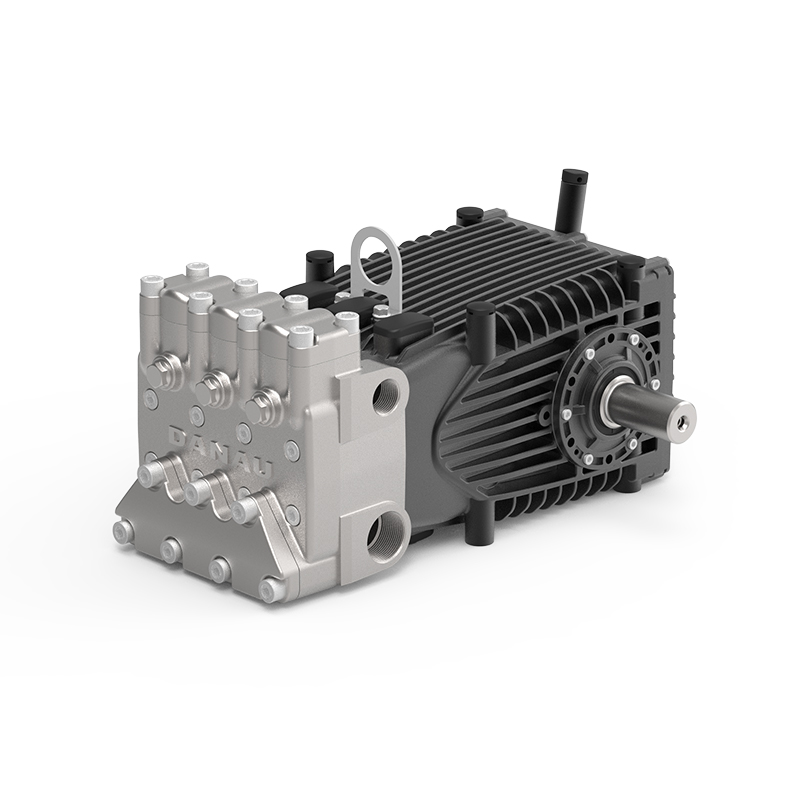

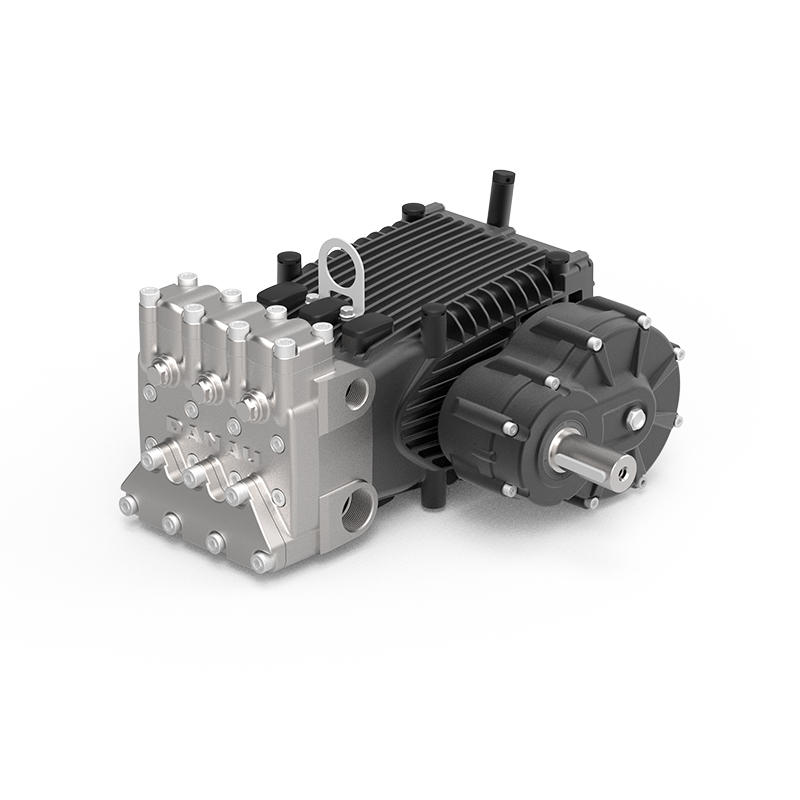

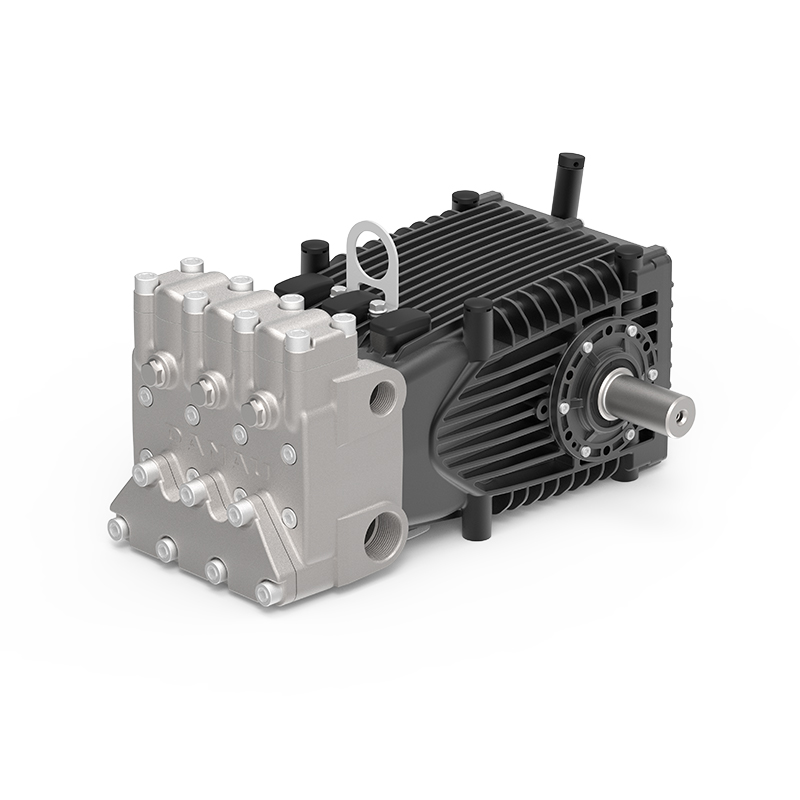

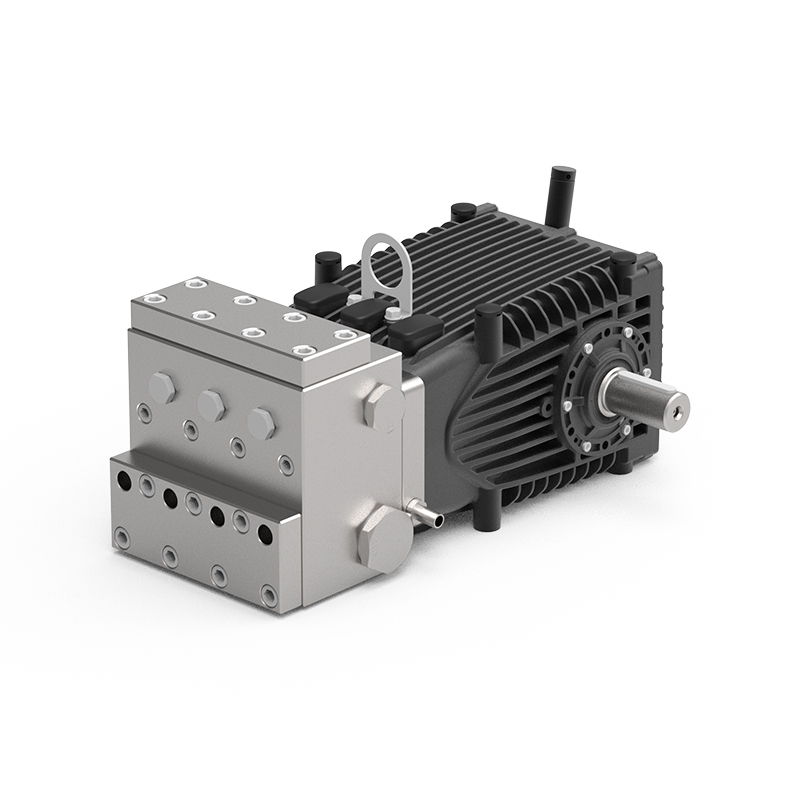

DBH Series Industrial Plunger Pump

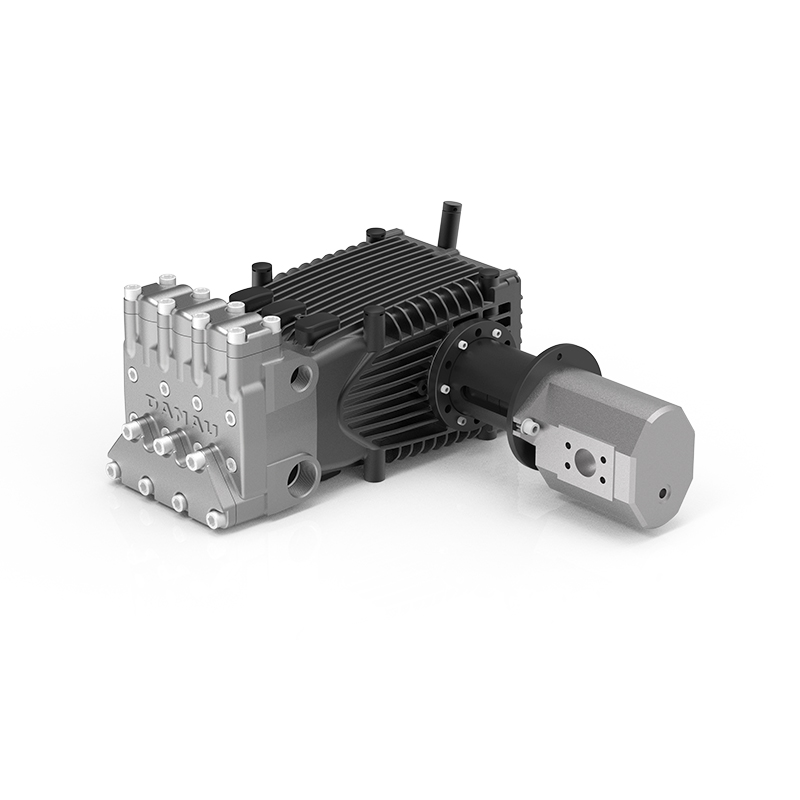

DBH Series Industrial Plunger Pump offers multiple types of connection options to accommodate different power sources. The precision die-cast aluminum alloy crankcase provides enhanced strength and anodize treatment to prevent corrosion. Pump heads are available in forged brass, stainless steel, duplex steel, or nickel-plated variants. The high-performance ceramic plungers deliver superior hardness, wear resistance, high-temperature resistance, and corrosion resistance. A dual-seal system, along with inlet and outlet check valves, ensures efficient hydraulic operation. Various accessories can be connected to the pump head, maintaining a stable flow range of 130–170 L/min and a pressure range of 10–14 MPa.

Get a Quote +

PREV：DBR Series Industrial Plunger Pump
NEXT：DBG Series Industrial Plunger Pump

TECHNICAL DATA
SPECIFICATION
APPLICATIONS
DOCUMENTS

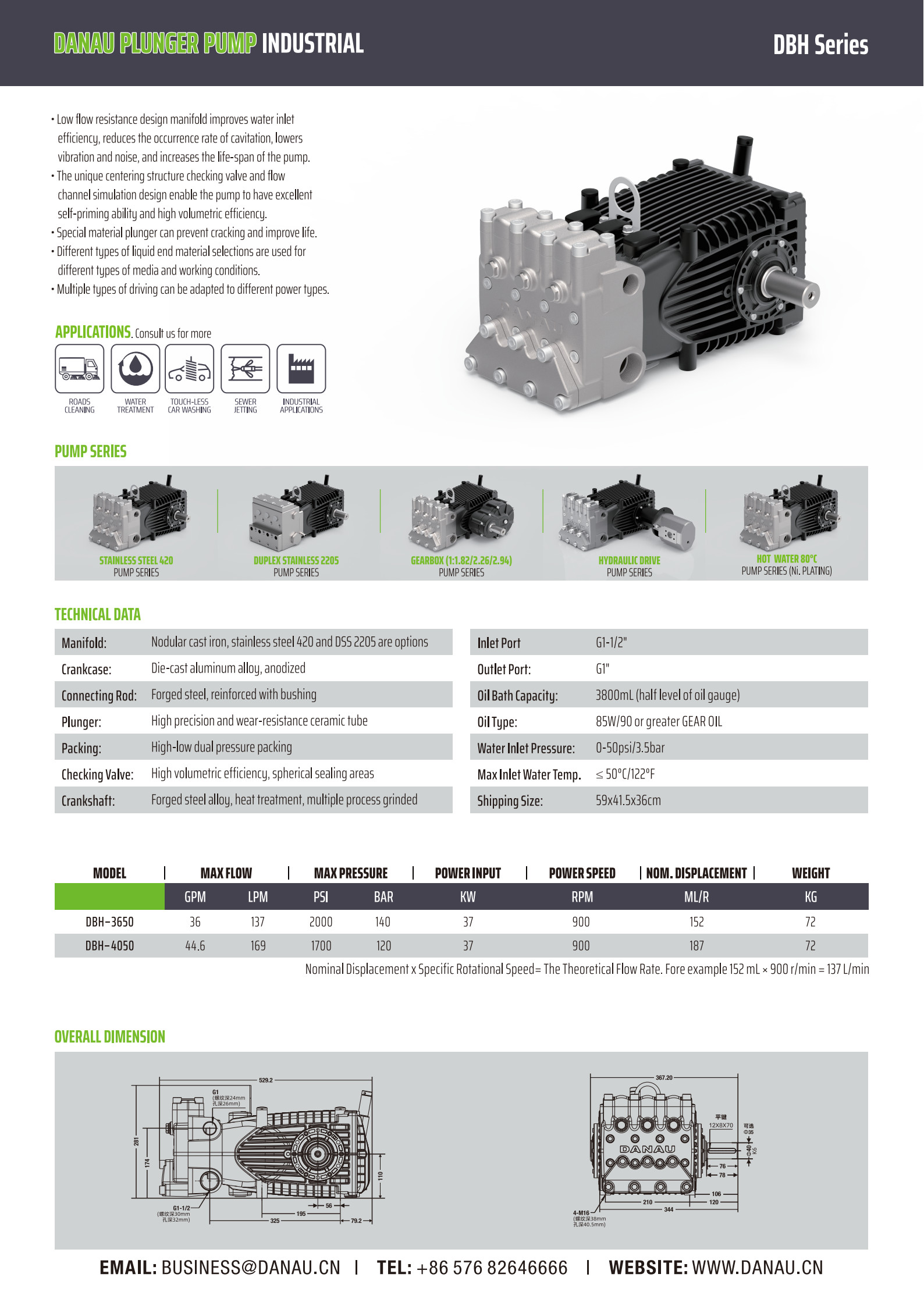

TECHNICAL DATA

Manifold:	Nodular cstiron,tainlesstel420 and D552205are options
Crankcase:	Die-cast aluminum, anodized
Connecting Rod:	Forged steel, reinforced with bushing
Plunger:	High precision and wear-resistant ceramic tube
Packing:	High-low dual pressure packing
Checking Valve:	High volumetric efficiency, spherical elongated areas
Crankshaft:	Forged steel, heat treatment, multiple-process grinded
Inlet Port:	G1-/2"
Outlet Port:	G1"
Oil Bath Capacity:	3800mL(half level of oil gauge)
Oil Type:	85W/90 or greater GEAROIL
Water Inlet Presure:	0-0.35Mpa
Max Inlet Water Temp.	≤50°C
Shipping Size:	59x41.5x36cm
