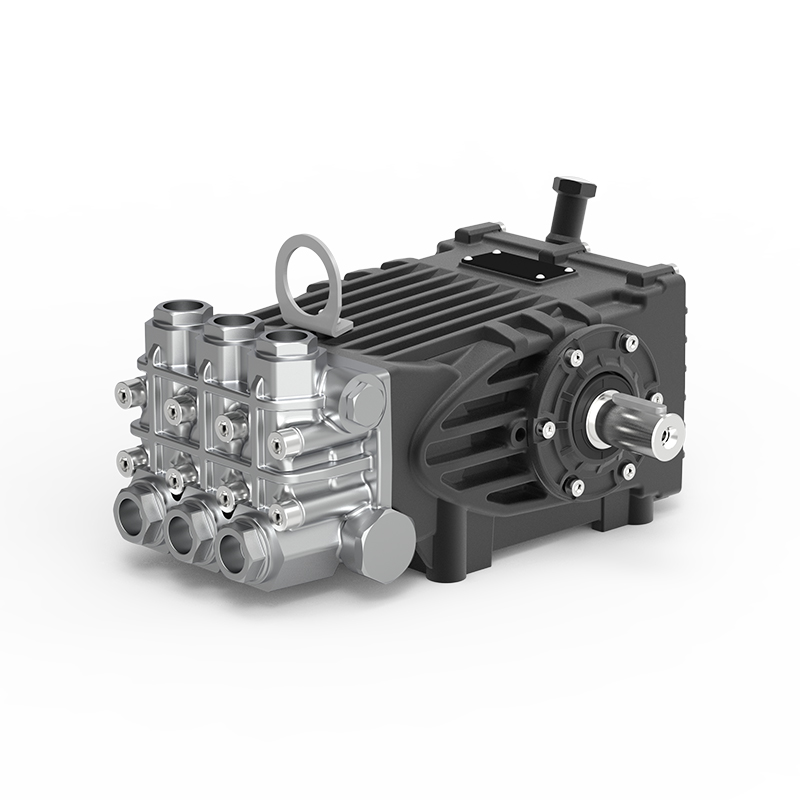

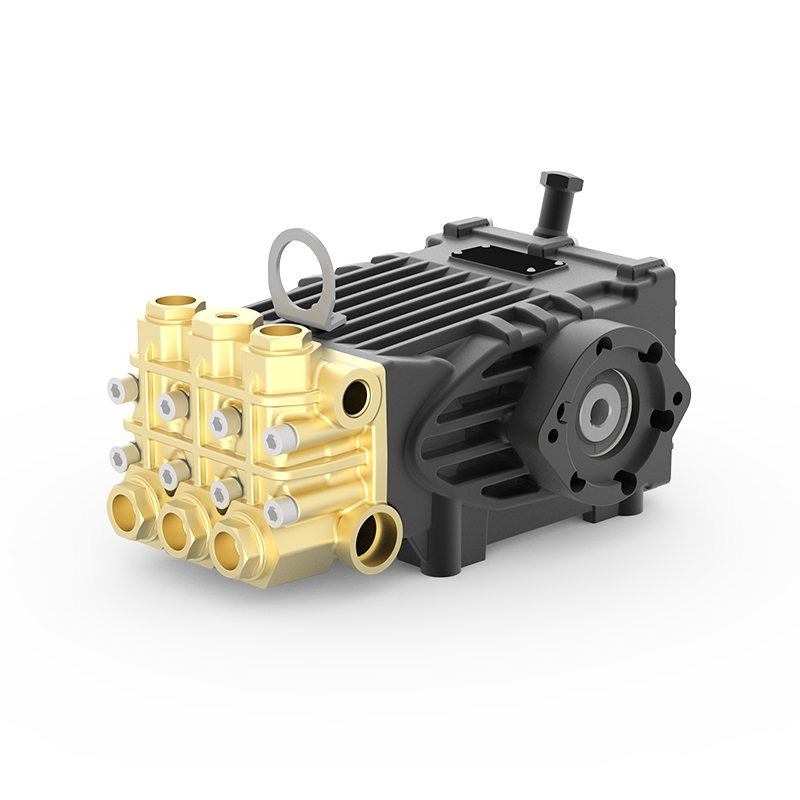

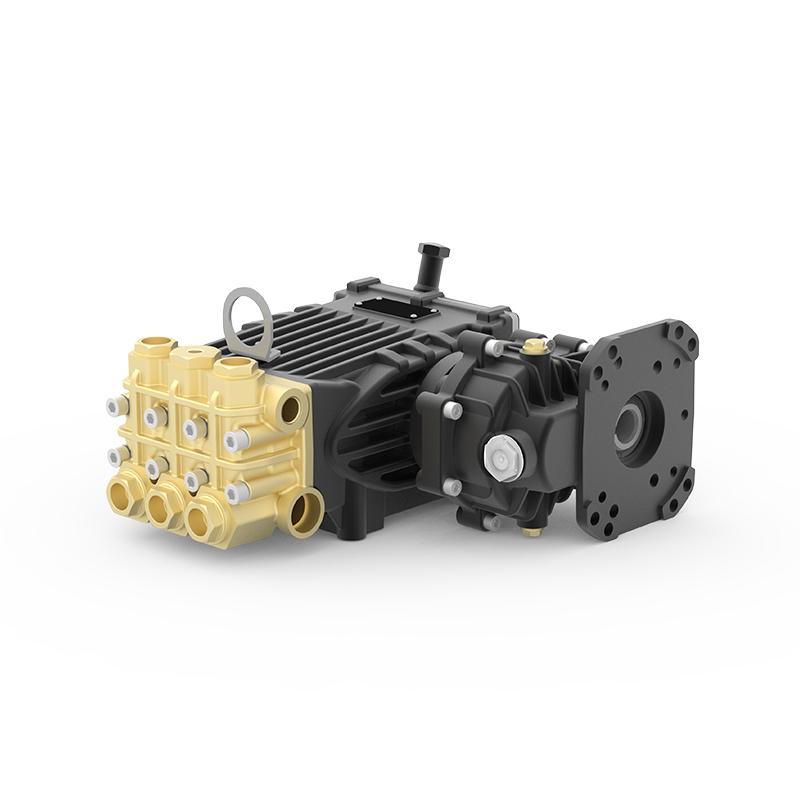

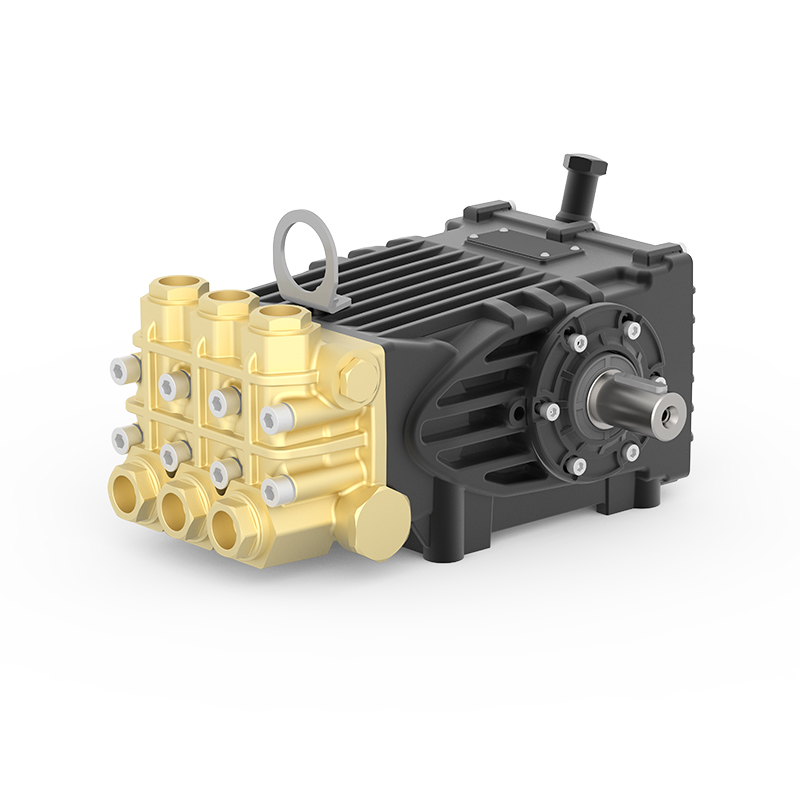

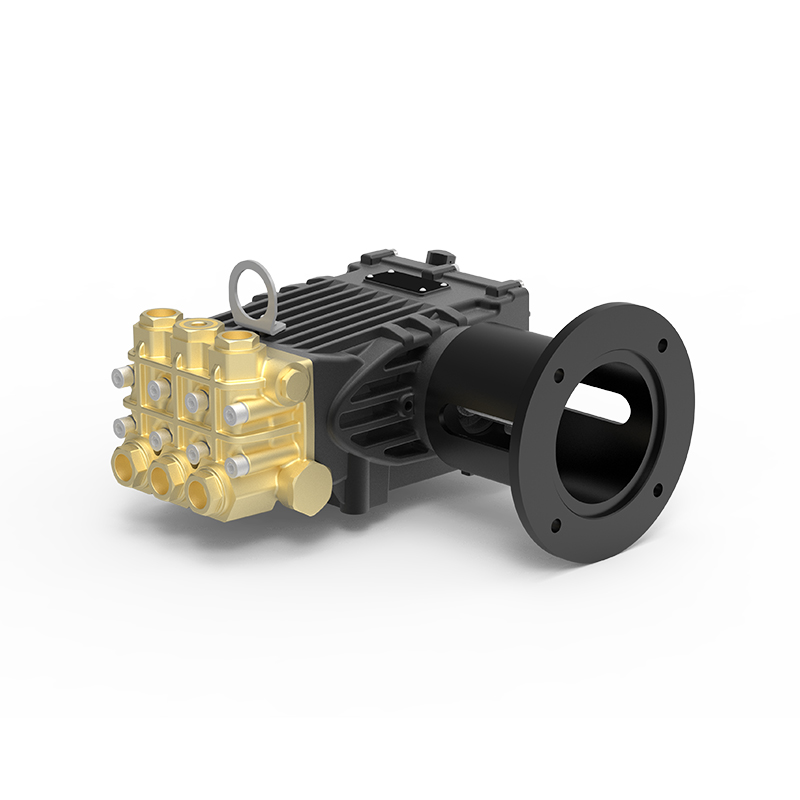

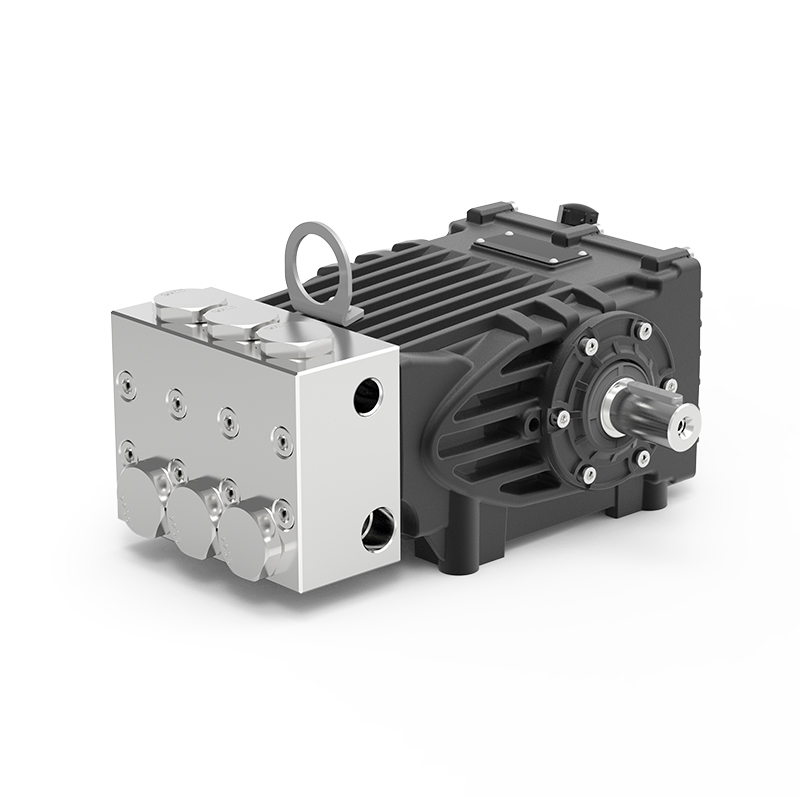

DBP Series Industrial Plunger Pump

The DBP Series Industrial Plunger Pumps offer multiple connection types to accommodate different power sources. The precision die-cast aluminum alloy crankcase provides enhanced strength and anodize treatment to prevent corrosion. Pump heads are available in forged brass, stainless steel, duplex steel, or nickel-plated options. High-performance ceramic plungers deliver superior hardness, wear resistance, high-temperature tolerance, and corrosion resistance. The dual-seal system, combined with unidirectional inlet and outlet check valves, ensures efficient hydraulic operation. Various accessories can be connected to the pump head, providing a stable flow range of 60–87 L/min and a pressure range of 10–17 MPa.

Get a Quote +

PREV：DBF Series Industrial Plunger Pump
NEXT：DBR Series Industrial Plunger Pump

TECHNICAL DATA
SPECIFICATION
APPLICATIONS

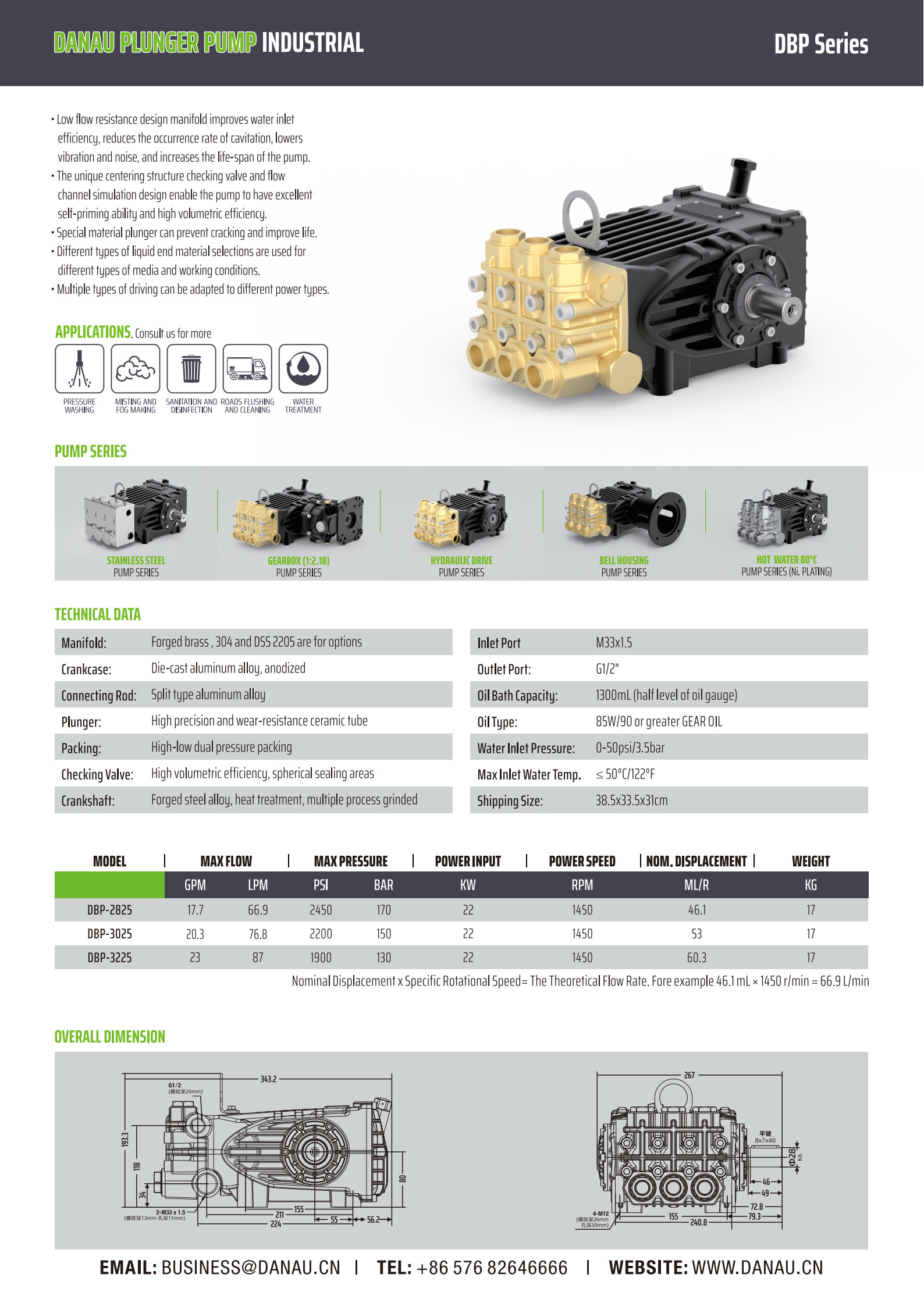

DOCUMENTS

TECHNICAL DATA

Manifold:	Forged brass,304 and D552205 are for options
Crankcase:	Die-cast aluminum alloy, anodized
Connecting Rod:	Split-type aluminum alloy
Plunger:	High precision and wear-resistant ceramic tube
Packing:	High-low dual pressure packing
Checking Valve:	High volumetric efficiency, spherical sealing areas
Crankshaft:	Forged steel alloy, heat treatment, multiple process grinded
Inlet Port	M33x1.5
Outlet Port:	G1/2"
Dil ath apacity:	1300mL(half level of oil gauge)
Dil Type:	85W/90 or greater GEAR OIL
Water Inlet Pressure:	0-0.35Mpa
Max Inlet Water Temp.	≤50°C
Shiping Size:	38.5x33.5x31cm
