High Quality DBN Series Industrial Plunger Pump

Home / Products / Industrial Plunger Pump / Industrial Plunger Pump / DBN Series Industrial Plunger Pump
  • DBN Series Industrial Plunger Pump

    DIRECT DRIVE

  • DBN Series Industrial Plunger Pump

    GEARBOX (1:1.87/1.23)

Industrial Plunger Pump

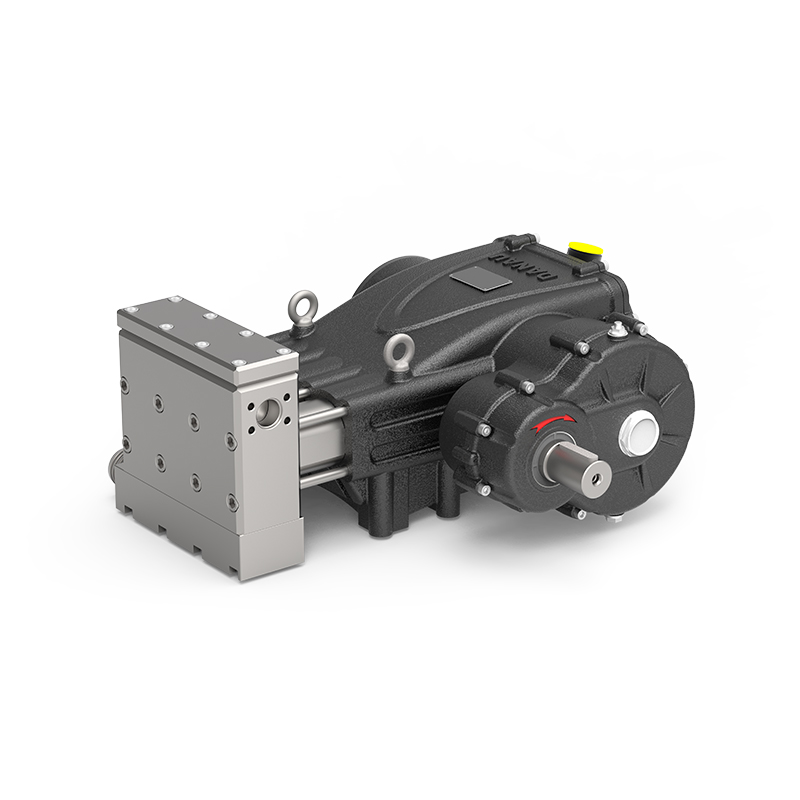

DBN Series Industrial Plunger Pump

The DBN series industrial plunger pumps feature multiple connection types, making them compatible with a variety of power sources. The crankcase is precision-cast from high-strength alloy cast iron, while the crankshaft is forged from high-strength alloy steel to ensure sufficient material strength. Stainless steel and duplex steel options are available. High-performance ceramic plungers are used, offering excellent hardness, wear resistance, high-temperature resistance, and corrosion resistance. The dual-seal system, combined with inlet and outlet check valves, ensures efficient operation of the hydraulic end. Various accessories can be connected to the pump head, providing a stable flow range of 130–330 L/min and a pressure range of 13–30 MPa.

Get a Quote +
PREV：DBV Series Industrial Plunger Pump
NEXT：DBS Series Industrial Plunger Pump

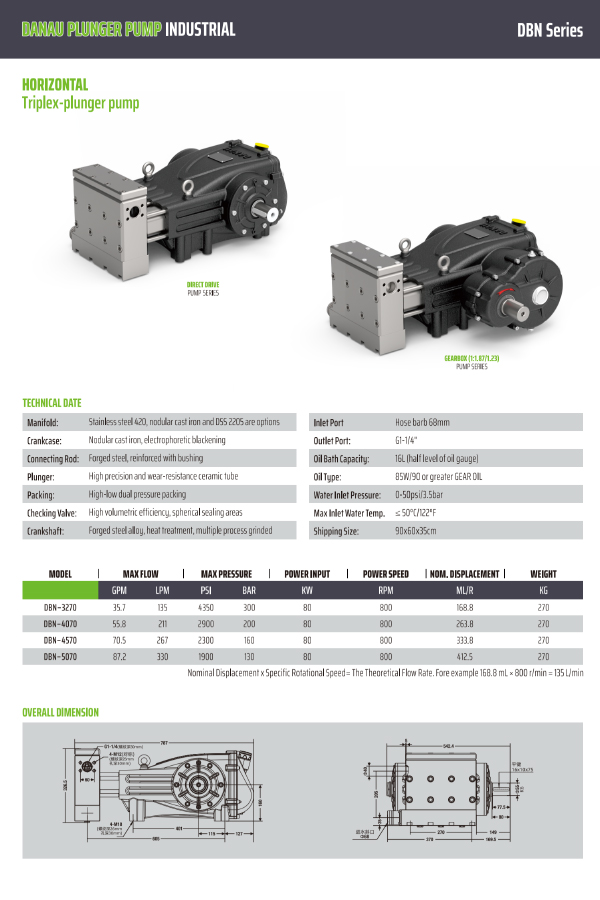

TECHNICAL DATA

Manifold: Stainless steel 420, nodular cas iron and DS5 2205 are options
Crankcase: Nodular cast iron,eletrophoretic blakening
Connecting Rod: Forged steel, reinforced with bushing
Plunger: High precision and wear-resistant ceramic tube
Packing: High-low dual pressure packing
Checking Valve: High volumetric efficiency, spherical sealing areas
Crankshaft: Forged selallu, heat treatment, muliple process grinded
Inlet Port Hose barb 68mm
Outlet Port: G1-1/4"
Oil Bath Capacity: 16L(half level of oil gauge)
Oil Type: 85W/90 or greater GEAR OIL
Water Inlet Pressure: 0-0.35Mpa
Max Inlet WaterTemp. ≤50°C
Shipping Size: 90x60x35cm

SPECIFICATION

MODEL: DBN-3270

Max Flow(L/m, GPM) 135
Max Pressure(MPa, PSI) 30
Power Supply(kW) 80
Input Speed(rpm) 800
Nominal Displacement(ml/rev) 168.8
Product Weight(kg) 270



MODEL: DBN-4070

Max Flow(L/m, GPM) 211
Max Pressure(MPa, PSI) 20
Power Supply(kW) 80
Input Speed(rpm) 800
Nominal Displacement(ml/rev) 263.8
Product Weight(kg) 270



MODEL: DBN-4570

Max Flow(L/m, GPM) 267
Max Pressure(MPa, PSI) 16
Power Supply(kW) 80
Input Speed(rpm) 800
Nominal Displacement(ml/rev) 333.8
Product Weight(kg) 270

MODEL: DBN-5070

Max Flow(L/m, GPM) 330
Max Pressure(MPa, PSI) 13
Power Supply(kW) 80
Input Speed(rpm) 800
Nominal Displacement(ml/rev) 412.5
Product Weight(kg) 270

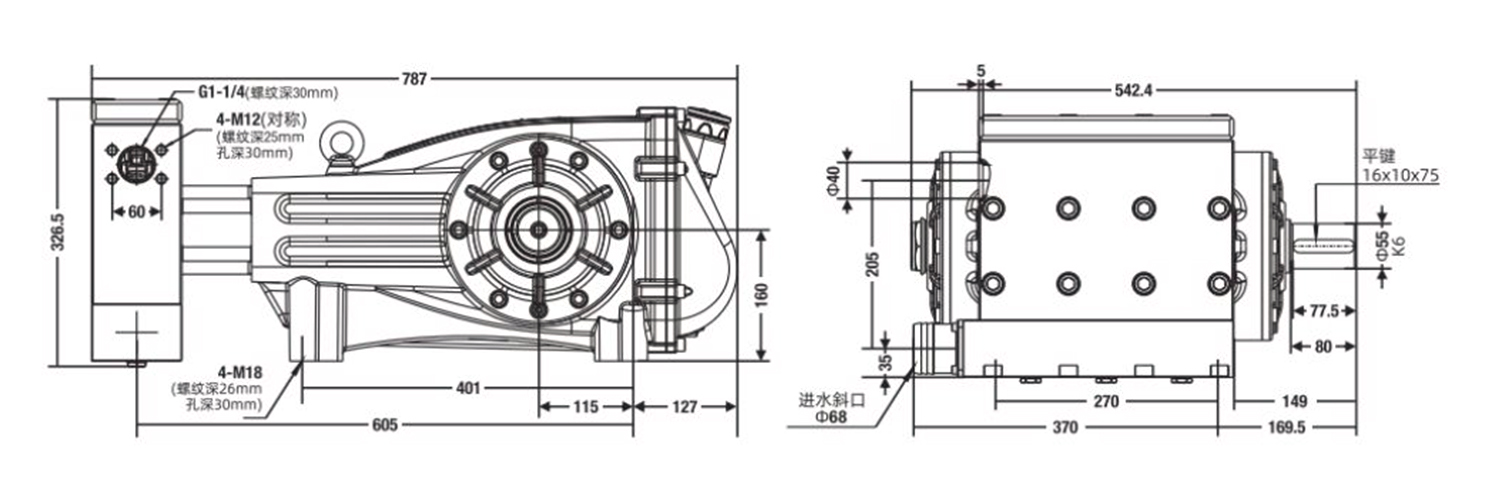

DIMENSION
