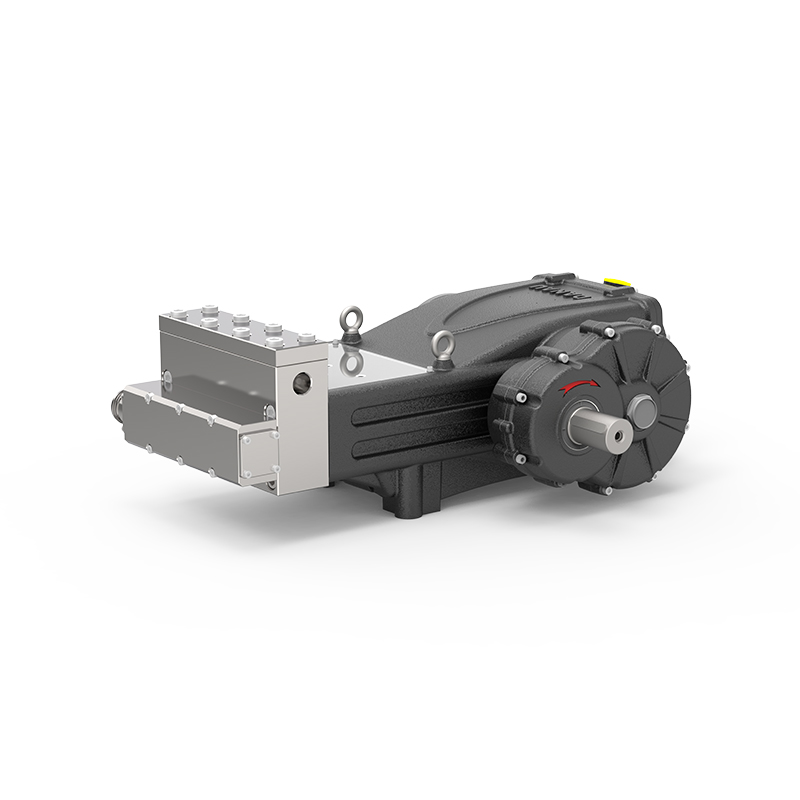

DBS Series Industrial Plunger Pump

The DBS Series Industrial Plunger Pump offers multiple connection types to accommodate various power sources. It is suitable for high-pressure applications such as industrial cleaning, mining slurry transfer, and large irrigation.
The crankcase is precision-cast from high-strength alloy cast iron, while the crankshaft is forged from high-strength alloy steel to ensure sufficient material strength. Stainless steel and duplex stainless steel options are available.
High-performance ceramic plungers are used, providing superior hardness, wear resistance, high-temperature tolerance, and corrosion resistance. The dual-seal system, combined with inlet and outlet check valves, ensures efficient hydraulic operation.
Various accessories can be connected to the pump head, offering a stable flow range of 190–500 L/min and a pressure range of 13–35 MPa.

Get a Quote +

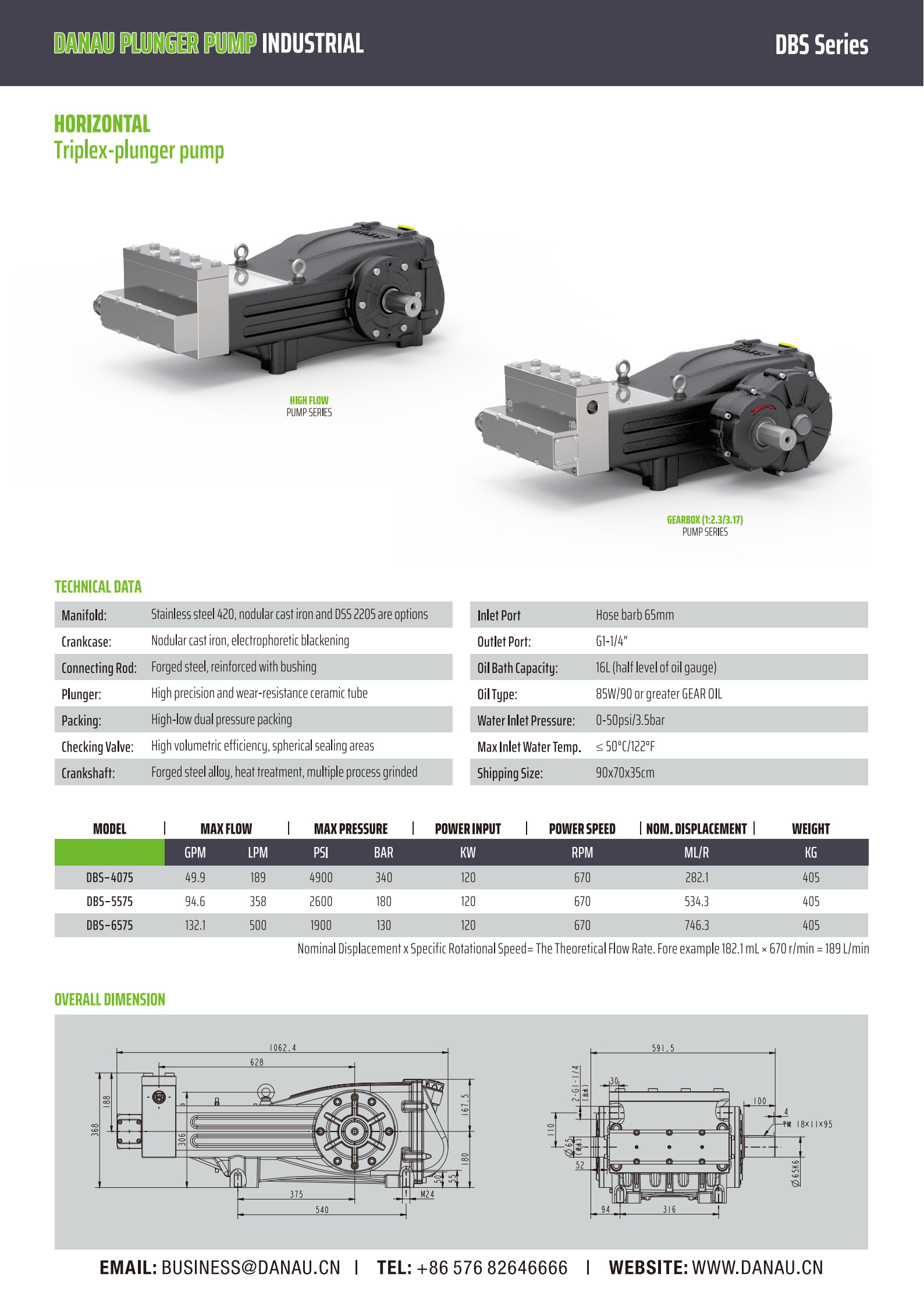

TECHNICAL DATA

Manifold:	Stainless 420, nodular cast iron and DS5 2205 are options
Crankcase:	Nodular cast iron, electrophoretic blackening
Connecting Rod:	Forged steel, reinforced with bushing
Plunger:	High precision and wear-resistant ceramic tube
Packing:	High-low dual pressure packing
Checking Valve:	High volumetric efficiency, spherical sealing areas
Crankshaft:	Forged steel alloy, heat treatment, muliple process grinded.
Inlet Port:	Hose barb 65mm
Outlet Port:	G1-1/4”
Oil Bath Capacity:	16L(half level of oil gauge)
Oil Type:	85W/90 or greater GEAR OIL
Water Inlet Pressure:	0-0.35Mpa
Max lnlet Water Temp.	≤50℃
Shipping Size:	90x70x35cm

SPECIFICATION
