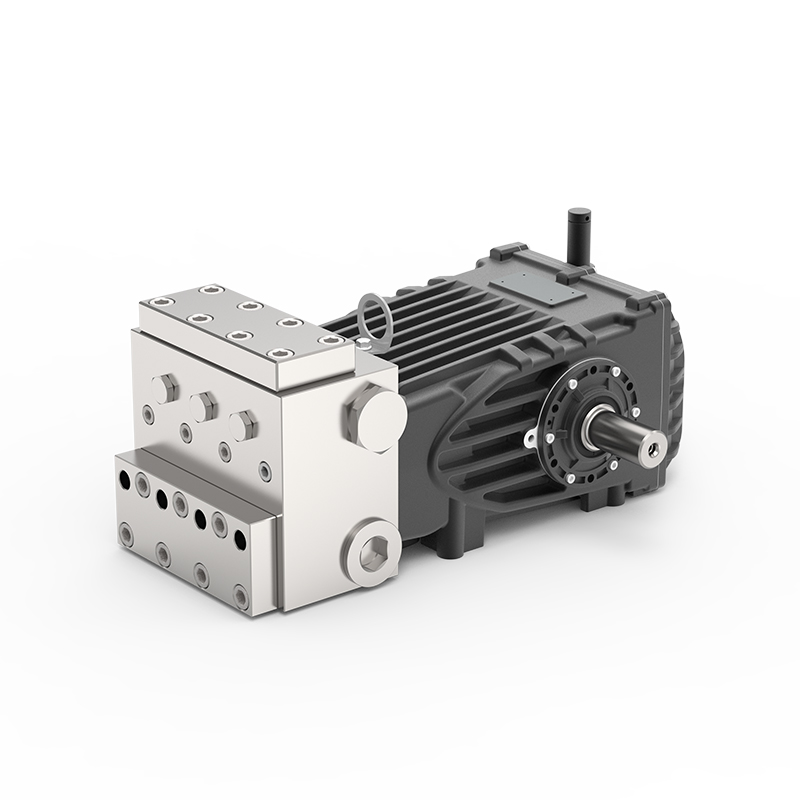

DBU Series Industrial Plunger Pump

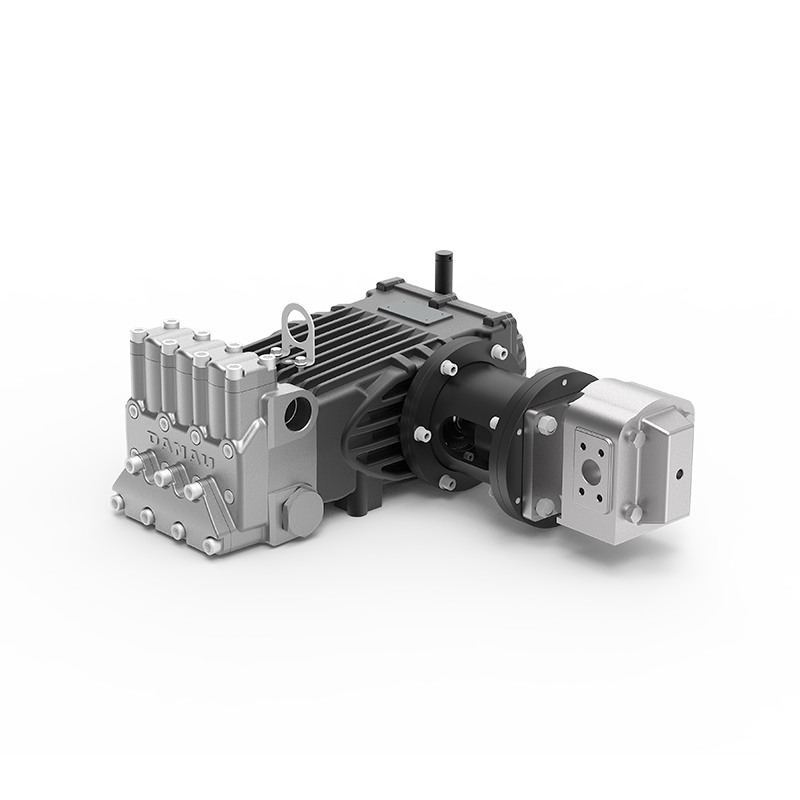

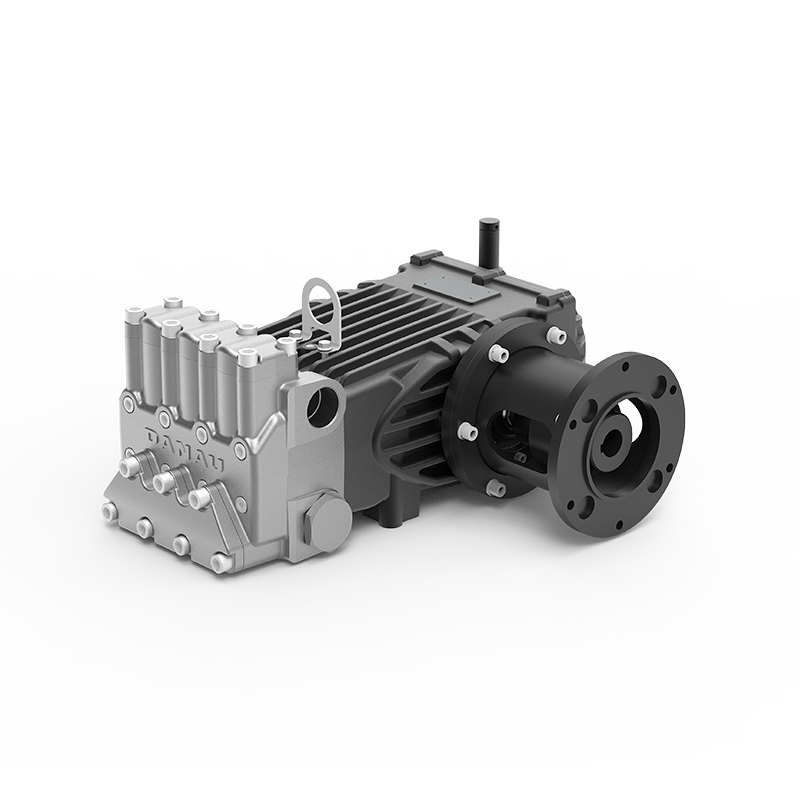

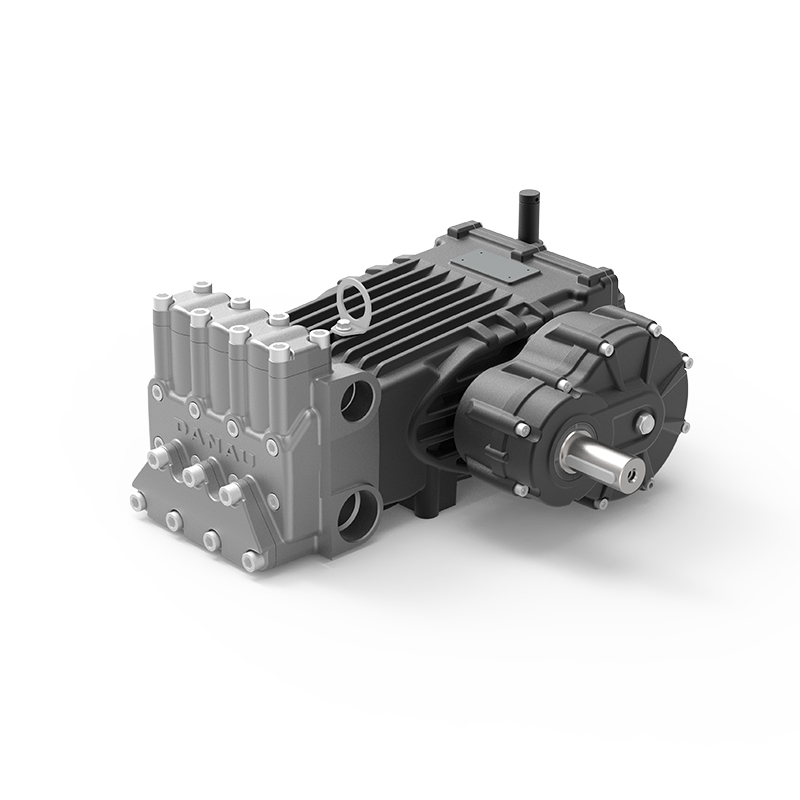

The DBU Series Industrial Plunger Pump offers multiple connection types to accommodate different power sources. The crankcase is precision-cast from high-strength alloy cast iron, ensuring structural durability. The crankshaft is forged from high-strength alloy steel, providing sufficient material strength for long-term operation. Pump heads are available in stainless steel, duplex steel, or nickel-plated options.

High-performance ceramic plungers are employed, offering superior hardness, wear resistance, high-temperature tolerance, and corrosion resistance. The pump features a dual-seal system, and the inlet and outlet check valves ensure efficient hydraulic operation. Various accessories can be connected to the pump head, enabling a stable flow rate range of 120–230 L/min and a pressure range of 10–23 MPa.

Get a Quote +

PREV：DBG Series Industrial Plunger Pump
NEXT：DBV Series Industrial Plunger Pump

TECHNICAL DATA
SPECIFICATION
APPLICATIONS
DOCUMENTS

TECHNICAL DATA

Manifold:	Nodular cast iron and D552205 are for options
Crankcase:	Nodular cast iron, electrophoretic blackening
Connecting Rod:	Forged steel, reinforced with bushing
Plunger:	High precision and wear-resistant ceramic tube
Packing:	High-low dual pressure packing
Checking Valve:	High volumetric efficiency, spherical sealing areas
Crankshaft:	Forged steel alloy, heat treatment, multiple processes grinded
Inlet Port:	G2"
Outlet Port:	G1-1/2"
Oil Bath Capacity:	4500mL(half level of oil gauge)
Oil Type:	85W/90 or greater GEAR OIL
Water Inlet Pressure:	0-0.35Mpa
Max Inlet Water Temp.	≤50°C
Shipping Size:	59x41.5x36cm
