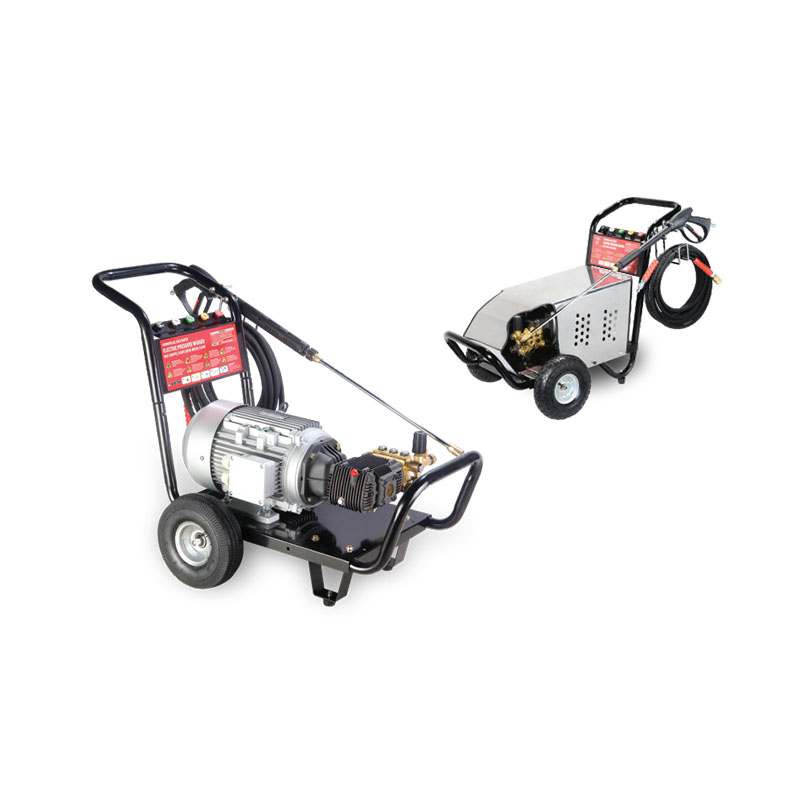

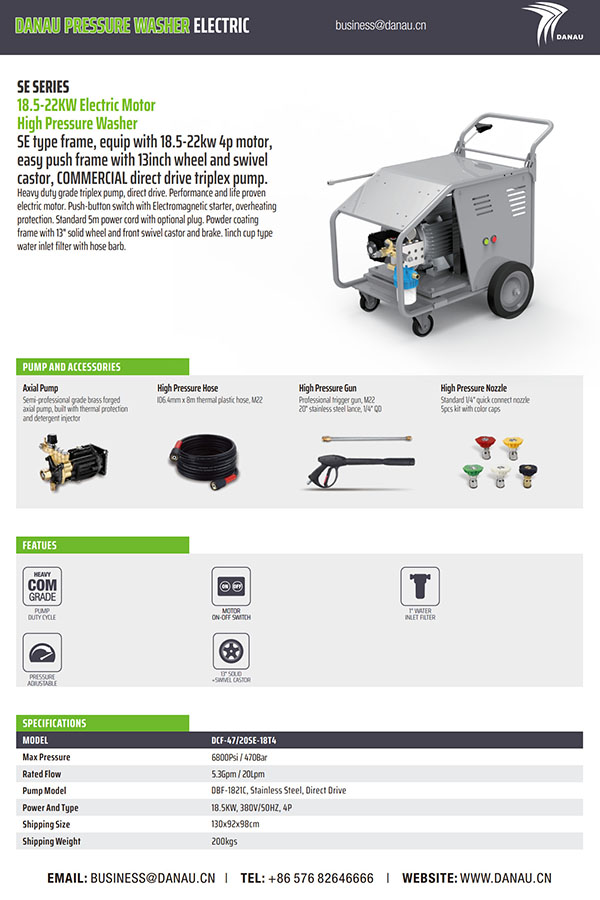

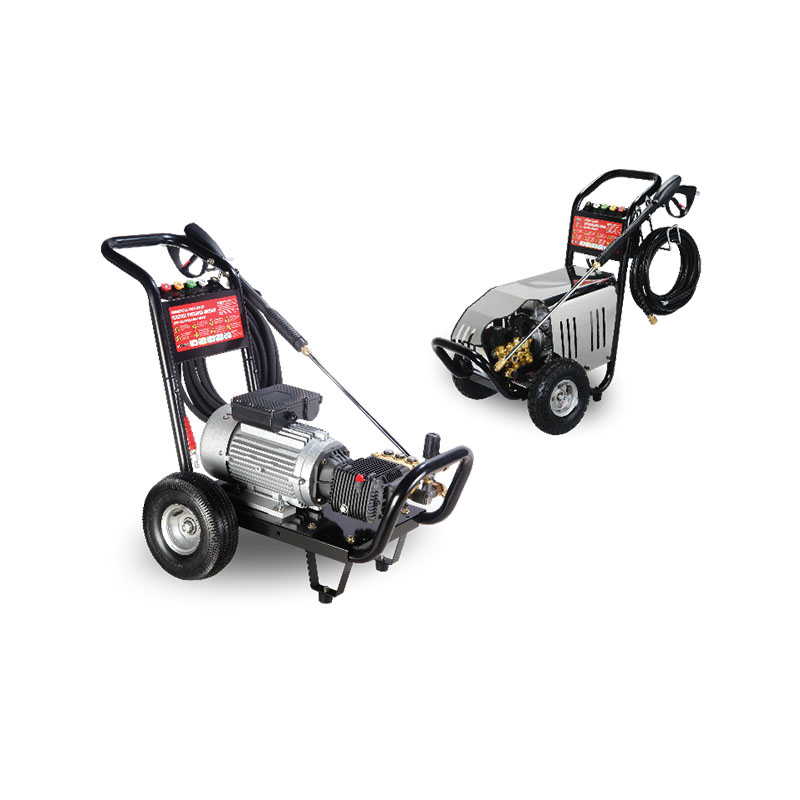

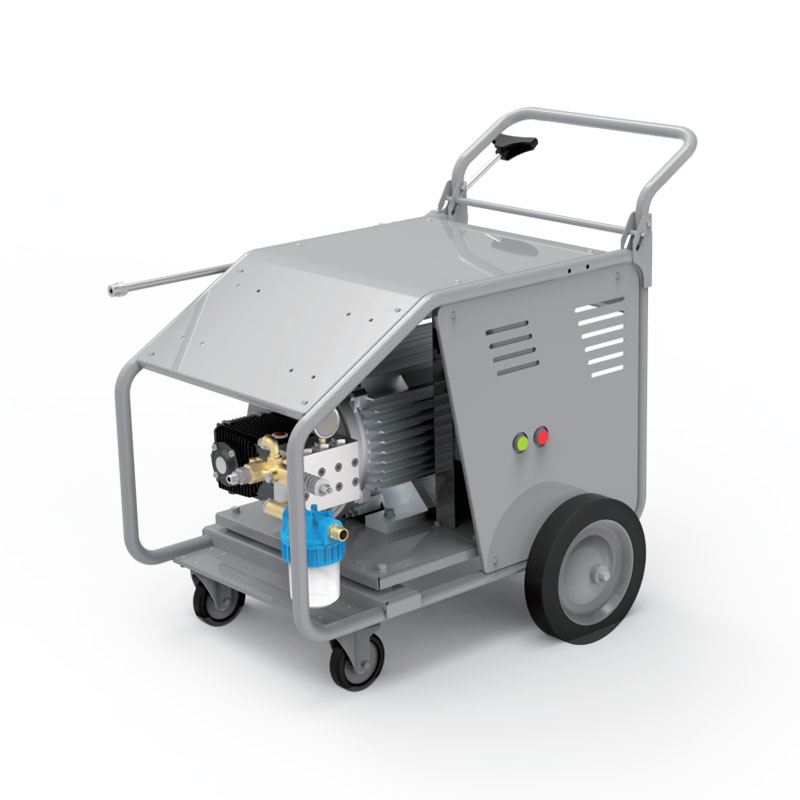

SE SERIES 18.5-22KW Electric Motor High Pressure Washer

SE type frame, equip with 18.5-22kw 4p motor, easy push frame with 13inch wheel and swivel castor, COMMERCIAL direct drive triplex pump.

Heavy duty grade triplex pump, direct drive. Performance and life proven electric motor. Push-button switch with Electromagnetic starter, overheating protection. Standard 5m power cord with optional plug. Powder coating frame with 13" solid wheel and front swivel castor and brake. 1inch cup type water inlet filter with hose barb.

Get a Quote +

PREV：SE SERIES 11-15KW Electric Motor High Pressure Washer
NEXT：No next article

SPECIFICATION
DIMENSION
COMPONENTS
APPLICATIONS
DOCUMENTS

SPECIFICATION

MODEL: DCF-47/20SE-18T4

Max Pressure	6800Psi / 470Bar
Rated Flow	5.3Gpm / 20Lpm
Pump Model	DBF-1821C, Stainless Steel, Direct Drive
Power And Type	18.5KW, 380V/50HZ, 4P
Shipping Size	130x92x98cm
Shipping Weight	200kgs

MODEL: DCF-47/23SE-22T4

Max Pressure	6800Psi / 470Bar
Rated Flow	6.1Gpm / 23Lpm
Pump Model	DBF-1821C, Stainless Steel, Direct Drive
Power And Type	22KW, 380V/50HZ, 4P
Shipping Size	130x92x98cm
Shipping Weight	200kgs

COMPONENTS

Axial Pump

Semi-professional grade brass forged axial pump, built with thermal protection and detergent injector
High Pressure Hose

ID6.4mm x 8m thermal plastic hose, M22
High Pressure Gun

Professional trigger gun, M22 20" stainless steel lance, 1/4" QD
High Pressure Nozzle

Standard 1/4" quick connect nozzle 5pcs kit with color caps
