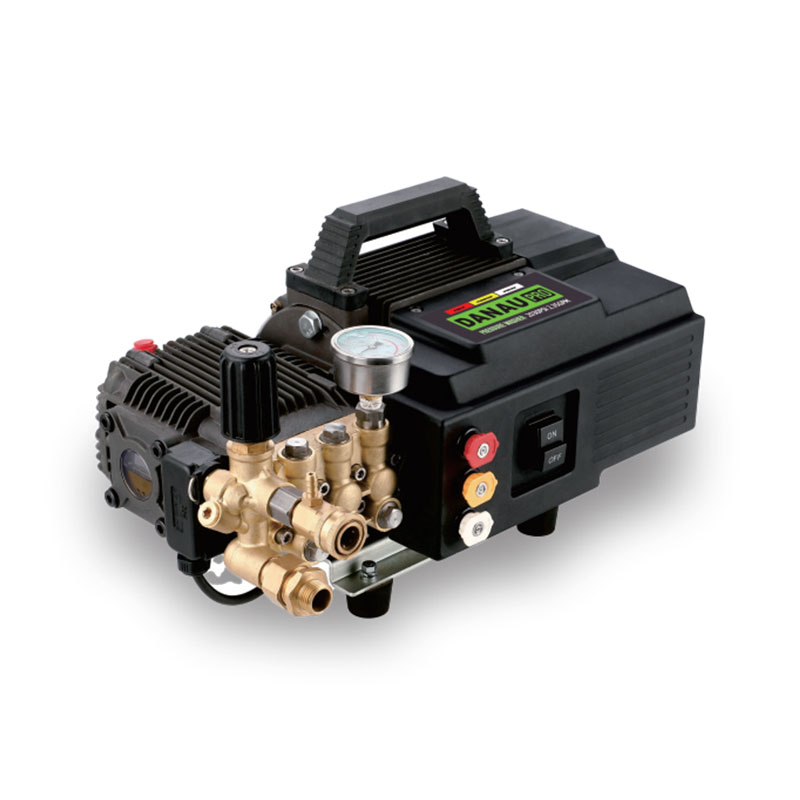

BP SERIES BG Series Hand Portable

BG series hand portable, equip with COMMERCIAL triplex pump.

Commercial grade brass forged triplex pump. Performance and life proven electric motor. Push-button switch, explosion-proof capacitor. Standard 3m power cord with optional plug. Integrated pressure switch, auto START/STOP functions.

Get a Quote +

PREV：DCCL-10/9BG-2S4 BG Series Hand Portable
NEXT：No next article

TECHNICAL DATA
SPECIFICATION
DIMENSION
COMPONENTS
APPLICATIONS
DOCUMENTS

TECHNICAL DATA

Max Pressure	2030Psi / 140Bar
Rated Flow	2.35Gpm / 9Lpm
Pump Model	DBCL-1407C, Brass
Power And Type	2.5kW, 220V/50HZ, 2P
Shipping Size	52.5x32x33.5cm
Shipping Weight	38kgs

SPECIFICATION

MODEL: DCCL-14/9BG-2.5S2

Max Pressure	2030Psi / 140Bar
Rated Flow	2.35Gpm / 9Lpm
Pump Model	DBCL-1407C, Brass
Power And Type	2.5kW, 220V/50HZ, 2P
Shipping Size	52.5x32x33.5cm
Shipping Weight	38kgs

COMPONENTS

Axial Pump

Semi-professional grade brass forged axial pump, built with thermal protection and detergent injector
High Pressure Hose

ID6.4mm x 8m thermal plastic hose, M22
High Pressure Gun

Professional trigger gun, M22 20" stainless steel lance, 1/4" QD
High Pressure Nozzle

Standard 1/4" quick connect nozzle 5pcs kit with color caps
