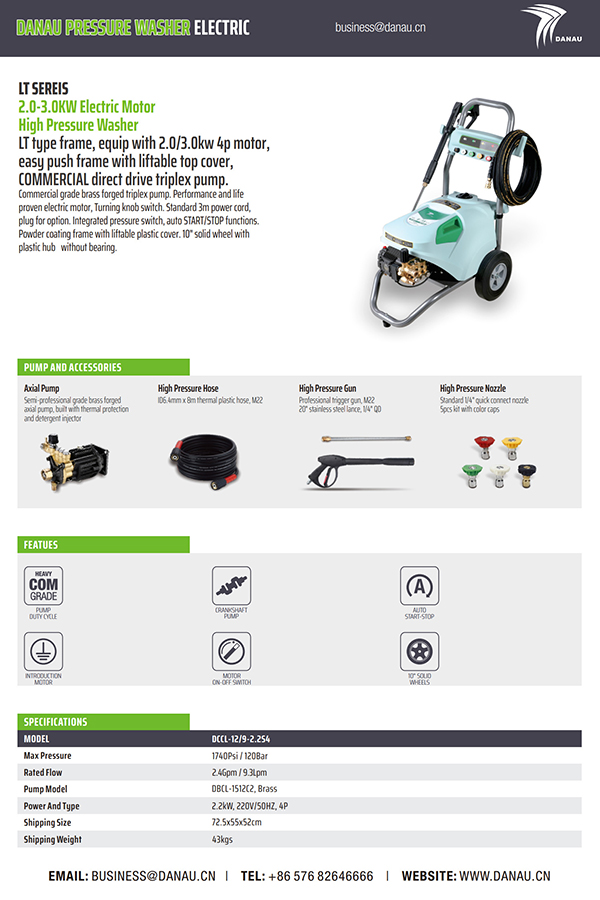

LT SEREIS 2.0-3.0KW Electric Motor High Pressure Washer

LT type frame, equip with 2.0/3.0kw 4p motor, easy push frame with liftable top cover, COMMERCIAL direct drive triplex pump.

Commercial grade brass forged triplex pump. Performance and life proven electric motor, Turning knob switch. Standard 3m power cord, plug for option. Integrated pressure switch, auto START/STOP functions. Powder coating frame with liftable plastic cover. 10" solid wheel with plastic hub without bearing.

Get a Quote +

PREV：CG SEREIS 5.5-7.5KW Electric Motor High Pressure Washer
NEXT：GT SEREIS 3.0-7.5KW Electric Motor High Pressure Washer

SPECIFICATION
DIMENSION
COMPONENTS
APPLICATIONS
DOCUMENTS

SPECIFICATION

MODEL: DCCL-12/9-2.2S4

Max Pressure	1740Psi / 120Bar
Rated Flow	2.4Gpm / 9.3Lpm
Pump Model	DBCL-1512C2, Brass
Power And Type	2.2kW, 220V/50HZ, 4P
Shipping Size	72.5x55x52cm
Shipping Weight	43kgs

MODEL: DCCL-13/9-2.5S4

Max Pressure	2030Psi / 135Bar
Rated Flow	2.4Gpm / 9.3Lpm
Pump Model	DBCL-1512C2, Brass
Power And Type	2.2kW, 220V/50HZ, 4P
Shipping Size	72.5x55x52cm
Shipping Weight	45kgs

MODEL: DCCL-16/9LT-3S4

Max Pressure	2320Psi / 160Bar
Rated Flow	2.4Gpm / 9.3Lpm
Pump Model	DBCL-1512C2, Brass
Power And Type	3.0kW, 220V/50HZ, 4P
Shipping Size	72.5x55x52cm
Shipping Weight	50kgs

COMPONENTS

Axial Pump

Semi-professional grade brass forged axial pump, built with thermal protection and detergent injector
High Pressure Hose

ID6.4mm x 8m thermal plastic hose, M22
High Pressure Gun

Professional trigger gun, M22 20" stainless steel lance, 1/4" QD
High Pressure Nozzle

Standard 1/4" quick connect nozzle 5pcs kit with color caps
