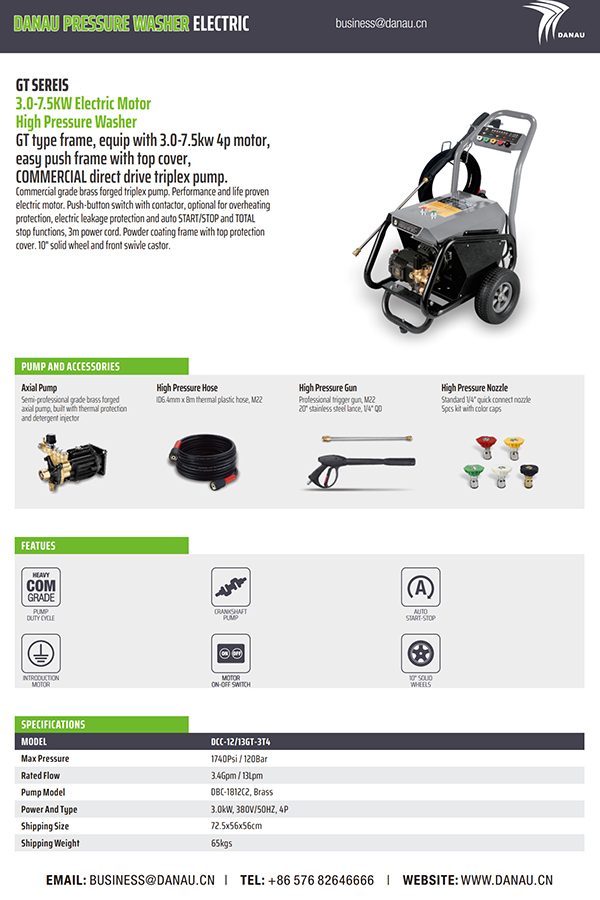

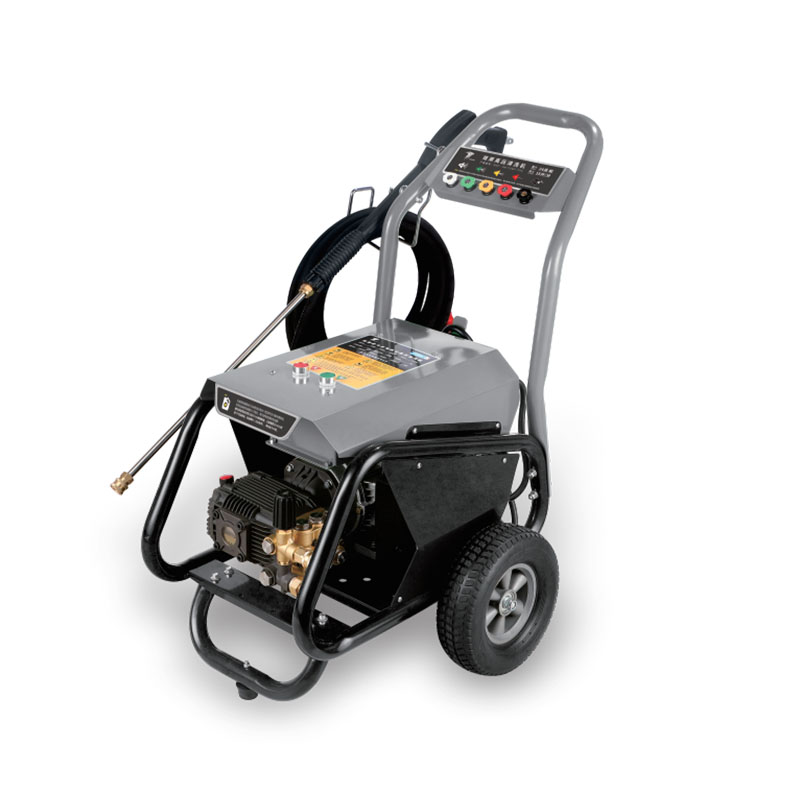

GT SEREIS 3.0-7.5KW Electric Motor High Pressure Washer

GT type frame, equip with 3.0-7.5kw 4p motor, easy push frame with top cover, COMMERCIAL direct drive triplex pump.

Commercial grade brass forged triplex pump. Performance and life proven electric motor. Push-button switch with contactor, optional for overheating protection, electric leakage protection and auto START/STOP and TOTAL stop functions, 3m power cord. Powder coating frame with top protection cover. 10" solid wheel and front swivle castor.

Get a Quote +

PREV：LT SEREIS 2.0-3.0KW Electric Motor High Pressure Washer
NEXT：SE SERIES 11-15KW Electric Motor High Pressure Washer

SPECIFICATION
DIMENSION
COMPONENTS
APPLICATIONS
DOCUMENTS

SPECIFICATION

MODEL: DCC-12/13GT-3T4

Max Pressure	1740Psi / 120Bar
Rated Flow	3.4Gpm / 13Lpm
Pump Model	DBC-1812C2, Brass
Power And Type	3.0kW, 380V/50HZ, 4P
Shipping Size	72.5x56x56cm
Shipping Weight	65kgs

MODEL: DCC-18/10GT-4T4

Max Pressure	2700Psi / 186Bar
Rated Flow	2.8Gpm / 10.7Lpm
Pump Model	DBC-1514C2, Brass
Power And Type	4.0kW, 380V/50HZ, 4P
Shipping Size	72.5x56x56cm
Shipping Weight	68kgs

MODEL: DCC-20/13GT-5.5T4

Max Pressure	3000Psi / 206Bar
Rated Flow	3.5Gpm / 13.3Lpm
Pump Model	DBC-1812C3, Brass
Power And Type	5.5kW, 380V/50HZ, 4P
Shipping Size	72.5x56x56cm
Shipping Weight	77kgs

MODEL: DCC-24/15GT-7.5T4

Max Pressure	3600Psi / 248Bar
Rated Flow	4.1Gpm / 15.5Lpm
Pump Model	DBD-1814C3, Brass
Power And Type	7.5kW, 380V/50HZ, 4P
Shipping Size	72.5x56x56cm
Shipping Weight	79kgs

COMPONENTS

Axial Pump

Semi-professional grade brass forged axial pump, built with thermal protection and detergent injector
High Pressure Hose

ID6.4mm x 8m thermal plastic hose, M22
High Pressure Gun

Professional trigger gun, M22 20" stainless steel lance, 1/4" QD
High Pressure Nozzle

Standard 1/4" quick connect nozzle 5pcs kit with color caps
