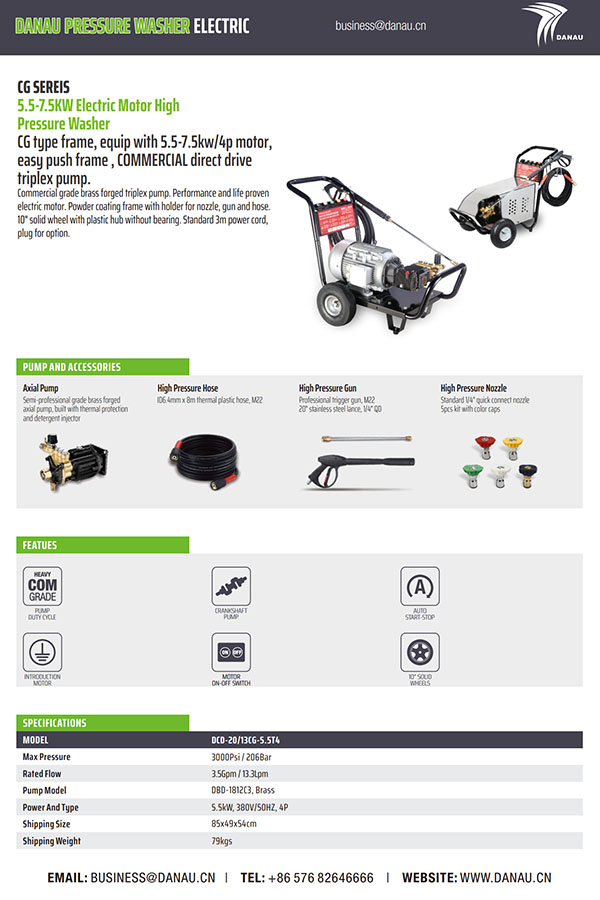

CG SEREIS 5.5-7.5KW Electric Motor High Pressure Washer

CG type frame, equip with 5.5-7.5kw/4p motor, easy push frame , COMMERCIAL direct drive triplex pump.

Commercial grade brass forged triplex pump. Performance and life proven electric motor. Powder coating frame with holder for nozzle, gun and hose. 10" solid wheel with plastic hub without bearing. Standard 3m power cord, plug for option.

Get a Quote +

PREV：C SEREIS 2.2-4KW Electric Motor High Pressure Washer
NEXT：LT SEREIS 2.0-3.0KW Electric Motor High Pressure Washer

SPECIFICATION
DIMENSION
COMPONENTS
APPLICATIONS
DOCUMENTS

SPECIFICATION

MODEL: DCD-20/13CG-5.5T4

Max Pressure	3000Psi / 206Bar
Rated Flow	3.5Gpm / 13.3Lpm
Pump Model	DBD-1812C3, Brass
Power And Type	5.5kW, 380V/50HZ, 4P
Shipping Size	85x49x54cm
Shipping Weight	79kgs

MODEL: DCD-24/15CG-7.5T4

Max Pressure	3600Psi / 248Bar
Rated Flow	4.09Gpm / 15.5Lpm
Pump Model	DBD-1814C3, Brass
Power And Type	7.5kW, 380V/50HZ, 4P
Shipping Size	85x49x54cm
Shipping Weight	82kgs

MODEL: DCCL-12/9-2.2S4

Max Pressure	1740Psi / 120Bar
Rated Flow	2.4Gpm / 9.3Lpm
Pump Model	DBCL-1512C2, Brass
Power And Type	2.2kW, 220V/50HZ, 4P
Shipping Size	72.5x55x52cm
Shipping Weight	43kgs

MODEL: DCCL-13/9-2.5S4

Max Pressure	2030Psi / 135Bar
Rated Flow	2.4Gpm / 9.3Lpm
Pump Model	DBCL-1512C2, Brass
Power And Type	2.2kW, 220V/50HZ, 4P
Shipping Size	72.5x55x52cm
Shipping Weight	45kgs

COMPONENTS

Axial Pump

Semi-professional grade brass forged axial pump, built with thermal protection and detergent injector
High Pressure Hose

ID6.4mm x 8m thermal plastic hose, M22
High Pressure Gun

Professional trigger gun, M22 20" stainless steel lance, 1/4" QD
High Pressure Nozzle

Standard 1/4" quick connect nozzle 5pcs kit with color caps
