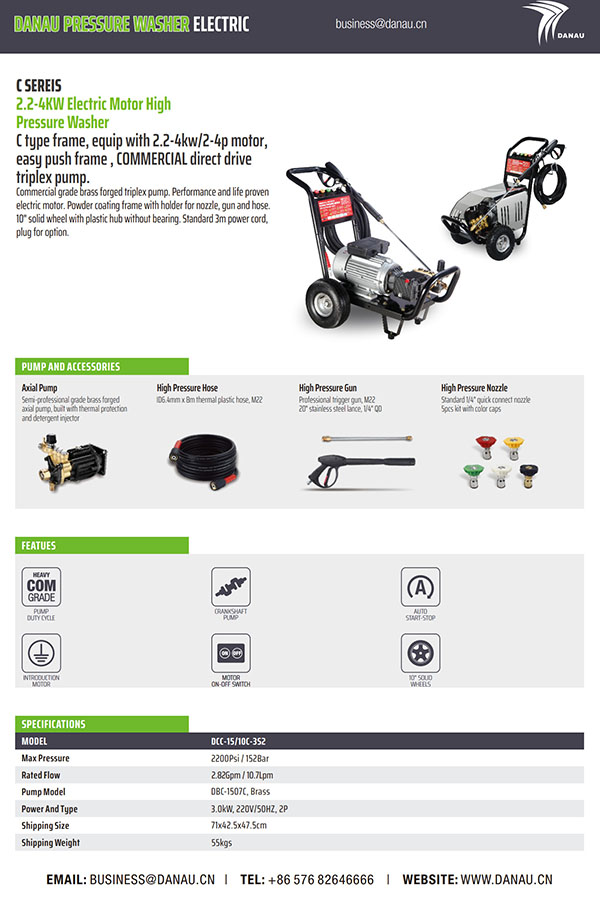

C SEREIS 2.2-4KW Electric Motor High Pressure Washer

C type frame, equip with 2.2-4kw/2-4p motor, easy push frame , COMMERCIAL direct drive triplex pump.

Commercial grade brass forged triplex pump. Performance and life proven electric motor. Powder coating frame with holder for nozzle, gun and hose. 10" solid wheel with plastic hub without bearing. Standard 3m power cord, plug for option.

Get a Quote +

PREV：No previous article
NEXT：CG SEREIS 5.5-7.5KW Electric Motor High Pressure Washer

SPECIFICATION
DIMENSION
COMPONENTS
APPLICATIONS
DOCUMENTS

SPECIFICATION

MODEL: DCC-15/10C-3S2

Max Pressure	2200Psi / 152Bar
Rated Flow	2.82Gpm / 10.7Lpm
Pump Model	DBC-1507C, Brass
Power And Type	3.0kW, 220V/50HZ, 2P
Shipping Size	71x42.5x47.5cm
Shipping Weight	55kgs

MODEL: DCC-15/9C-3S4

Max Pressure	2200Psi / 152Bar
Rated Flow	2.4Gpm / 9.3Lpm
Pump Model	DBC-1512C, Brass
Power And Type	3.0kW, 220V/50HZ, 4P
Shipping Size	71x42.5x47.5cm
Shipping Weight	55kgs

MODEL: DCC-15/9-3T4

Max Pressure	2200Psi / 152Bar
Rated Flow	2.4Gpm / 9.3Lpm
Pump Model	DBCL-1512C2, Bras
Power And Type	3.0kW, 380V/50HZ, 4P
Shipping Size	71x42.5x47.5cm
Shipping Weight	55kgs

MODEL: DCC-18/10C-4T4

Max Pressure	2700Psi / 186Bar
Rated Flow	2.8Gpm / 10.7Lpm
Pump Model	DBC-1514C2, Brass
Power And Type	4.0kW, 380V/50HZ, 4P
Shipping Size	71x42.5x47.5cm
Shipping Weight	62kgs

COMPONENTS

Axial Pump

Semi-professional grade brass forged axial pump, built with thermal protection and detergent injector
High Pressure Hose

ID6.4mm x 8m thermal plastic hose, M22
High Pressure Gun

Professional trigger gun, M22 20" stainless steel lance, 1/4" QD
High Pressure Nozzle

Standard 1/4" quick connect nozzle 5pcs kit with color caps
