High Quality DBQ Ro/Chemical Pump Set

Home / Products / Industrial Plunger Pump / Special Application Industrial Plunger Pump / industrial Plunger Pump For Seawater & Chemical Resistant / DBQ Ro/Chemical Pump Set
industrial Plunger Pump For Seawater & Chemical Resistant

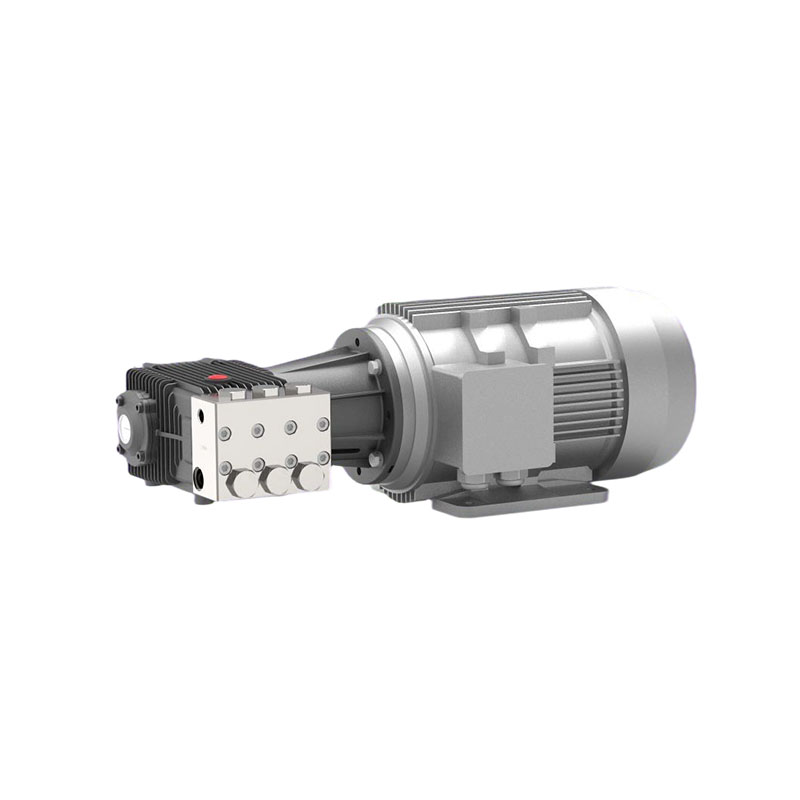

DBQ Ro/Chemical Pump Set

Get a Quote +
PREV：No previous article
NEXT：DBF Ro/Chemical Pump Set

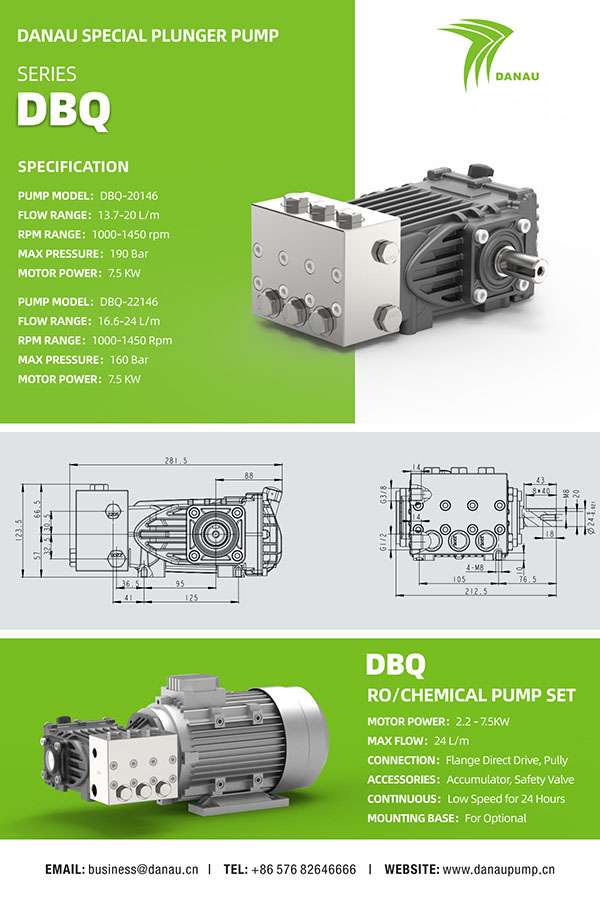

TECHNICAL DATA

MOTO RPOWE： 2.2-7.5KW
MAX FLOW： 24L/m
CONNECTlON： Flanqe Direct Drive Pull
ACCESSORlES： Accumulator, Safety Valve
CONTINUOUS： Low Speed for 24 Hours
MOUNING BASE： For Optional

SPECIFICATION

MODEL: DBQ-20146

PUMP MODEL： DBQ-20146
FLOW RANG： 13.7-20L/m
RPM RANGE： 1000-1450Rpm
MAX PRESSURE： 19MPa
MOTOR POWER： 7.5KW


MODEL: DBQ-22146

PUMP MODEL： DBQ-22146
FLOW RANG： 16.6-24L/m
RPM RANGE： 1000-1450Rpm
MAX PRESSURE： 16MPa
MOTOR POWER： 7.5KW

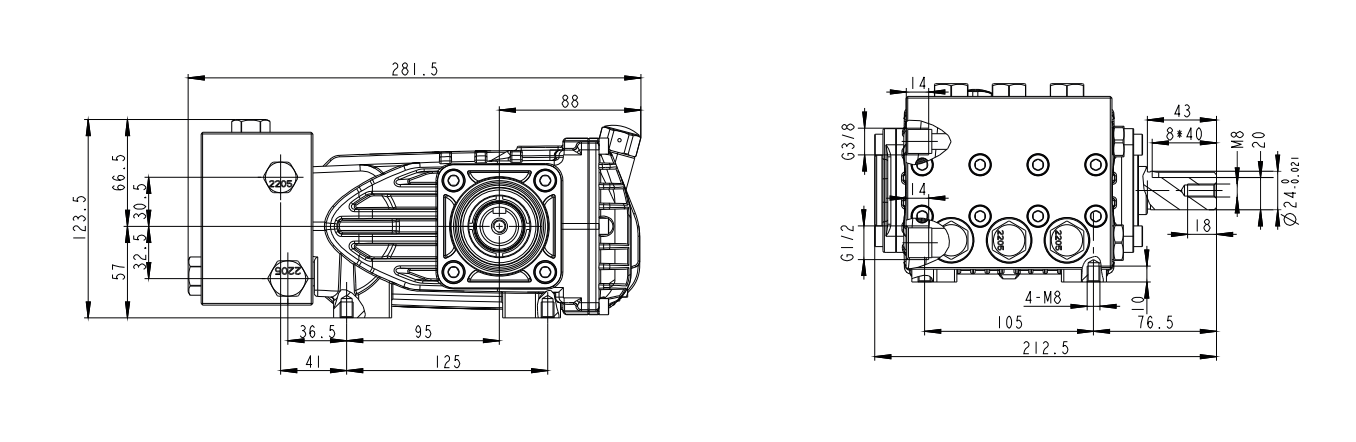

DIMENSION

COMPONENTS

  • PUMP HEAD

    Forged Brass, 304 Stainless Steel And Duplex Steel

  • CRANKSHAFT HOUSING

    Precision Die-Cast Aluminium Alloy

  • CRANKSHAFT

    Forged Alloy Steel, Heat-Treated

  • CONNECTING RODS

    Split Aluminium Alloy Connecting Rods

  • PISTONS

    Ceramic-Coated/Ceramic Pistons

  • SEALING ASSEMBLY

    Dual Water Seals For High And Low Pressure

APPLICATIONS

  • HIGH-PRESSURE CLEANING
  • MIST GENERATION
  • HOT WATER APPLICATIONS
  • HIGH-PRESSURE COOLANTS
  • WATER TREATMENT
  • WATER JET CUTTING
