High Quality DBF Ro/Chemical Pump Set

Home / Products / Industrial Plunger Pump / Special Application Industrial Plunger Pump / industrial Plunger Pump For Seawater & Chemical Resistant / DBF Ro/Chemical Pump Set
industrial Plunger Pump For Seawater & Chemical Resistant

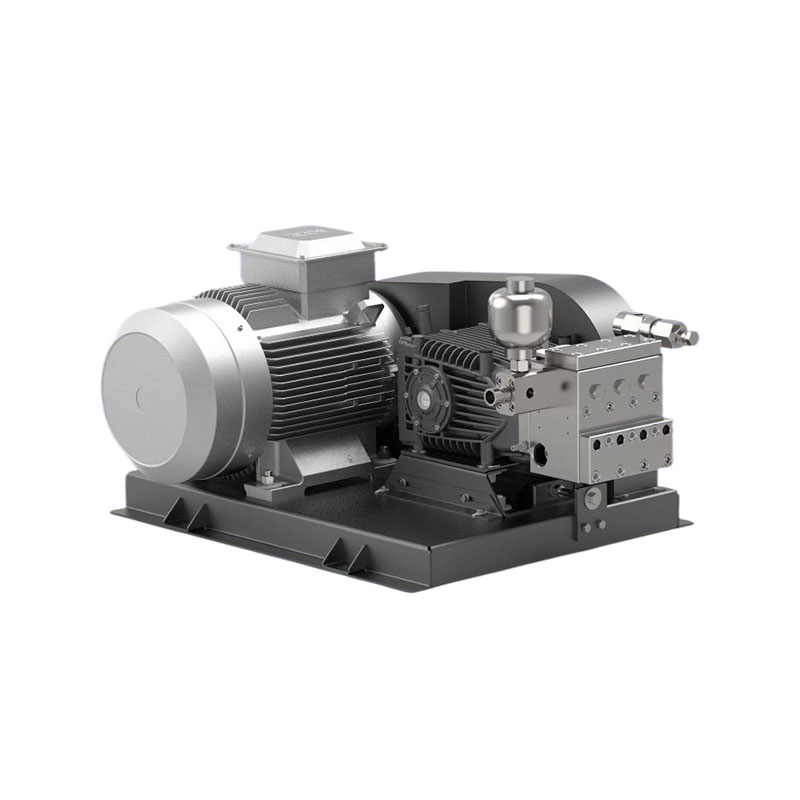

DBF Ro/Chemical Pump Set

Get a Quote +
PREV：DBQ Ro/Chemical Pump Set
NEXT：DBP Ro/Chemical Pump Set

TECHNICAL DATA

MOTOR POWER： 5.5-18.5KW
MAX FLOW： 64L/m
CONNECTlON： Bell Housing, Pull
ACCESSORlES： Acumulator, Safety Valve
CONTINUOUS： Low Speed for 24 Hours
MOUNING BASE： For Optional






SPECIFICATION

MODEL: DBF-2542

PUMP MODEL: DBF-2542
FLOW RANGE： 35-51L/m
RPM RANGE： 1000-1450Rpm
MAX PRESSURE： 16MPa
MOTOR POWER： 18.5KW


MODEL: DBF-2824

PUMP MODEL: DBF-2824
FLOW RANGE： 44.3-64L/m
RPM RANGE： 1000-1450Rpm
MAX PRESSURE： 16MPa
MOTOR POWER： 18.5KW

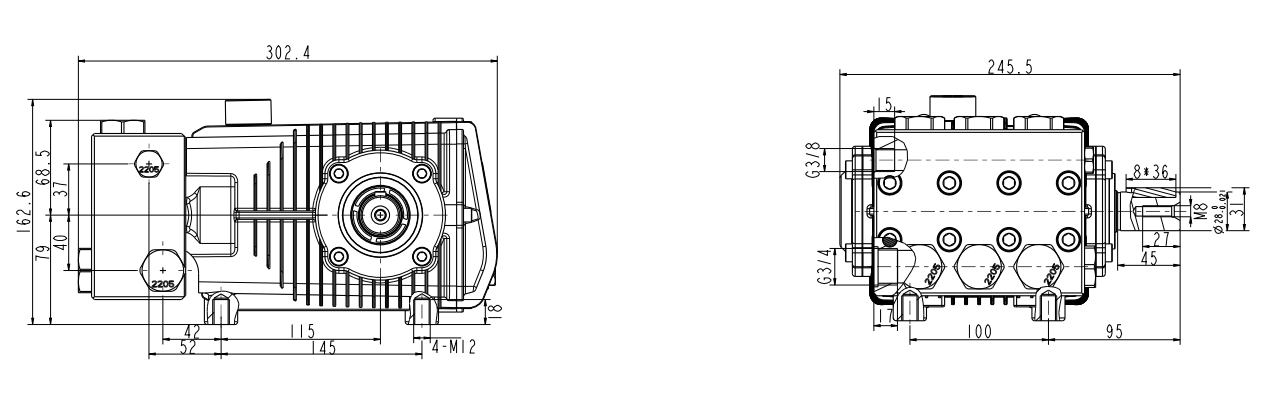

DIMENSION

COMPONENTS

  • PUMP HEAD

    Forged Brass, 304 Stainless Steel And Duplex Steel

  • CRANKSHAFT HOUSING

    Precision Die-Cast Aluminium Alloy

  • CRANKSHAFT

    Forged Alloy Steel, Heat-Treated

  • CONNECTING RODS

    Split Aluminium Alloy Connecting Rods

  • PISTONS

    Ceramic-Coated/Ceramic Pistons

  • SEALING ASSEMBLY

    Dual Water Seals For High And Low Pressure

APPLICATIONS

  • HIGH-PRESSURE CLEANING
  • MIST GENERATION
  • HOT WATER APPLICATIONS
  • HIGH-PRESSURE COOLANTS
  • WATER TREATMENT
  • WATER JET CUTTING
