High Quality DBH Ro/Chemical Pump Set

Home / Products / Industrial Plunger Pump / Special Application Industrial Plunger Pump / industrial Plunger Pump For Seawater & Chemical Resistant / DBH Ro/Chemical Pump Set
industrial Plunger Pump For Seawater & Chemical Resistant

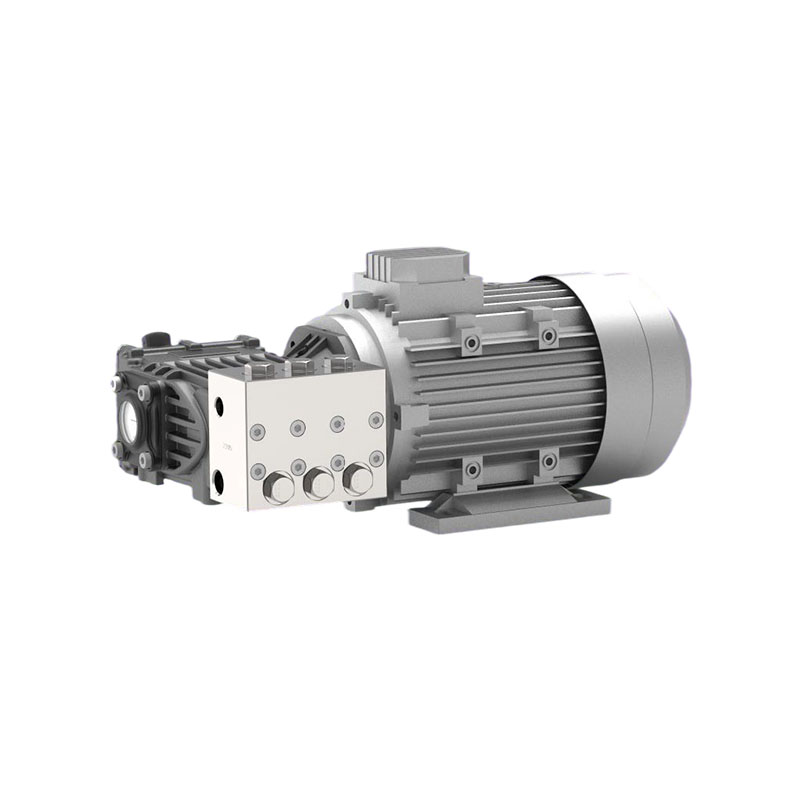

DBH Ro/Chemical Pump Set

Get a Quote +
PREV：DBR Ro/Chemical Pump Set
NEXT：DBN Ro/Chemical Pump Set

TECHNICAL DATA

MOTOR POWER： 15-37KW
MAX FLOW： 180L/m
CONNECTlON： Pully
ACCESSORlES： Accumulator, Safety Valve
CONTINUOUS： Low Speed for 24 Hours
MOUNING BASE： For Optional

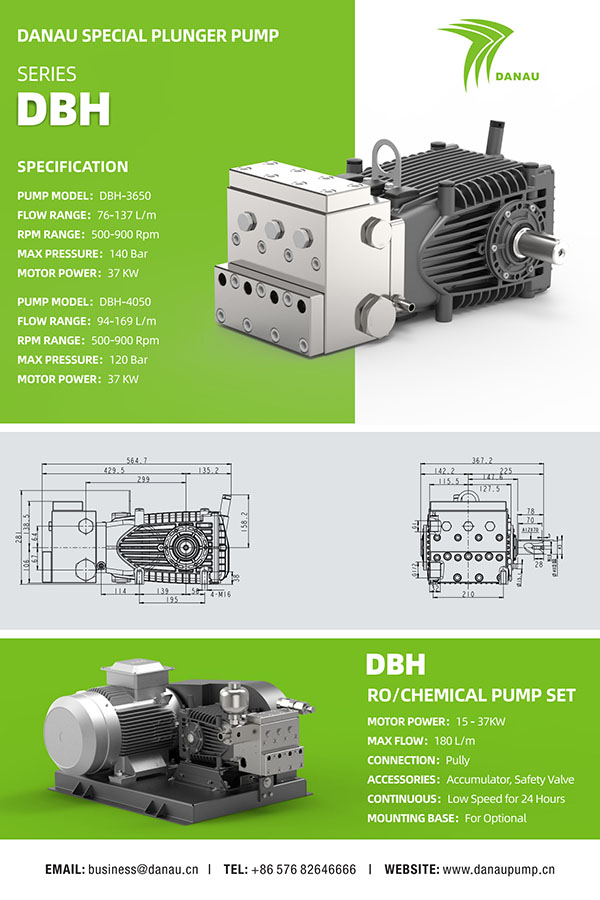

SPECIFICATION

MODEL: DBH-3650

PUMP MODEL: DBH-3650
FLOW RANGE: 76-137L/m
RPM RANGE: 500-900Rpm
MAX PRESSURE: 14MPa
MOTOR POWER: 37KW


MODEL: DBH-4050

PUMP MODEL: DBH-4050
FLOW RANGE: 94-169L/m
RPM RANGE: 500-900Rpm
MAX PRESSURE: 12MPa
MOTOR POWER: 37KW

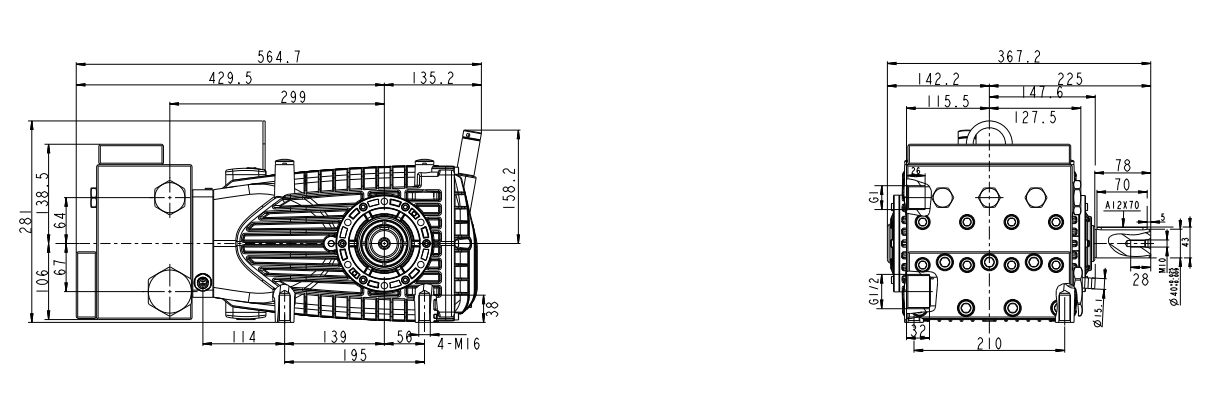

DIMENSION

COMPONENTS

  • PUMP HEAD

    Forged Brass, 304 Stainless Steel And Duplex Steel

  • CRANKSHAFT HOUSING

    Precision Die-Cast Aluminium Alloy

  • CRANKSHAFT

    Forged Alloy Steel, Heat-Treated

  • CONNECTING RODS

    Split Aluminium Alloy Connecting Rods

  • PISTONS

    Ceramic-Coated/Ceramic Pistons

  • SEALING ASSEMBLY

    Dual Water Seals For High And Low Pressure

APPLICATIONS

  • HIGH-PRESSURE CLEANING
  • MIST GENERATION
  • HOT WATER APPLICATIONS
  • HIGH-PRESSURE COOLANTS
  • WATER TREATMENT
  • WATER JET CUTTING

DOCUMENTS
