High Quality DBCL-C3 Type Crankshaft Pump

Home / Products / Plunger Pump / Commercial Crankshaft Pump / DBCL Series Crankshaft Pump / DBCL-C3 Type Crankshaft Pump
  • DBCL-C3 Type Crankshaft Pump

    DBCL-C3

DBCL Series Crankshaft Pump

DBCL-C3 Type Crankshaft Pump

Code: DBCL-C3

Get a Quote +
PREV：DBCL-18C2 Type Crankshaft Pump
NEXT：No next article

TECHNICAL DATA

Manifold: Brass forged
Crankcase: Die-cast aluminum alloy, anodized
Connecting Rod: One-piece aluminum alloy
Plunger: Ceramic coating, precision grinded
Packing: U-type, high-low dual pressure packing
Bearing: Ball and needle bearing
Crankshaft: Forged steel alloy, heat treatment, multiple process grinded
Head Port: Inlet 3/8", Outlet 1/2"
Unloader: Integrated with manifold
Unloader Port: Inlet 3/4" (BSP or NH), Outlet 3/8" Quick Connect
Oil Bath Capacity: 450ml (half level of oil gauge)
Oil Type： 15W/40 Non-Detergent
Water Inlet Pressure: 0-50psi/3.5bar
Max Inlet Water Temp. ≤ 50°C/122°F

SPECIFICATION

MODEL: DBCL-1814C3

Max Flow(GPM, LPM) 4.0, 15.4
Max Pressure(PSI, BAR) 2600, 180
Power Input(KW) 5.5
Power Speed(RPM) 1450
Weight(KG) 8
Shipping Size(CM) 32x28.5x26

MODEL: DBCL-2010C3

Max Flow(GPM, LPM) 3.5, 13.5
Max Pressure(PSI, BAR) 2900, 200
Power Input(KW) 5.5
Power Speed(RPM) 1450
Weight(KG) 8
Shipping Size(CM) 32x28.5x26

MODEL: DBCL-2014C3

Max Flow(GPM, LPM) 5.0, 19.0
Max Pressure(PSI, BAR) 2030, 140
Power Input(KW) 5.5
Power Speed(RPM) 1450
Weight(KG) 8
Shipping Size(CM) 32x28.5x26

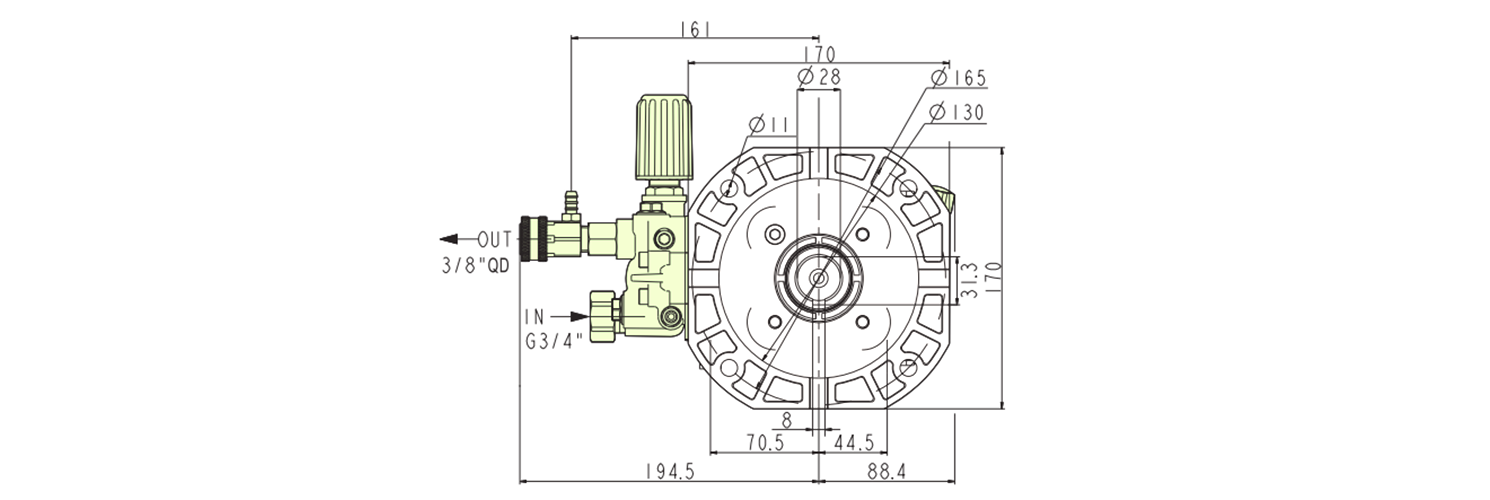

DIMENSION

COMPONENTS

  • MANIFOLD

    Unloader Integrated, Brass

  • CRANKCASE

    Aluminum Alloy

  • CRANKSHAFT

    Forged Steel Alloy

  • CONNECTING ROD

    Aluminum Alloy

  • PLUNGER

    Coating Ceramic

  • PACKING

    U Type Dual Seal

APPLICATIONS

  • PRESSURE WASHING
  • MISTING AND FOG MAKING
  • HOT WATERAPPLICATION
  • HIGH PRESSURECOOLANT
  • WATER TREATMENT
  • WATER JETCUTTING
