High Quality DBCL-C Type Crankshaft Pump

Home / Products / Plunger Pump / Commercial Crankshaft Pump / DBCL Series Crankshaft Pump / DBCL-C Type Crankshaft Pump
  • DBCL-C Type Crankshaft Pump

    DBCL-C

DBCL Series Crankshaft Pump

DBCL-C Type Crankshaft Pump

Code: DBCL-C

Get a Quote +
PREV：No previous article
NEXT：DBCL-15C2 Type Crankshaft Pump

TECHNICAL DATA

Manifold: Brass forged
Crankcase: Die-cast aluminum alloy, anodized
Connecting Rod: One-piece aluminum alloy
Plunger: Ceramic coating, precision grinded
Packing: U-type, high-low dual pressure packing
Bearing: Ball and needle bearing
Crankshaft: Forged steel alloy, heat treatment, multiple process grinded
Head Port: Inlet 3/8", Outlet 1/2"
Unloader: Integrated with manifold
Unloader Port: Inlet 3/4" (BSP or NH), Outlet 3/8" Quick Connect
Oil Bath Capacity: 450ml (half level of oil gauge)
Oil Type： 15W/40 Non-Detergent
Water Inlet Pressure: 0-50psi/3.5bar
Max Inlet Water Temp. ≤ 50°C/122°F

SPECIFICATION

MODEL: DBCL-1507C

Max Flow(GPM, LPM) 2.8, 10.6
Max Pressure(PSI, BAR) 1450, 100
Power Input(KW) 2.2
Power Speed(RPM) 2860
Weight(KG) 6.5
Shipping Size(CM) 43x41x26


MODEL: DBCL-1508.5C

Max Flow(GPM, LPM) 3.4, 12.9
Max Pressure(PSI, BAR) 1200, 83
Power Input(KW) 2.2
Power Speed(RPM) 2860
Weight(KG) 6.5
Shipping Size(CM) 43x41x26

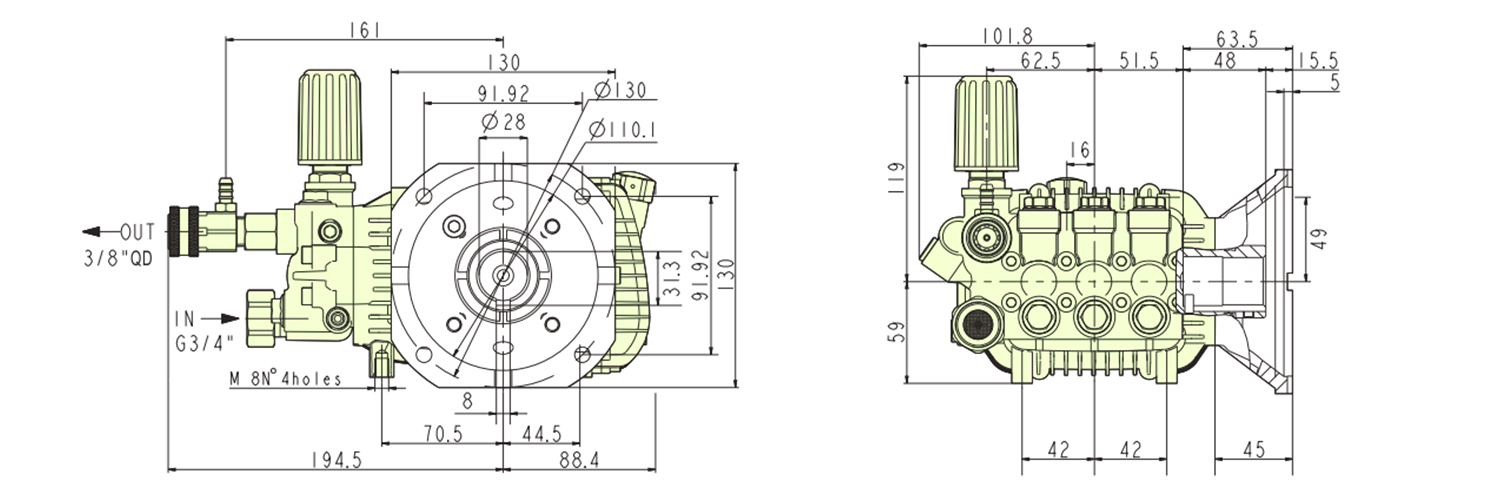

DIMENSION

COMPONENTS

  • MANIFOLD

    Unloader Integrated, Brass

  • CRANKCASE

    Aluminum Alloy

  • CRANKSHAFT

    Forged Steel Alloy

  • CONNECTING ROD

    Aluminum Alloy

  • PLUNGER

    Coating Ceramic

  • PACKING

    U Type Dual Seal

APPLICATIONS

  • PRESSURE WASHING
  • MISTING AND FOG MAKING
  • HOT WATERAPPLICATION
  • HIGH PRESSURECOOLANT
  • WATER TREATMENT
  • WATER JETCUTTING

DOCUMENTS
