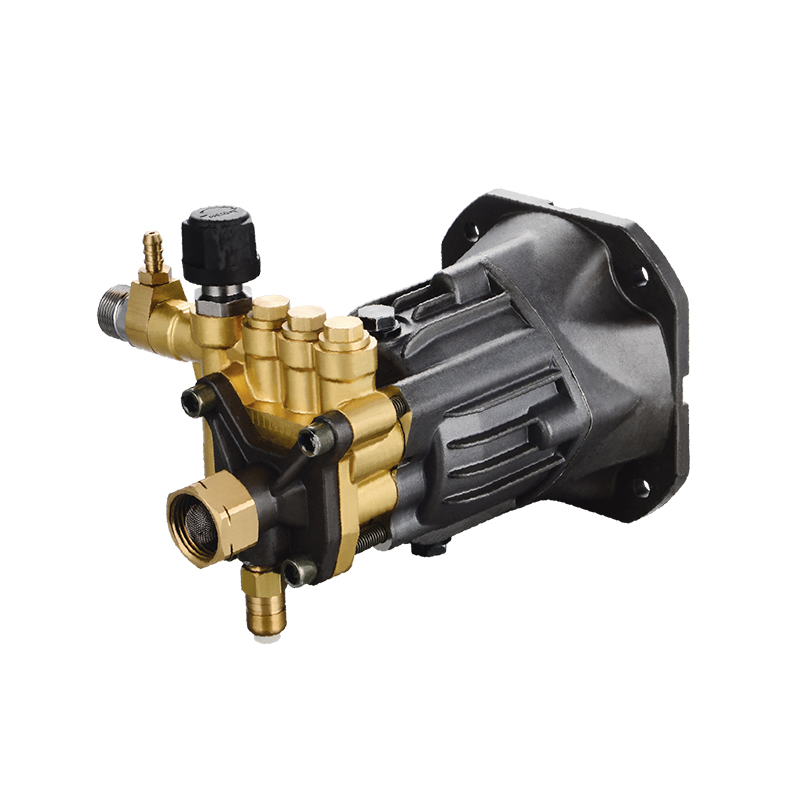

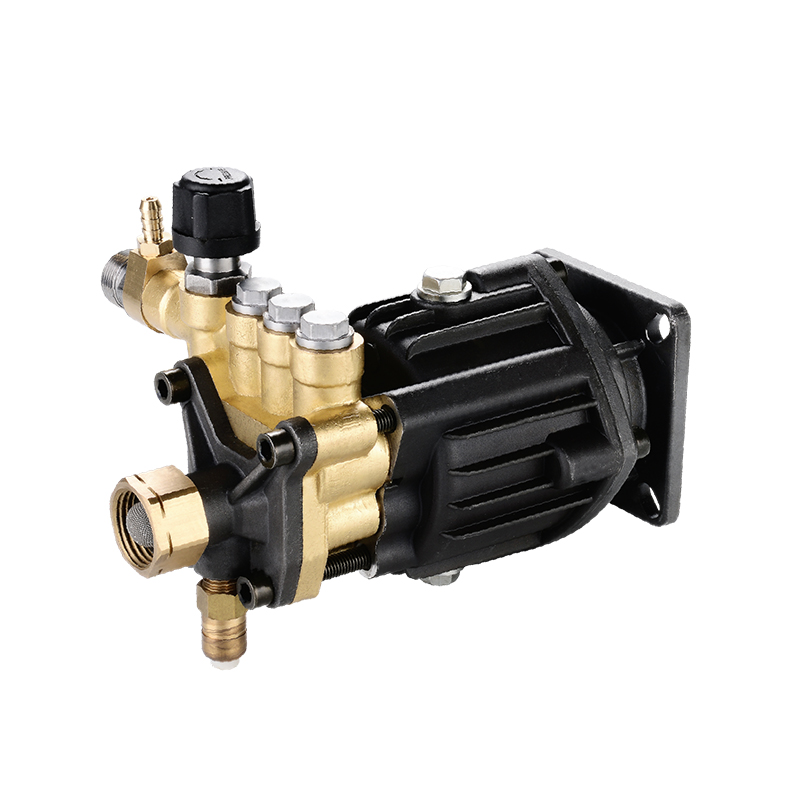

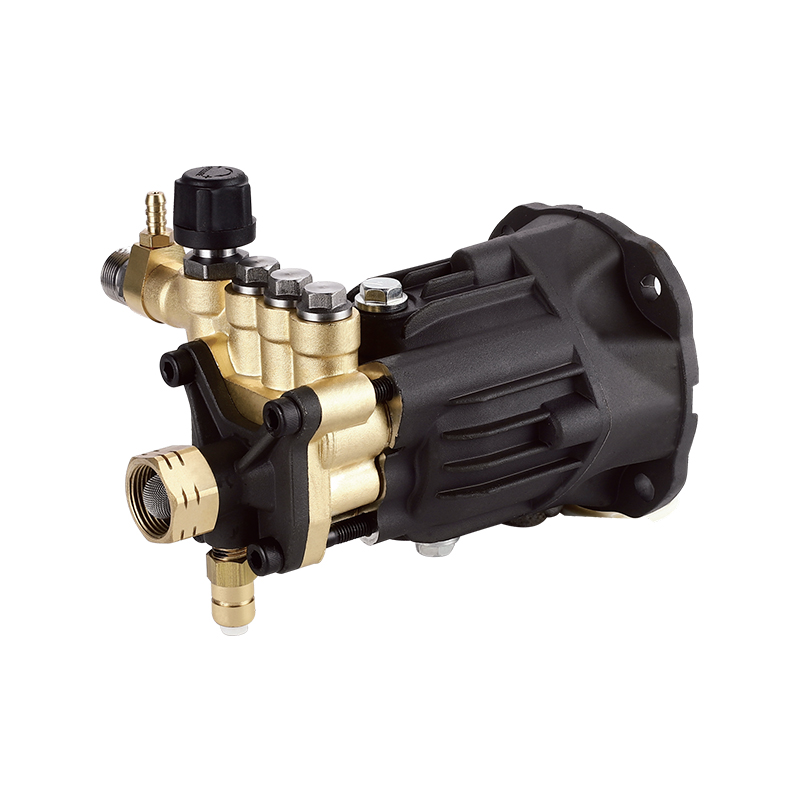

High Quality DAA-AC5 Type Consumer Axial Pump

Home / Products / Plunger Pump / Commercial Axial Pump / DAA Series Consumer Axial Pump / DAA-AC5 Type Consumer Axial Pump
  • DAA-AC5 Type Consumer Axial Pump

    DAA-AC5

DAA Series Consumer Axial Pump

DAA-AC5 Type Consumer Axial Pump

Code: DAA-AC5

Get a Quote +
PREV：DAA-AC2 Type Consumer Axial Pump
NEXT：No next article

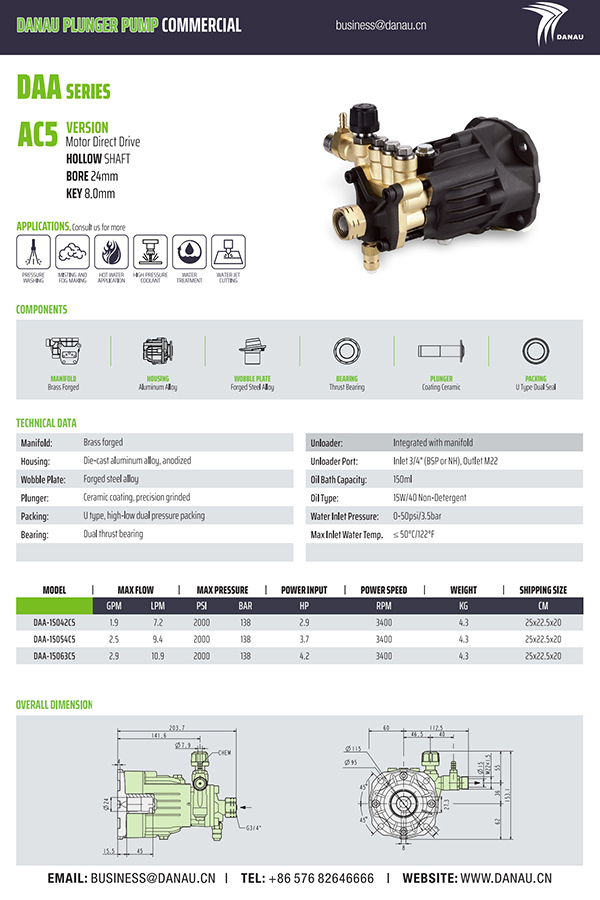

TECHNICAL DATA

Plunger: Ceramic coating, precision grinded
Packing: U-type, high-low dual pressure packing
Bearing: Dual thrust bearing
Unloader: Integrated with manifold
Unloader Port: Inlet 3/4" (BSP or NH), Outlet M22
Oil Bath Capacity: 150ml
Oil Type： 15W/40 Non-Detergent
Water Inlet Pressure: 0-50psi/3.5bar
Max Inlet Water Temp. ≤ 50°C/122°F

SPECIFICATION

MODEL: DAA-15042C5

Max Flow(GPM, LPM) 1.9, 7.2
Max Pressure(PSI, BAR) 2000, 138
Power Input(HP) 2.9
Power Speed(RPM) 3440
Weight(KG) 4.3
Shipping Size(CM) 25x22.5x20


MODEL: DAA-15054C5

Max Flow(GPM, LPM) 2.5, 9.4
Max Pressure(PSI, BAR) 2000, 138
Power Input(HP) 3.7
Power Speed(RPM) 3440
Weight(KG) 4.3
Shipping Size(CM) 25x22.5x20

MODEL: DAA-15063C5

Max Flow(GPM, LPM) 2.9, 10.9
Max Pressure(PSI, BAR) 2000, 138
Power Input(HP) 4.2
Power Speed(RPM) 3400
Weight(KG) 4.3
Shipping Size(CM) 25x22.5x20

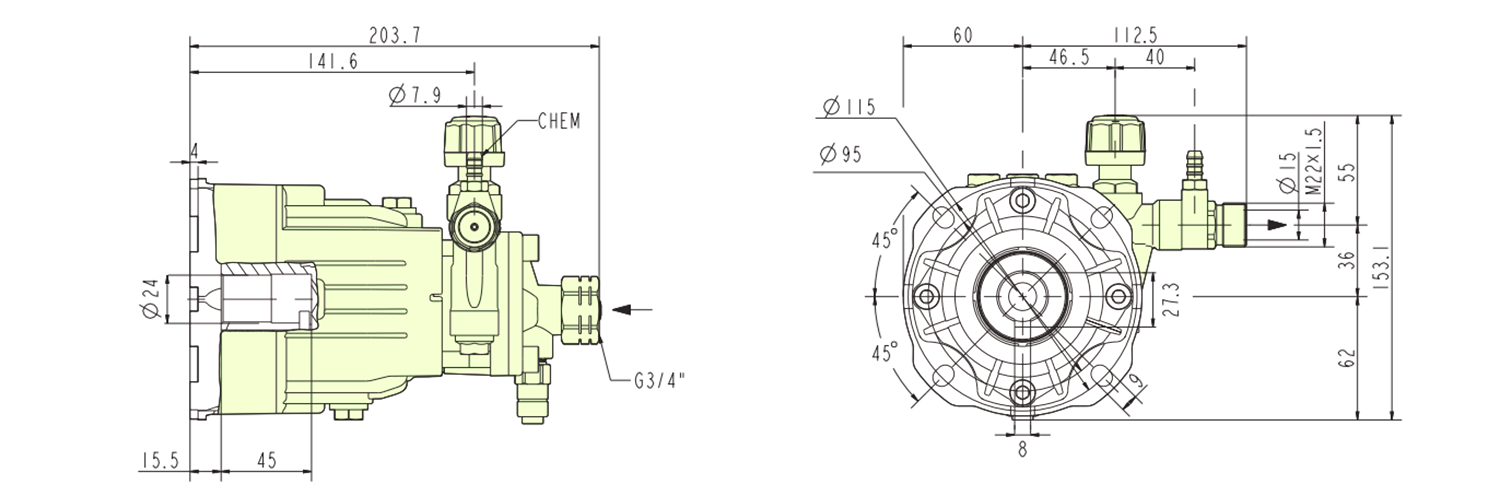

DIMENSION

COMPONENTS

  • MANIFOLD

    Brass Forged

  • HOUSING

    Aluminum Alloy

  • WOBBLE PLATE

    Forged Steel Alloy

  • BEARING

    Thrust Bearing

  • PLUNGER

    Coating Ceramic

  • PACKING

    U Type Dual Seal

APPLICATIONS

  • PRESSURE WASHING
  • MISTING AND FOG MAKING
  • HOT WATERAPPLICATION
  • HIGH PRESSURECOOLANT
  • WATER TREATMENT
  • WATER JETCUTTING
