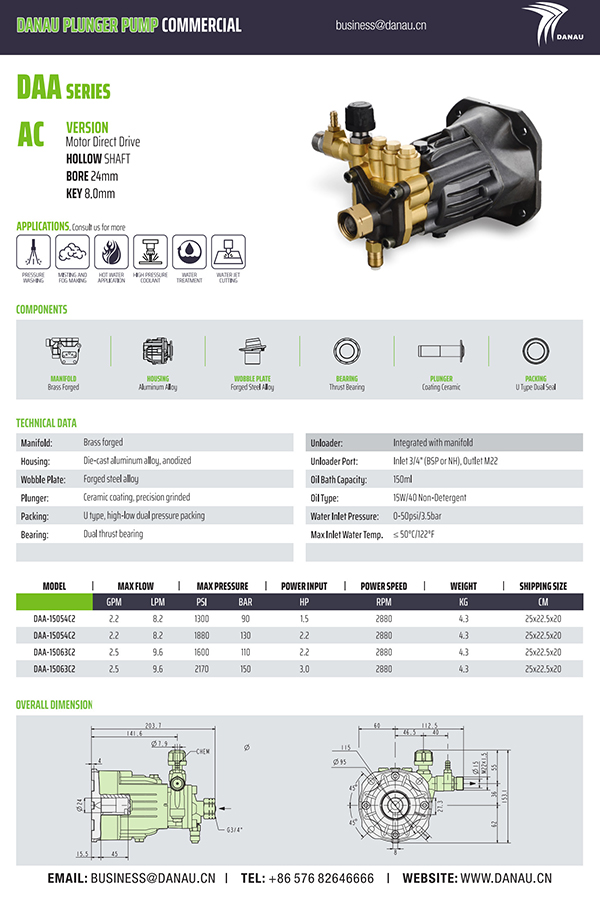

High Quality DAA-AC2 Type Consumer Axial Pump

Home / Products / Plunger Pump / Commercial Axial Pump / DAA Series Consumer Axial Pump / DAA-AC2 Type Consumer Axial Pump
  • DAA-AC2 Type Consumer Axial Pump

    DAA-AC2

DAA Series Consumer Axial Pump

DAA-AC2 Type Consumer Axial Pump

Code: DAA-AC2

Get a Quote +
PREV：DAA-A Type Consumer Axial Pump
NEXT：DAA-AC5 Type Consumer Axial Pump

TECHNICAL DATA

Plunger: Ceramic coating, precision grinded
Packing: U type, high-low dual pressure packing
Bearing: Dual thrust bearing
Unloader: Integrated with manifold
Unloader Port: Inlet 3/4" (BSP or NH), Outlet M22
Oil Bath Capacity: 150ml
Oil Type: 15W/40 Non-Detergent
Water Inlet Pressure: 0-50psi/3.5bar
Max Inlet Water Temp. ≤ 50°C/122°F

SPECIFICATION

MODEL: DAA-15054C2

Max Flow(GPM, LPM) 2.2, 8.2
Max Pressure(PSI, BAR) 1300, 90
Power Input(HP) 1.5
Power Speed(RPM) 2880
Weight(KG) 4.3
Shipping Size(CM) 25x22.5x20


MODEL: DAA-15054C2

Max Flow(GPM, LPM) 2.2, 8.2
Max Pressure(PSI, BAR) 1880, 130
Power Input(HP) 2.2
Power Speed(RPM) 2880
Weight(KG) 4.3
Shipping Size(CM) 25x22.5x20

MODEL: DAA-15063C2

Max Flow(GPM, LPM) 2.5, 9.6
Max Pressure(PSI, BAR) 1600, 110
Power Input(HP) 2.2
Power Speed(RPM) 2880
Weight(KG) 4.3
Shipping Size(CM) 25x22.5x20


MODEL: DAA-15063C2

Max Flow(GPM, LPM) 2.5, 9.6
Max Pressure(PSI, BAR) 2170, 150
Power Input(HP) 3.0
Power Speed(RPM) 2880
Weight(KG) 4.3
Shipping Size(CM) 25x22.5x20

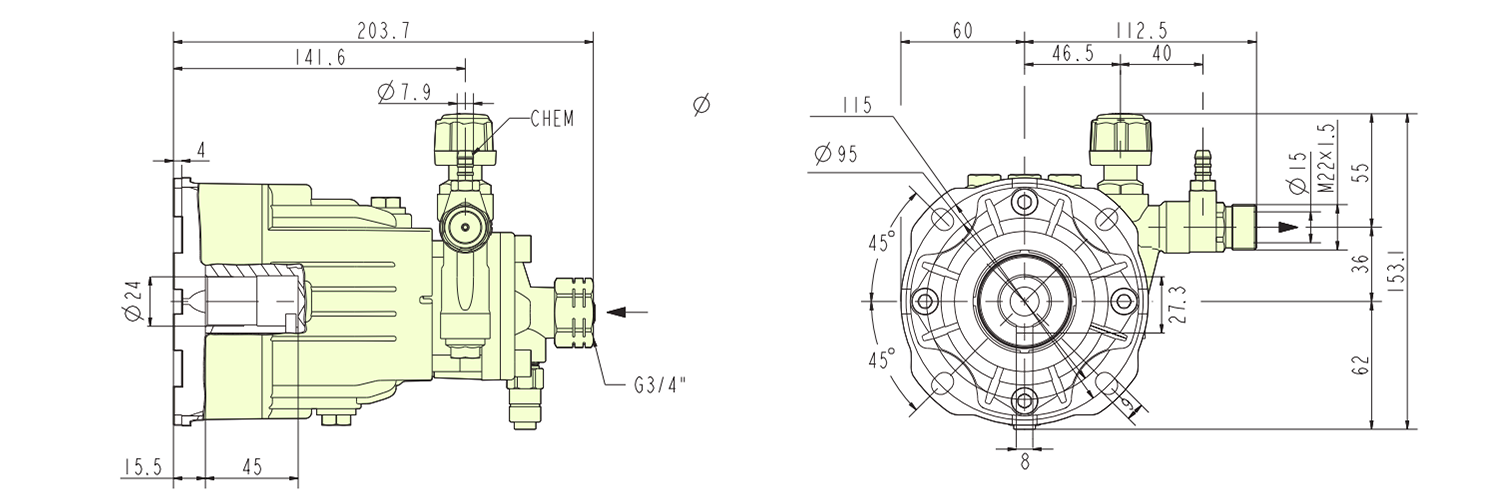

DIMENSION

COMPONENTS

  • MANIFOLD

    Brass Forged

  • HOUSING

    Aluminum Alloy

  • WOBBLE PLATE

    Forged Steel Alloy

  • BEARING

    Thrust Bearing

  • PLUNGER

    Coating Ceramic

  • PACKING

    U Type Dual Seal

APPLICATIONS

  • PRESSURE WASHING
  • MISTING AND FOG MAKING
  • HOT WATERAPPLICATION
  • HIGH PRESSURECOOLANT
  • WATER TREATMENT
  • WATER JETCUTTING

DOCUMENTS
