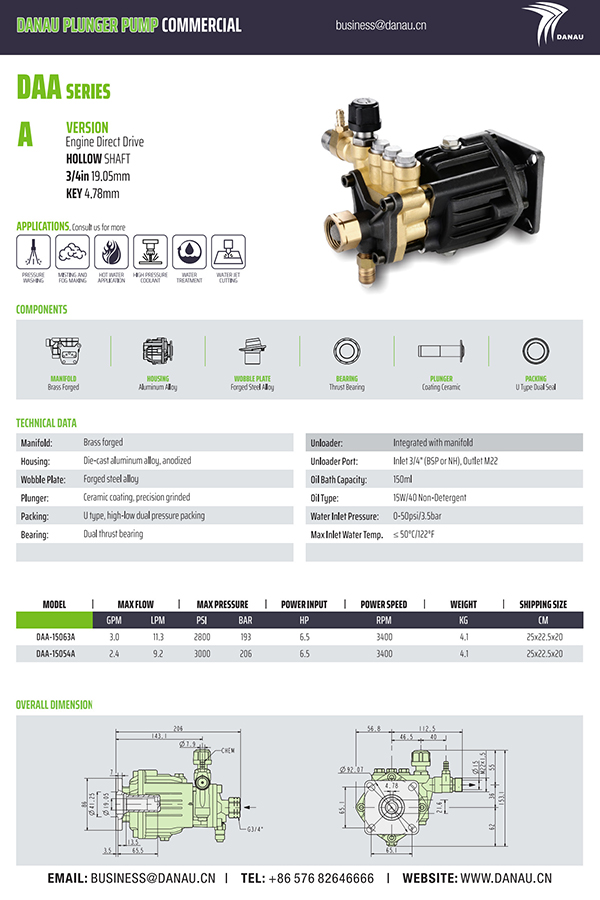

High Quality DAA-A Type Consumer Axial Pump

Home / Products / Plunger Pump / Commercial Axial Pump / DAA Series Consumer Axial Pump / DAA-A Type Consumer Axial Pump
  • DAA-A Type Consumer Axial Pump

    DAA-A

DAA Series Consumer Axial Pump

DAA-A Type Consumer Axial Pump

Code: DAA-A

Get a Quote +
PREV：No previous article
NEXT：DAA-AC2 Type Consumer Axial Pump

TECHNICAL DATA

Manifold: Brass forged
Housing: Die-cast aluminum alloy, anodized
Wobble Plate: Forged steel alloy
Plunger: Ceramic coating, precision grinded
Packing: U type, high-low dual pressure packing
Bearing: Dual thrust bearing
Unloader: Integrated with manifold
Unloader Port: Inlet 3/4" (BSP or NH), Outlet M22
Oil Bath Capacity: 150ml
Oil Type: 15W/40 Non-Detergent
Water Inlet Pressure: 0-50psi/3.5bar
Max Inlet Water Temp. ≤ 50°C/122°F

SPECIFICATION

MODEL: DAA-15063A

Max Flow(GPM, LPM) 3.0, 11.3
Max Pressure(PSI, BAR) 2800, 193
Power Input(HP) 6.5
Power Speed(RPM) 3400
Weight(KG) 4.1
Shipping Size(CM) 25x22.5x20


MODEL: DAA-15054A

Max Flow(GPM, LPM) 2.4, 9.2
Max Pressure(PSI, BAR) 3000, 206
Power Input(HP) 6.5
Power Speed(RPM) 3400
Weight(KG) 4.1
Shipping Size(CM) 25x22.5x20

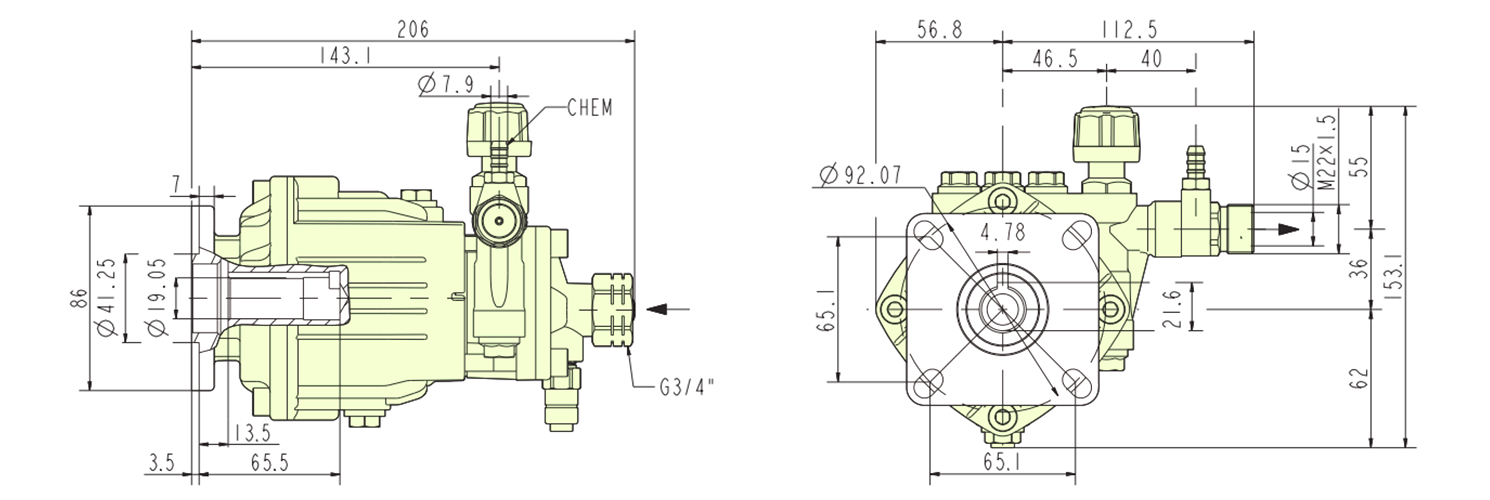

DIMENSION

COMPONENTS

  • MANIFOLD

    Brass Forged

  • HOUSING

    Aluminum Alloy

  • WOBBLE PLATE

    Forged Steel Alloy

  • BEARING

    Thrust Bearing

  • PLUNGER

    Coating Ceramic

  • PACKING

    U Type Dual Seal

APPLICATIONS

  • PRESSURE WASHING
  • MISTING AND FOG MAKING
  • HOT WATERAPPLICATION
  • HIGH PRESSURECOOLANT
  • WATER TREATMENT
  • WATER JETCUTTING

DOCUMENTS
