High Quality DBQ-A5 Type Engine Direct Drive Plunger Pump

Home / Products / Plunger Pump / Driving Type For Pump / Engine Direct Drive Plunger Pump / DBQ-A5 Type Engine Direct Drive Plunger Pump
  • DBQ-A5 Type Engine Direct Drive Plunger Pump

    DBQ-A5

Engine Direct Drive Plunger Pump

DBQ-A5 Type Engine Direct Drive Plunger Pump

Code: DBQ-A5

Get a Quote +
PREV：DBA-A Type Engine Direct Drive Plunger Pump
NEXT：DBQ-A Type Engine Direct Drive Plunger Pump

TECHNICAL DATA

Manifold: Brass forged
Crankcase: Die-cast aluminum alloy, anodized
Connecting Rod: One-piece aluminum alloy
Plunger: Ceramic coating, precision grinded
Packing: U-type, high-low dual pressure packing
Bearing: Dual tapered roller bearing
Crankshaft: Forged steel alloy, heat treatment, multiple process grinded
Head Port: Inlet 3/8", Outlet 1/2"
Unloader: Banjo bolt, trap type
Unloader Port: Inlet 3/4" (BSP or NH), Outlet 3/8" Quick Connect
Oil Bath Capacity: 550ml (half level of oil gauge)
Oil Type： 15W/40 Non-Detergent
Water Inlet Pressure: 0-50psi/3.5bar
Max Inlet Water Temp. ≤ 50°C/122°F

SPECIFICATION

MODEL: DBQ-1807A5

Max Flow(GPM, LPM) 4.7, 18
Max Pressure(PSI, BAR) 3600, 248
Power Input(KW) 13
Power Speed(RPM) 3400
Weight(KG) 10.3
Shipping Size(CM) 32x28.5x26

MODEL: DBQ-2007A5

Max Flow(GPM, LPM) 5.8, 22
Max Pressure(PSI, BAR) 2900, 200
Power Input(KW) 13
Power Speed(RPM) 3400
Weight(KG) 10.3
Shipping Size(CM) 32x28.5x26

MODEL: DBQ-2207A5

Max Flow(GPM, LPM) 7.1, 27
Max Pressure(PSI, BAR) 2400, 166
Power Input(KW) 13
Power Speed(RPM) 3400
Weight(KG) 10.3
Shipping Size(CM) 32x28.5x26

MODEL: DBQ-22085A5

Max Flow(GPM, LPM) 8.4, 32
Max Pressure(PSI, BAR) 2000, 138
Power Input(KW) 13
Power Speed(RPM) 3400
Weight(KG) 10.3
Shipping Size(CM) 32x28.5x26

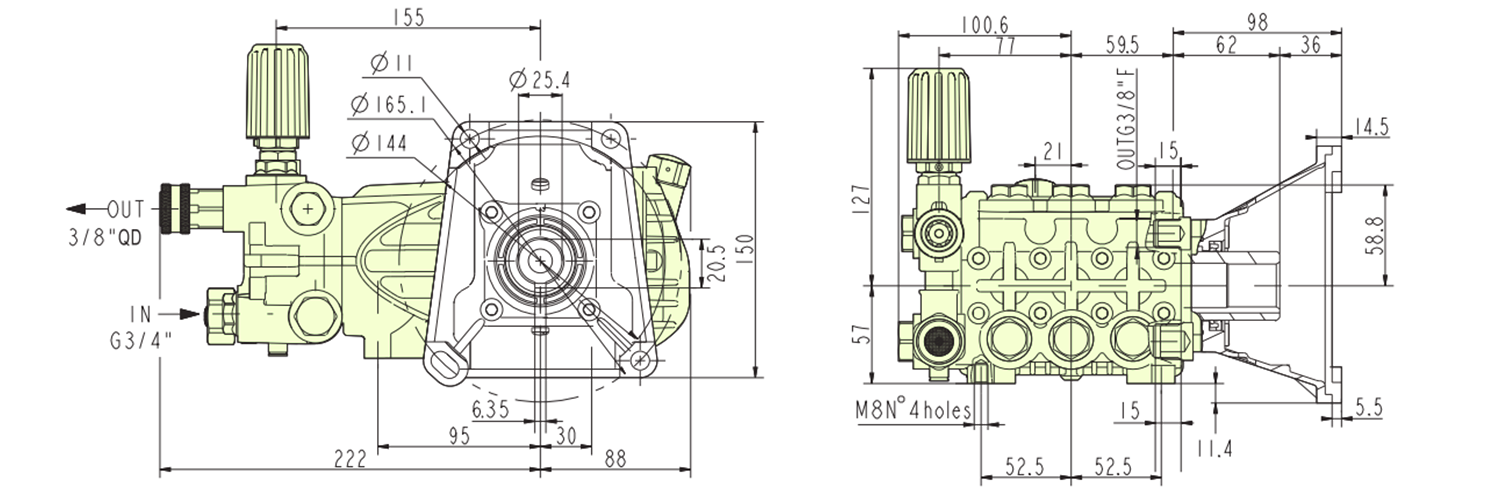

DIMENSION

COMPONENTS

  • MANIFOLD

    Brass Forged

  • CRANKCASE

    Aluminum Alloy

  • CRANKSHAFT

    Forged Steel Alloy

  • CONNECTING ROD

    Aluminum Alloy

  • PLUNGER

    Coating Ceramic

  • PACKING

    U Type Dual Seal

APPLICATIONS

  • PRESSURE WASHING
  • MISTING AND FOG MAKING
  • HOT WATERAPPLICATION
  • HIGH PRESSURECOOLANT
  • WATER TREATMENT
  • WATER JETCUTTING

DOCUMENTS
