  • DBA-A Type Engine Direct Drive Plunger Pump

    DBA-A-2

Engine Direct Drive Plunger Pump

DBA-A Type Engine Direct Drive Plunger Pump

Code: DBA-A

Get a Quote +
PREV：No previous article
NEXT：DBQ-A5 Type Engine Direct Drive Plunger Pump

TECHNICAL DATA

Manifold: Brass forged
Crankcase: Die-cast aluminum alloy, anodized
Connecting Rod: One piece aluminum alloy
Plunger: Ceramic coating, precision grinded
Packing: U-type, high-low dual pressure packing
Bearing: Dual ball bearing
Crankshaft: Forged steel alloy, heat treatment, multiple process grinded
Head Port: Inlet 1/4", Outlet 1/4"
Unloader: Integrated with manifold
Unloader Port: Inlet 3/4" (BSP or NH), Outlet 3/8" Quick Connect
Oil Bath Capacity: 220ml (half level of oil gauge)
Oil Type： 15W/40 Non-Detergent
Water Inlet Pressure: 0-50psi/3.5bar
Max Inlet Water Temp. ≤ 50°C/122°F

SPECIFICATION

MODEL: DBA-1210A

Max Flow(GPM, LPM) 3.0, 11.5
Max Pressure(PSI, BAR) 3000, 207
Power Input(HP) 6.5
Power Speed(RPM) 3400
Weight(KG) 5.5
Shipping Size(CM) 32x28.5x26


MODEL: DBA-1212A

Max Flow(GPM, LPM) 3.6, 13.8
Max Pressure(PSI, BAR) 3200, 220
Power Input(HP) 9
Power Speed(RPM) 3400
Weight(KG) 5.5
Shipping Size(CM) 32x28.5x26

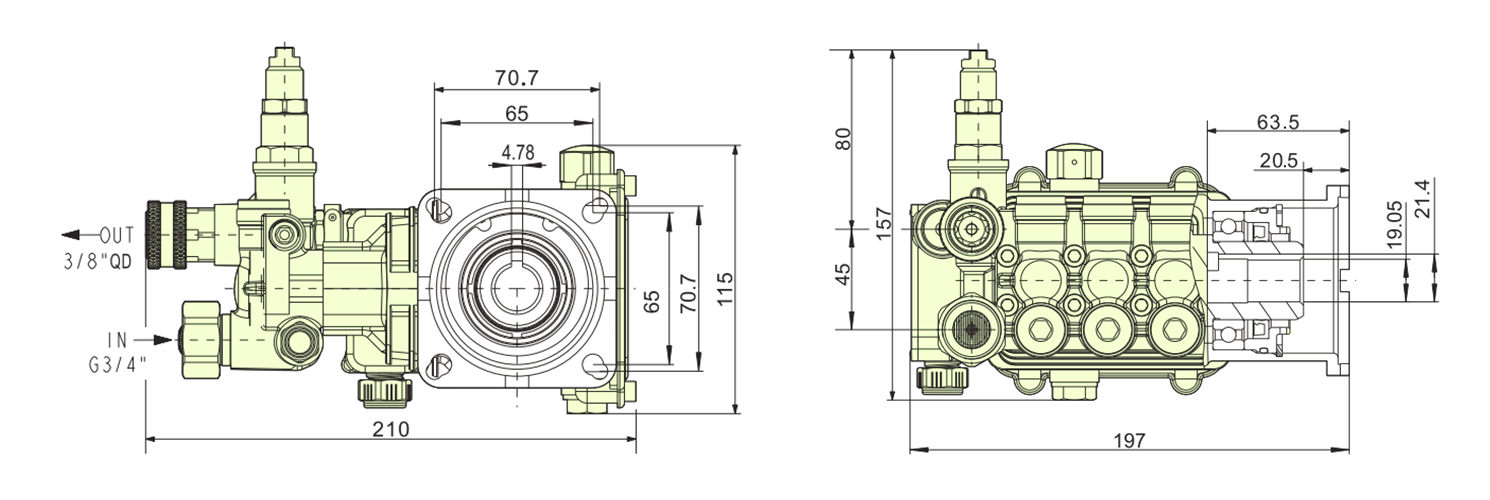

DIMENSION

COMPONENTS

  • MANIFOLD

    Unloader Integrated, Brass

  • CRANKCASE

    Aluminum Alloy

  • CRANKSHAFT

    Forged Steel Alloy

  • CONNECTING ROD

    Aluminum Alloy

  • PLUNGER

    Coating Ceramic

  • PACKING

    U Type Dual Seal

APPLICATIONS

  • PRESSURE WASHING
  • MISTING AND FOG MAKING
  • HOT WATERAPPLICATION
  • HIGH PRESSURECOOLANT
  • WATER TREATMENT
  • WATER JETCUTTING

DOCUMENTS
