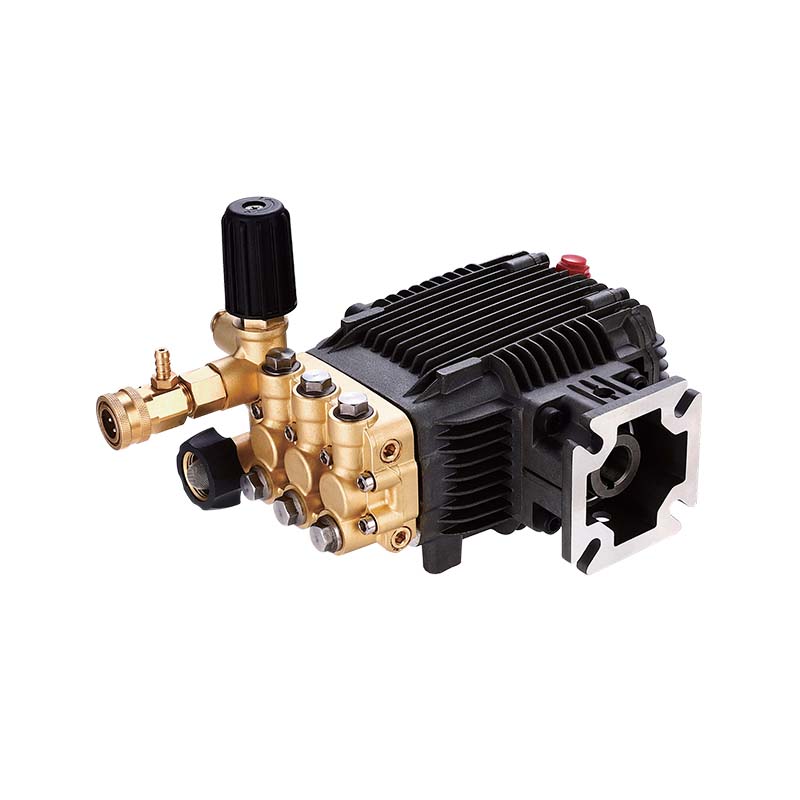

High Quality DBCL-A Type Engine Direct Drive Plunger Pump

Home / Products / Plunger Pump / Driving Type For Pump / Engine Direct Drive Plunger Pump / DBCL-A Type Engine Direct Drive Plunger Pump
  • DBCL-A Type Engine Direct Drive Plunger Pump

    DBCL-A

Engine Direct Drive Plunger Pump

DBCL-A Type Engine Direct Drive Plunger Pump

Code: DBCL-A

Get a Quote +
PREV：DBC-A Type Engine Direct Drive Plunger Pump
NEXT：No next article

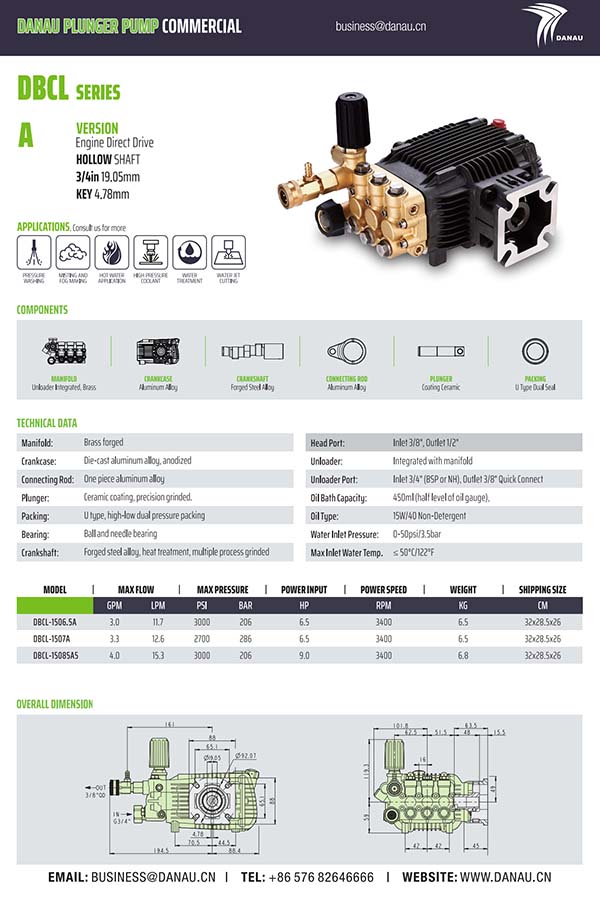

TECHNICAL DATA

Manifold: Brass forged
Crankcase: Die-cast aluminum alloy, anodized
Connecting Rod: One piece aluminum alloy
Plunger: Ceramic coating, precision grinded
Packing: U-type, high-low dual pressure packing
Bearing: Ball and needle bearing
Crankshaft: Forged steel alloy, heat treatment, multiple process grinded
Head Port: Inlet 3/8", Outlet 1/2"
Unloader: Banjo bolt, trap type
Unloader Port: Inlet 3/4" (BSP or NH), Outlet 3/8" Quick Connect
Oil Bath Capacity: 450ml (half level of oil gauge)
Oil Type： 15W/40 Non-Detergent
Water Inlet Pressure: 0-50psi/3.5bar
Max Inlet Water Temp. ≤ 50°C/122°F

SPECIFICATION

MODEL: DBCL-1506.5A

Max Flow(GPM, LPM) 3.0, 11.7
Max Pressure(PSI, BAR) 3000, 206
Power Input(HP) 6.5
Power Speed(RPM) 3400
Weight(KG) 6.5
Shipping Size(CM) 32x28.5x26


MODEL: DBCL-1507A

Max Flow(GPM, LPM) 3.3, 12.6
Max Pressure(PSI, BAR) 2700, 286
Power Input(HP) 6.5
Power Speed(RPM) 3400
Weight(KG) 6.5
Shipping Size(CM) 32x28.5x26

MODEL: DBCL-15085A5

Max Flow(GPM, LPM) 4.0, 15.3
Max Pressure(PSI, BAR) 3000, 206
Power Input(HP) 9.0
Power Speed(RPM) 3400
Weight(KG) 6.8
Shipping Size(CM) 32x28.5x26

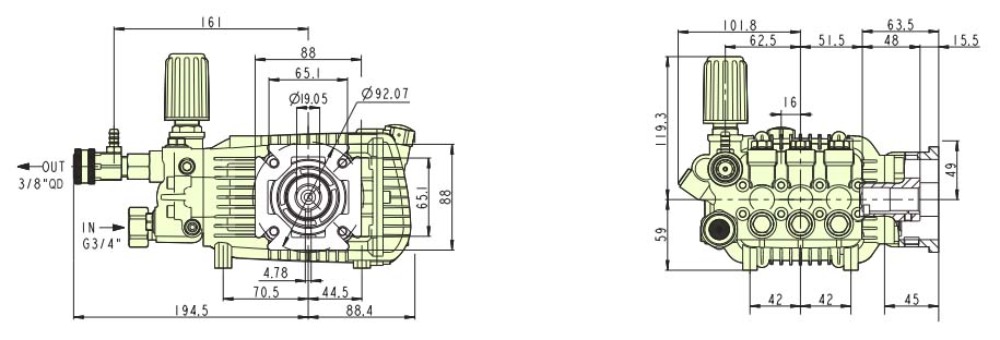

DIMENSION

COMPONENTS

  • MANIFOLD

    Unloader Integrated, Brass

  • CRANKCASE

    Aluminum Alloy

  • CRANKSHAFT

    Forged Steel Alloy

  • CONNECTING ROD

    Aluminum Alloy

  • PLUNGER

    Coating Ceramic

  • PACKING

    U Type Dual Seal

APPLICATIONS

  • PRESSURE WASHING
  • MISTING AND FOG MAKING
  • HOT WATERAPPLICATION
  • HIGH PRESSURECOOLANT
  • WATER TREATMENT
  • WATER JETCUTTING
