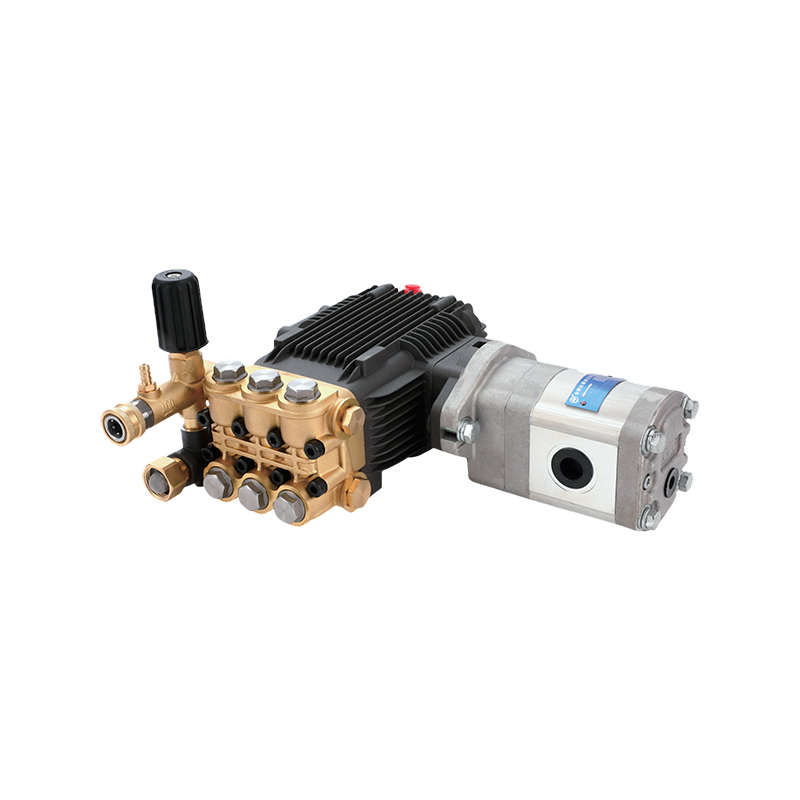

High Quality DBD-H Type Crankshaft Pump

Home / Products / Plunger Pump / Commercial Crankshaft Pump / DBD Series Crankshaft Pump / DBD-H Type Crankshaft Pump
  • DBD-H Type Crankshaft Pump

    DBD-H

DBD Series Crankshaft Pump

DBD-H Type Crankshaft Pump

Code: DBD-H

Get a Quote +
PREV：No previous article
NEXT：DBD-C3 Type Crankshaft Pump

TECHNICAL DATA

Manifold: Brass forged
Crankcase: Die-cast aluminum alloy, anodized
Connecting Rod: One-piece aluminum alloy
Plunger: Ceramic coating, precision grinded
Packing: U-type, high-low dual pressure packing
Bearing: Ball and needle bearing
Crankshaft: Forged steel alloy, heat treatment, multiple process grinded
Head Port: Inlet 3/8", Outlet 1/2"
Unloader: Banjo bolt, trap type
Unloader Port: Inlet 3/4" (BSP or NH), Outlet 3/8" Quick Connect
Oil Bath Capacity: 450ml (half level of oil gauge)
Oil Type： 15W/40 Non-Detergent
Water Inlet Pressure: 0-50psi/3.5bar
Max Inlet Water Temp. ≤ 50°C/122°F

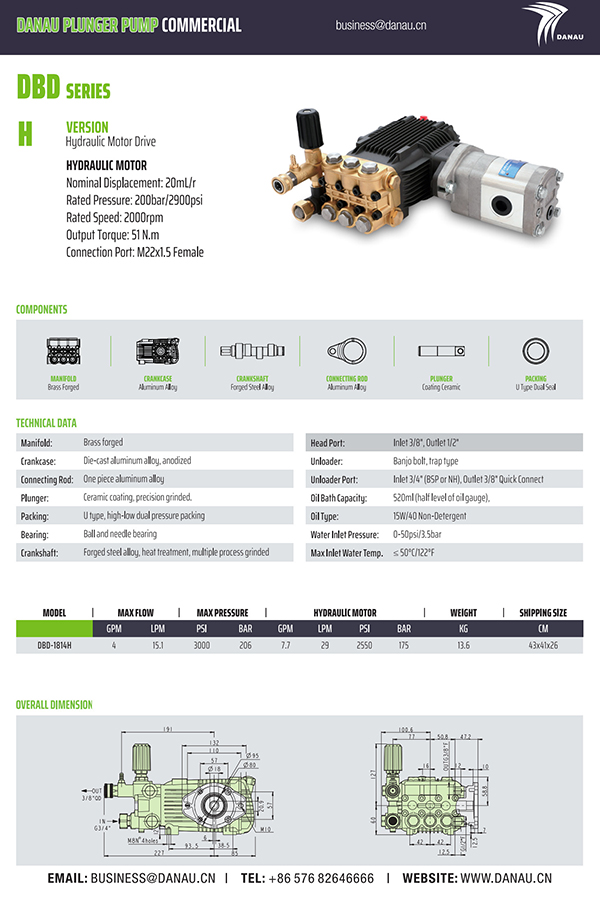

SPECIFICATION

MODEL: DBD-1814H

Max Flow(GPM, LPM) 4.0, 15.1
Max Pressure(PSI, BAR) 3000, 206
Hydraulic Motor(GPM,LPM,PSI,BAR) 7.7, 29, 2550, 175
Weight(KG) 13.6
Shipping Size(CM) 43x41x26

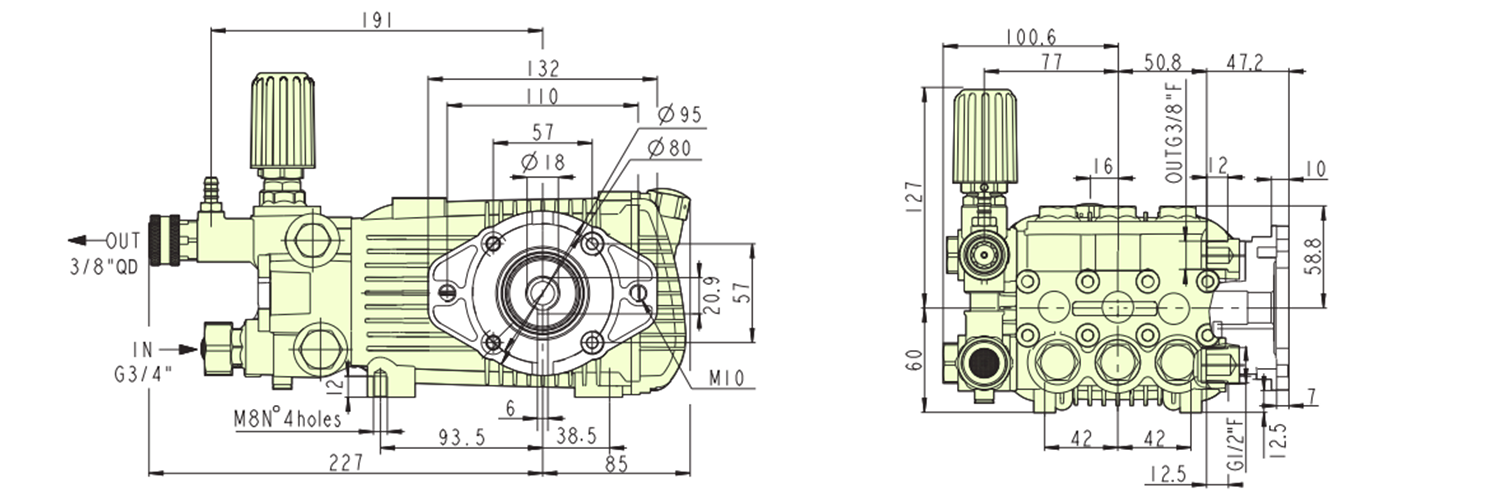

DIMENSION

COMPONENTS

  • MANIFOLD

    Brass Forged

  • CRANKCASE

    Aluminum Alloy

  • CRANKSHAFT

    Forged Steel Alloy

  • CONNECTING ROD

    Aluminum Alloy

  • PLUNGER

    Coating Ceramic

  • PACKING

    U Type Dual Seal

DOCUMENTS
