High Quality DBD-C3 Type Crankshaft Pump

Home / Products / Plunger Pump / Commercial Crankshaft Pump / DBD Series Crankshaft Pump / DBD-C3 Type Crankshaft Pump
  • DBD-C3 Type Crankshaft Pump

    DBD-C3

DBD Series Crankshaft Pump

DBD-C3 Type Crankshaft Pump

Code: DBD-C3

Get a Quote +
PREV：DBD-H Type Crankshaft Pump
NEXT：DBD-B Type Crankshaft Pump

TECHNICAL DATA

Manifold: Brass forged
Crankcase: Die-cast aluminum alloy, anodized
Connecting Rod: One-piece aluminum alloy
Plunger: Ceramic coating, precision grinded
Packing: U-type, high-low dual pressure packing
Bearing: Ball and needle bearing
Crankshaft: Forged steel alloy, heat treatment, multiple process grinded
Head Port: Inlet 3/8", Outlet 1/2"
Unloader: Banjo bolt, trap type
Unloader Port: Inlet 3/4" (BSP or NH), Outlet 3/8" Quick Connect
Oil Bath Capacity: 520ml (half level of oil gauge)
Oil Type： 15W/40 Non-Detergent
Water Inlet Pressure: 0-50psi/3.5bar
Max Inlet Water Temp. ≤ 50°C/122°F

SPECIFICATION

MODEL: DBD-1810C3

Max Flow(GPM, LPM) 2.9, 11
Max Pressure(PSI, BAR) 3600, 248
Power Input(KW) 5.5
Power Speed(RPM) 1450
Weight(KG) 10
Shipping Size(CM) 32x28.5x26

MODEL: DBD-1812C3

Max Flow(GPM, LPM) 3.5, 13.26
Max Pressure(PSI, BAR) 3000, 206
Power Input(KW) 5.5
Power Speed(RPM) 1450
Weight(KG) 10
Shipping Size(CM) 32x28.5x26

MODEL: DBD-1814C3

Max Flow(GPM, LPM) 4.1, 15.5
Max Pressure(PSI, BAR) 3600, 248
Power Input(KW) 7.5
Power Speed(RPM) 1450
Weight(KG) 10
Shipping Size(CM) 32x28.5x26

MODEL: DBD-2012C3

Max Flow(GPM, LPM) 4.3, 16.3
Max Pressure(PSI, BAR) 2500, 172
Power Input(KW) 5.5
Power Speed(RPM) 1450
Weight(KG) 10
Shipping Size(CM) 32x28.5x26

MODEL: DBD-2014C3

Max Flow(GPM, LPM) 5, 19
Max Pressure(PSI, BAR) 2900, 201
Power Input(KW) 7.5
Power Speed(RPM) 1450
Weight(KG) 10
Shipping Size(CM) 32x28.5x26

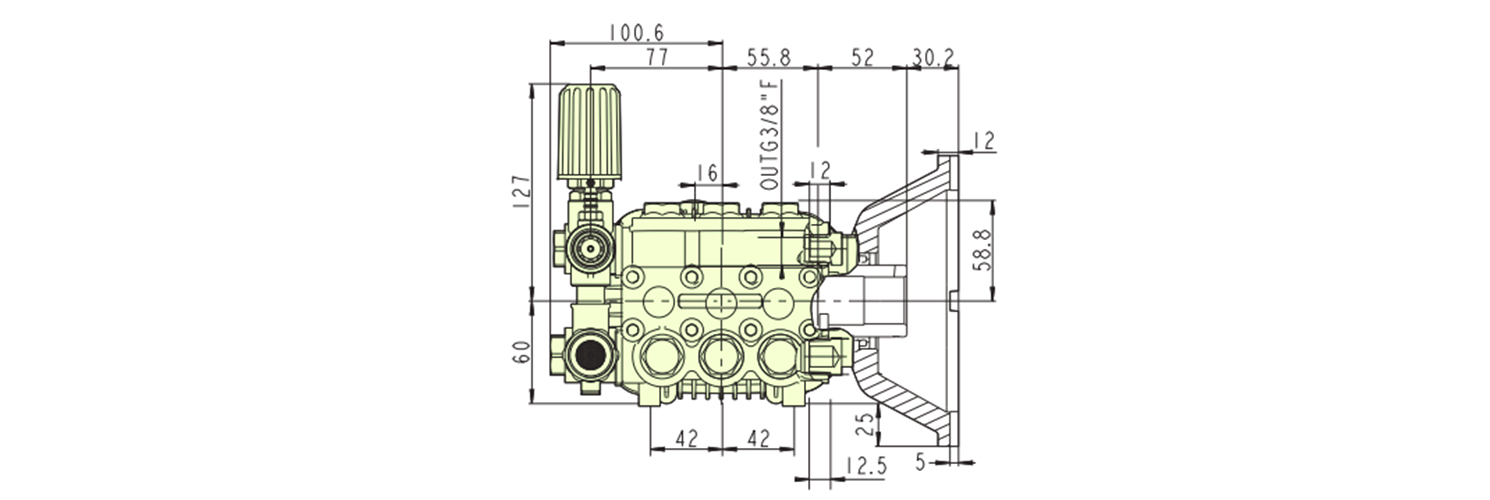

DIMENSION

COMPONENTS

  • MANIFOLD

    Brass Forged

  • CRANKCASE

    Aluminum Alloy

  • CRANKSHAFT

    Forged Steel Alloy

  • CONNECTING ROD

    Aluminum Alloy

  • PLUNGER

    Coating Ceramic

  • PACKING

    U Type Dual Seal

APPLICATIONS

  • PRESSURE WASHING
  • MISTING AND FOG MAKING
  • HOT WATERAPPLICATION
  • HIGH PRESSURECOOLANT
  • WATER TREATMENT
  • WATER JETCUTTING

DOCUMENTS
