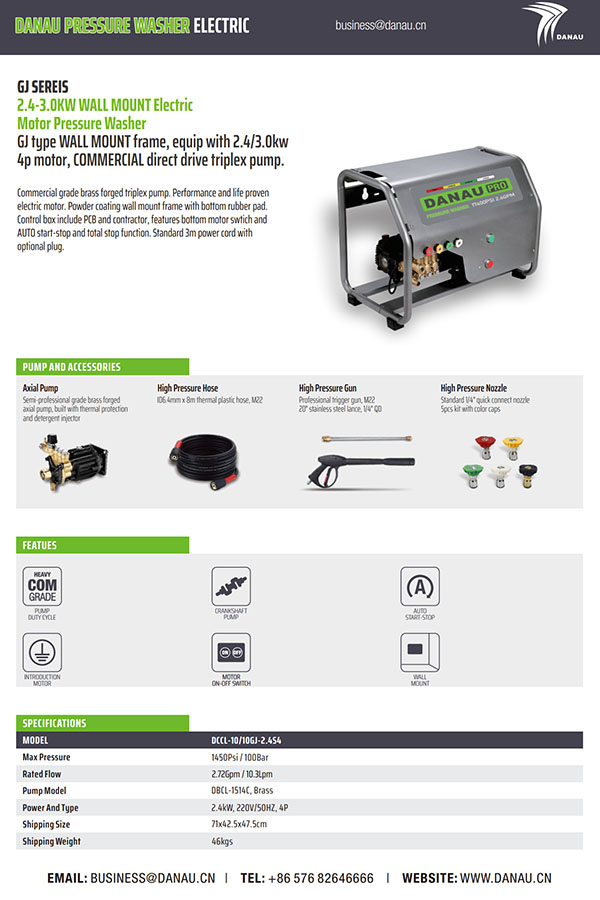

GJ SEREIS 2.4-3.0KW WALL MOUNT Electric Motor Pressure Washer

GJ type WALL MOUNT frame, equip with 2.4/3.0kw 4p motor, COMMERCIAL direct drive triplex pump.

Commercial grade brass forged triplex pump. Performance and life proven electric motor. Powder coating wall mount frame with bottom rubber pad. Control box include PCB and contractor, features bottom motor swtich and AUTO start-stop and total stop function. Standard 3m power cord with optional plug.

Get a Quote +

PREV：No previous article
NEXT：TM SEREIS 5.5-7.5KW WALL MOUNT Electric Motor Pressure Washer

SPECIFICATION
DIMENSION
COMPONENTS
APPLICATIONS
DOCUMENTS

SPECIFICATION

MODEL: DCCL-10/10GJ-2.4S4

Max Pressure	1450Psi / 100Bar
Rated Flow	2.72Gpm / 10.3Lpm
Pump Model	DBCL-1514C, Brass
Power And Type	2.4kW, 220V/50HZ, 4P
Shipping Size	71x42.5x47.5c
Shipping Weight	46kgs

MODEL: DCCL-10/15GJ-3T4

Max Pressure	1450Psi / 100Bar
Rated Flow	4.0Gpm / 15Lpm
Pump Model	DBCL-1812C2, Brass
Power And Type	3.0kW, 380V/50HZ, 4P
Shipping Size	71x42.5x47.5cm
Shipping Weight	50kgs

COMPONENTS

Axial Pump

Semi-professional grade brass forged axial pump, built with thermal protection and detergent injector
High Pressure Hose

ID6.4mm x 8m thermal plastic hose, M22
High Pressure Gun

Professional trigger gun, M22 20" stainless steel lance, 1/4" QD
High Pressure Nozzle

Standard 1/4" quick connect nozzle 5pcs kit with color caps
