High Quality DBCL-15C2 Type Motor Direct Drive Plunger Pump

Home / Products / Plunger Pump / Driving Type For Pump / Motor Direct Drive Plunger Pump / DBCL-15C2 Type Motor Direct Drive Plunger Pump
  • DBCL-15C2 Type Motor Direct Drive Plunger Pump

    DBCL-15C2

Motor Direct Drive Plunger Pump

DBCL-15C2 Type Motor Direct Drive Plunger Pump

Code: DBCL-15C2

Get a Quote +
PREV：DBCL-18C2 Type Motor Direct Drive Plunger Pump
NEXT：DBCL-C Type Motor Direct Drive Plunger Pump

TECHNICAL DATA

Manifold: Brass forged
Crankcase: Die-cast aluminum alloy, anodized
Connecting Rod: One-piece aluminum alloy
Plunger: Ceramic coating, precision grinded
Packing: U-type, high-low dual pressure packing
Bearing: Ball and needle bearing
Crankshaft: Forged steel alloy, heat treatment, multiple process grinded
Head Port: Inlet 3/8", Outlet 1/2"
Unloader: Integrated with manifold
Unloader Port: Inlet 3/4" (BSP or NH), Outlet 3/8" Quick Connect
Oil Bath Capacity: 450ml (half level of oil gauge)
Oil Type： 15W/40 Non-Detergent
Water Inlet Pressure: 0-50psi/3.5bar
Max Inlet Water Temp. ≤ 50°C/122°F

SPECIFICATION

MODEL: DBCL-1510C2

Max Flow(GPM, LPM) 4.0, 15.2
Max Pressure(PSI, BAR) 1450, 100
Power Input(KW) 3
Power Speed(RPM) 2880
Weight(KG) 6.5
Shipping Size(CM) 43x41x26


MODEL: DBCL-1510.5C2

Max Flow(GPM, LPM) 2.1, 8
Max Pressure(PSI, BAR) 2000, 138
Power Input(KW) 2.2
Power Speed(RPM) 1440
Weight(KG) 6.5
Shipping Size(CM) 43x41x26

MODEL: DBCL-1512.5C2

Max Flow(GPM, LPM) 2.5, 9.5
Max Pressure(PSI, BAR) 2200, 150
Power Input(KW) 3
Power Speed(RPM) 1440
Weight(KG) 6.5
Shipping Size(CM) 43x41x26


MODEL: DBCL-1514C2

Max Flow(GPM, LPM) 2.8, 10.7
Max Pressure(PSI, BAR) 2700, 186
Power Input(KW) 4
Power Speed(RPM) 1440
Weight(KG) 6.5
Shipping Size(CM) 43x41x26

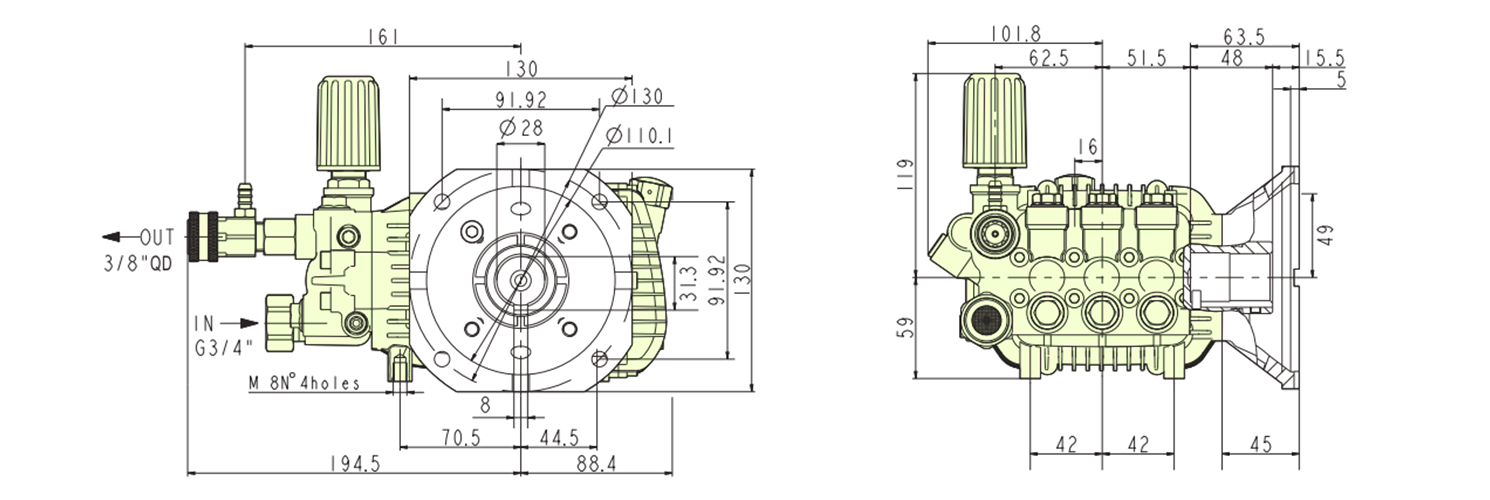

DIMENSION

COMPONENTS

  • MANIFOLD

    Unloader Integrated, Brass

  • CRANKCASE

    Aluminum Alloy

  • CRANKSHAFT

    Forged Steel Alloy

  • CONNECTING ROD

    Aluminum Alloy

  • PLUNGER

    Coating Ceramic

  • PACKING

    U Type Dual Seal

APPLICATIONS

  • PRESSURE WASHING
  • MISTING AND FOG MAKING
  • HOT WATERAPPLICATION
  • HIGH PRESSURECOOLANT
  • WATER TREATMENT
  • WATER JETCUTTING

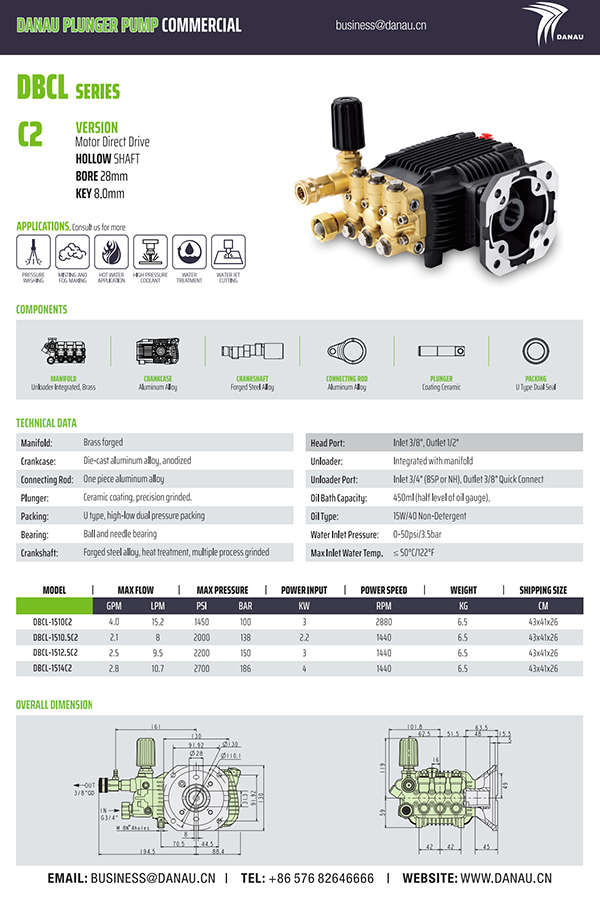

DOCUMENTS
