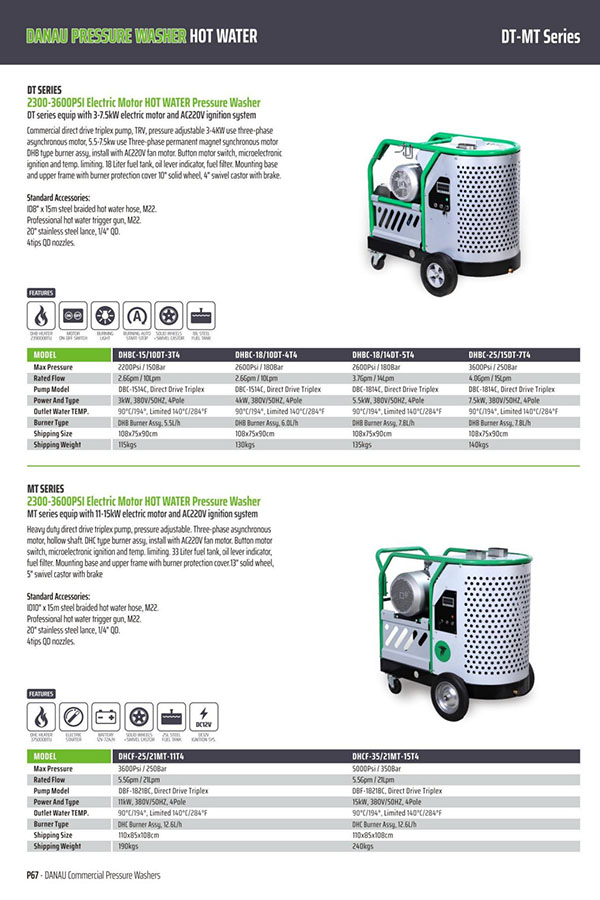

High Quality DT Series 2300-3600psi Electric Motor Hot Water Pressure Washer

Home / Products / High Pressure Washer / Hot Water High Pressure Washer / Electric Hot Water Pressure Washer / DT Series 2300-3600psi Electric Motor Hot Water Pressure Washer
  • DT Series 2300-3600psi Electric Motor Hot Water Pressure Washer

    DT Series

Electric Hot Water Pressure Washer

DT Series 2300-3600psi Electric Motor Hot Water Pressure Washer

Commercial direct drive triplex pump, TRV, pressure adjustable 3-4KW use three-phase asynchronous motor, 5.5-7.5kw use Three-phase permanent magnet synchronous motor DHB type burner assy, install with AC220V fan motor. Button motor switch, microelectronic ignition and temp. limiting. 18 Liter fuel tank, oil lever indicator, fuel filter. Mounting base and upper frame with burner protection cover 10" solid wheel, 4" swivel castor with brake.

Standard Accessories:

ID8" x 15m steel braided hot water hose, M22.

Professional hot water trigger gun, M22.

20" stainless steel lance,1/4" QD.

4tips Q0 nozzles.

Get a Quote +
PREV：No previous article
NEXT：MT Series 2300-3600psi Electric Motor Hot Water Pressure Washer

SPECIFICATION

MODEL: DHBC-15/10DT-3T4

Model DHBC-15/10DT-3T4
Max Pressure 2200Psi / 150Bar
Rated Flow 2.6Gpm / 10Lpm
Pump Model DBC-1514C, Direct Drive Triplex
Power And Type 3 kW, 380 V/50 Hz, 4-pole motor
Outlet Water TEMP. 90°C/194°F (standard), up to 140°C/284°F
Burner Type DHB Burner Assy, 5.5L/h
Shipping Size 108×75×90cm
Shipping Weight 115kgs

MODEL: DHBC-18/10DT-4T4

Model DHBC-18/10DT-4T4
Max Pressure 2200Psi / 180Bar
Rated Flow 2.6Gpm / 10Lpm
Pump Model DBC-1514C, Direct Drive Triplex
Power And Type 4kW, 380 V/50 Hz, 4-pole motor
Outlet Water TEMP. 90°C/194°F (standard), up to 140°C/284°F
Burner Type DHB Burner Assy, 6.0L/h
Shipping Size 108×75×90cm
Shipping Weight 130kgs

MODEL: DHBC-18/14DT-5T4

Model DHBC-18/14DT-5T4
Max Pressure 2200Psi / 150Bar
Rated Flow 3.7Gpm / 14Lpm
Pump Model DBC-1814C, Direct Drive Triplex
Power And Type 5.5kW, 380 V/50 Hz, 4-pole motor
Outlet Water TEMP. 90°C/194°F (standard), up to 140°C/284°F
Burner Type DHB Burner Assy, 7.8L/h
Shipping Size 108×75×90cm
Shipping Weight 135kgs

MODEL: DHBC-25/15DT-7T4

Model DHBC-25/15DT-7T4
Max Pressure 3600Psi / 250Bar
Rated Flow 4.0Gpm / 15Lpm
Pump Model DBC-1814C, Direct Drive Triplex
Power And Type 7.5kW, 380 V/50 Hz, 4-pole motor
Outlet Water TEMP. 90°C/194°F (standard), up to 140°C/284°F
Burner Type DHB Burner Assy, 7.8L/h
Shipping Size 108×75×90cm
Shipping Weight 140kgs

APPLICATIONS

  • DHB HEATER 23900DBTU
  • MOTOR ON-OFF SWITCH
  • BURNING LIGHT
  • BURNING AUTO START-STOP
  • SOUD WHEELS SWIVEL CASTOR
  • 18L STEEL FUEL TANK
