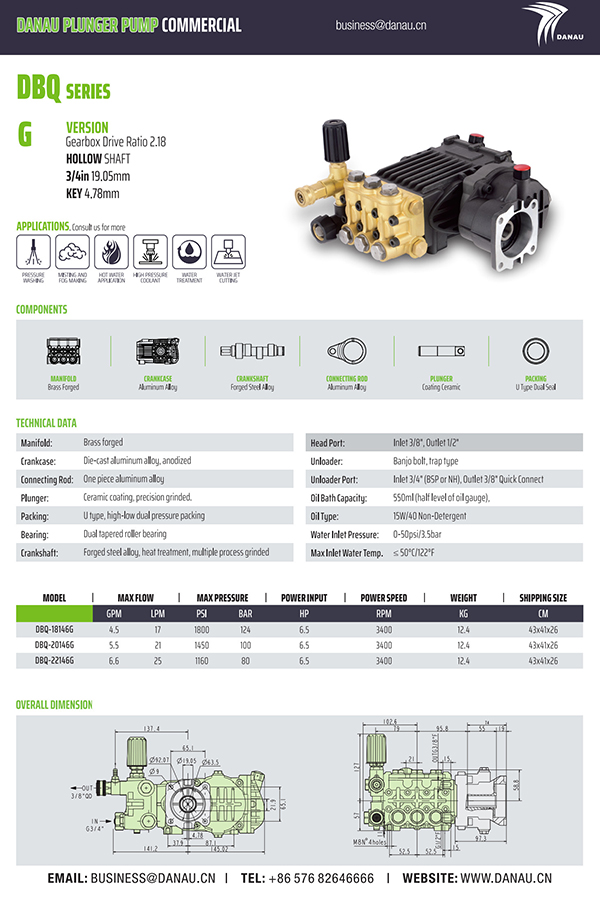

High Quality DBQ-G Type Crankshaft Pump

Home / Products / Plunger Pump / Commercial Crankshaft Pump / DBQ Series Crankshaft Pump / DBQ-G Type Crankshaft Pump
  • DBQ-G Type Crankshaft Pump

    DBQ-G

DBQ Series Crankshaft Pump

DBQ-G Type Crankshaft Pump

Code: DBQ-G

Get a Quote +
PREV：DBQ-G4 Type Crankshaft Pump
NEXT：DBQ-C3 Type Crankshaft Pump

TECHNICAL DATA

Manifold: Brass forged
Crankcase: Die-cast aluminum alloy, anodized
Connecting Rod: One-piece aluminum alloy
Plunger: Ceramic coating, precision grinded
Packing: U-type, high-low dual pressure packing
Bearing: Dual tapered roller bearing
Crankshaft: Forged steel alloy, heat treatment, multiple process grinded
Head Port: Inlet 3/8", Outlet 1/2"
Unloader: Banjo bolt, trap type
Unloader Port: Inlet 3/4" (BSP or NH), Outlet 3/8" Quick Connect
Oil Bath Capacity: 550ml (half level of oil gauge)
Oil Type： 15W/40 Non-Detergent
Water Inlet Pressure: 0-50psi/3.5bar
Max Inlet Water Temp. ≤ 50°C/122°F

SPECIFICATION

MODEL: DBQ-18146G

Max Flow(GPM, LPM) 4.5, 17
Max Pressure(PSI, BAR) 1800, 124
Power Input(KW) 6.5
Power Speed(RPM) 3400
Weight(KG) 12.4
Shipping Size(CM) 43x41x26

MODEL: DBQ-20146G

Max Flow(GPM, LPM) 5.5, 21
Max Pressure(PSI, BAR) 1450, 100
Power Input(KW) 6.5
Power Speed(RPM) 3400
Weight(KG) 12.4
Shipping Size(CM) 43x41x26

MODEL: DBQ-22146G

Max Flow(GPM, LPM) 6.6, 25
Max Pressure(PSI, BAR) 1160, 80
Power Input(KW) 6.5
Power Speed(RPM) 3400
Weight(KG) 12.4
Shipping Size(CM) 43x41x26

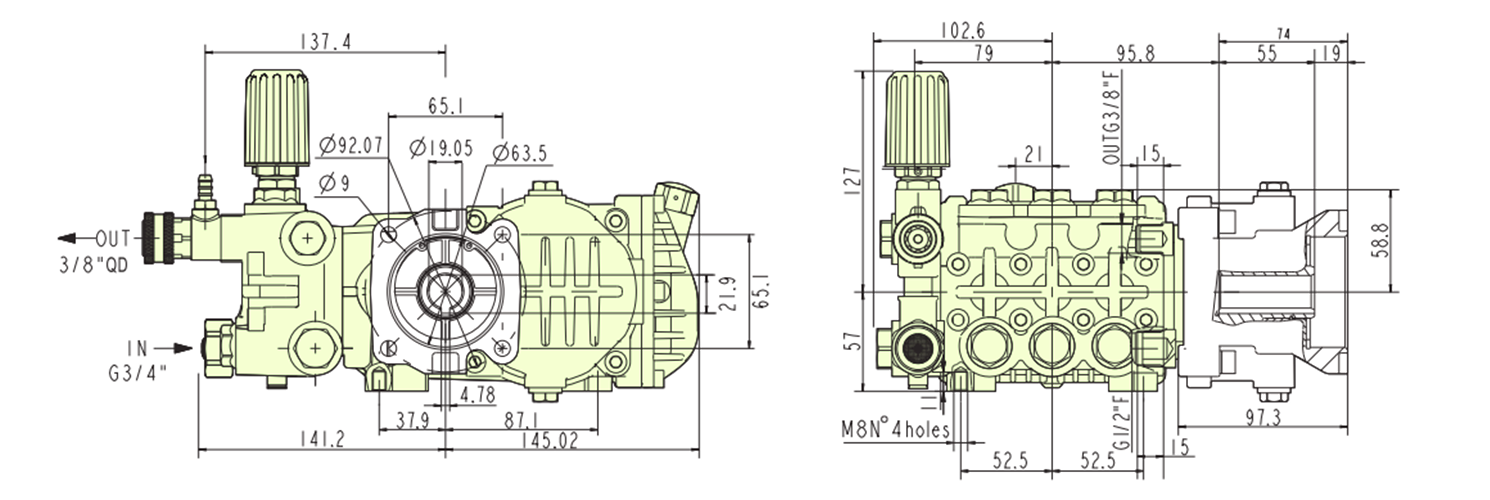

DIMENSION

COMPONENTS

  • MANIFOLD

    Brass Forged

  • CRANKCASE

    Aluminum Alloy

  • CRANKSHAFT

    Forged Steel Alloy

  • CONNECTING ROD

    Aluminum Alloy

  • PLUNGER

    Coating Ceramic

  • PACKING

    U Type Dual Seal

APPLICATIONS

  • PRESSURE WASHING
  • MISTING AND FOG MAKING
  • HOT WATERAPPLICATION
  • HIGH PRESSURECOOLANT
  • WATER TREATMENT
  • WATER JETCUTTING
