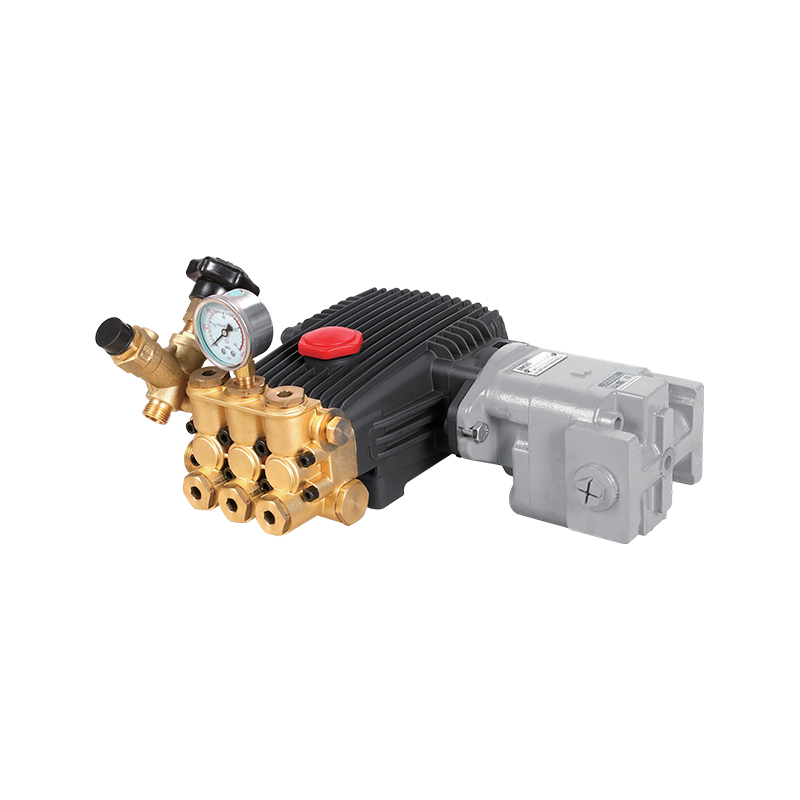

High Quality DBE-B Type Crankshaft Pump

Home / Products / Plunger Pump / Commercial Crankshaft Pump / DBE Series Crankshaft Pump / DBE-B Type Crankshaft Pump
  • DBE-B Type Crankshaft Pump

    DBE-B

DBE Series Crankshaft Pump

DBE-B Type Crankshaft Pump

Code: DBE-B

Get a Quote +
PREV：DBE-C3 Type Crankshaft Pump
NEXT：No next article

TECHNICAL DATA

Manifold: Brass forged
Crankcase: Die-cast aluminum alloy, anodized
Connecting Rod: One-piece aluminum alloy
Plunger: Ceramic coating, precision grinded
Packing: U-type, high-low dual pressure packing
Bearing: Ball and needle bearing
Crankshaft: Forged steel alloy, heat treatment, multiple process grinded
Head Port: Inlet 3/4", Outlet 3/8"
Unloader: Banjo bolt, trap type
Unloader Port: Outlet M22, Bypass 1/2"
Oil Bath Capacity: 550ml (half level of oil gauge)
Oil Type： 15W/40 Non-Detergent
Water Inlet Pressure: 0-50psi/3.5bar
Max Inlet Water Temp. ≤ 50°C/122°F

SPECIFICATION

MODEL: DBE-2218B

Max Flow(GPM, LPM) 7.6, 29
Max Pressure(PSI, BAR) 1740, 124
Power Input(KW) 7.5
Power Speed(RPM) 1450
Weight(KG) 10
Shipping Size(CM) 34.5x30x22

MODEL: DBE-2518B

Max Flow(GPM, LPM) 10, 38
Max Pressure(PSI, BAR) 1450, 100
Power Input(KW) 7.5
Power Speed(RPM) 1450
Weight(KG) 10
Shipping Size(CM) 34.5x30x22

DIMENSION

COMPONENTS

  • MANIFOLD

    Brass Forged

  • CRANKCASE

    Aluminum Alloy

  • CRANKSHAFT

    Forged Steel Alloy

  • CONNECTING ROD

    Aluminum Alloy

  • PLUNGER

    Coating Ceramic

  • PACKING

    U Type Dual Seal

APPLICATIONS

  • PRESSURE WASHING
  • MISTING AND FOG MAKING
  • HOT WATERAPPLICATION
  • HIGH PRESSURECOOLANT
  • WATER TREATMENT
  • WATER JETCUTTING
