High Quality DBC-G Type Crankshaft Pump

Home / Products / Plunger Pump / Commercial Crankshaft Pump / DBC Series Crankshaft Pump / DBC-G Type Crankshaft Pump
  • DBC-G Type Crankshaft Pump

    DBC-G

DBC Series Crankshaft Pump

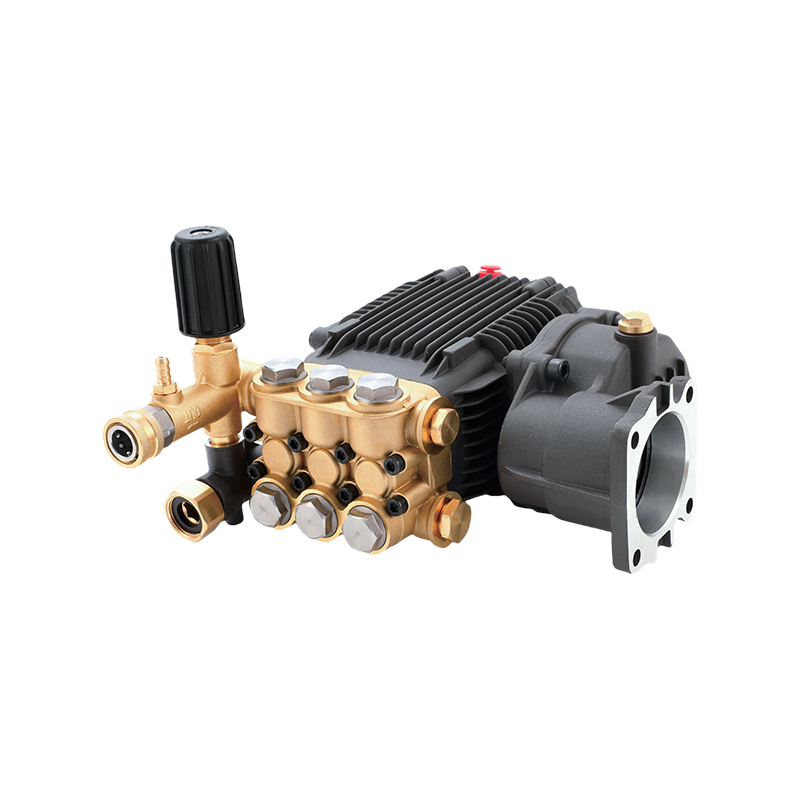

DBC-G Type Crankshaft Pump

Code: DBC-G

Get a Quote +
PREV：DBC-C5 Type Crankshaft Pump
NEXT：DBC-G4 Type Crankshaft Pump

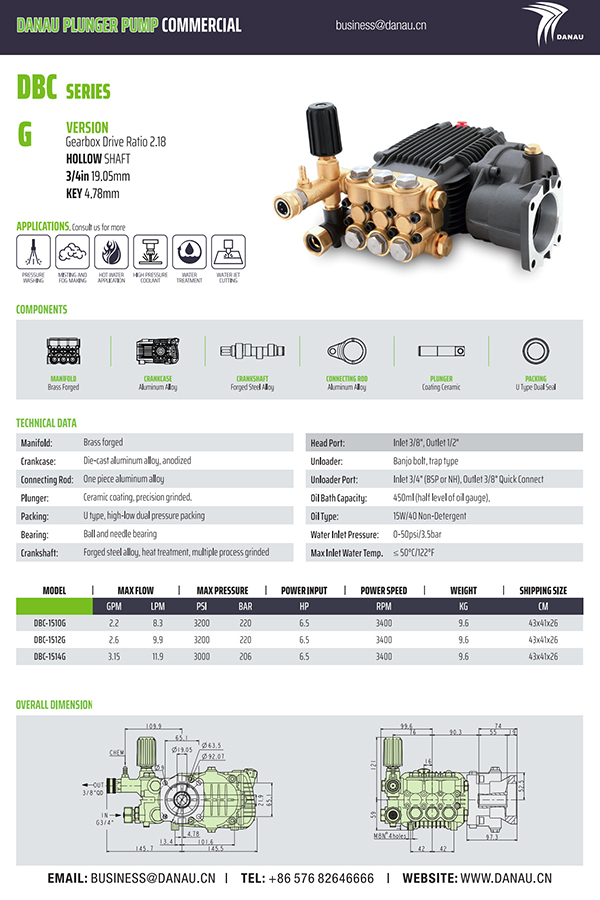

TECHNICAL DATA

Manifold: Brass forged
Crankcase: Die-cast aluminum alloy, anodized
Connecting Rod: One-piece aluminum alloy
Plunger: Ceramic coating, precision grinded
Packing: U-type, high-low dual pressure packing
Bearing: Ball and needle bearing
Crankshaft: Forged steel alloy, heat treatment, multiple process grinded
Head Port: Inlet 3/8", Outlet 1/2"
Unloader: Banjo bolt, trap type
Unloader Port: Inlet 3/4" (BSP or NH), Outlet 3/8" Quick Connect
Oil Bath Capacity: 450ml (half level of oil gauge)
Oil Type： 15W/40 Non-Detergent
Water Inlet Pressure: 0-50psi/3.5bar
Max Inlet Water Temp. ≤ 50°C/122°F

SPECIFICATION

MODEL: DBC-1510G

Max Flow(GPM, LPM) 2.2, 8.3
Max Pressure(PSI, BAR) 3200, 220
Power Input(HP) 6.5
Power Speed(RPM) 3400
Weight(KG) 9.6
Shipping Size(CM) 43x41x26


MODEL: DBC-1512G

Max Flow(GPM, LPM) 2.6, 9.9
Max Pressure(PSI, BAR) 3200, 220
Power Input(HP) 6.5
Power Speed(RPM) 3400
Weight(KG) 9.6
Shipping Size(CM) 43x41x26

MODEL: DBC-1514G

Max Flow(GPM, LPM) 3.15, 11.9
Max Pressure(PSI, BAR) 3000, 206
Power Input(HP) 6.5
Power Speed(RPM) 3400
Weight(KG) 9.6
Shipping Size(CM) 43x41x26

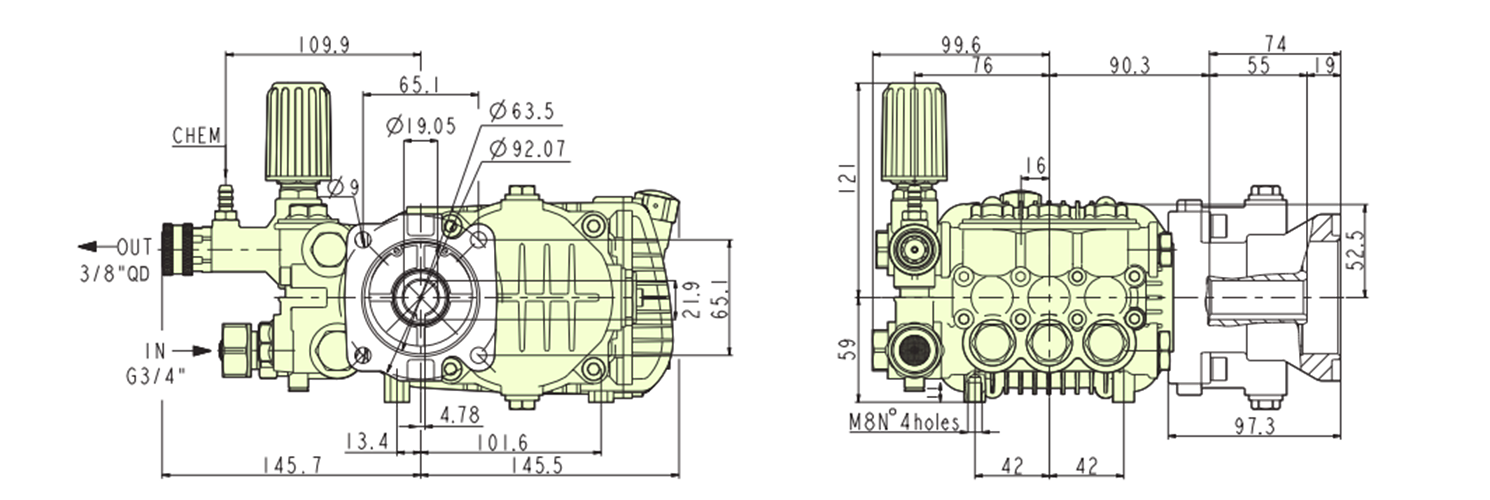

DIMENSION

COMPONENTS

  • MANIFOLD

    Brass Forged

  • CRANKCASE

    Aluminum Alloy

  • CRANKSHAFT

    Forged Steel Alloy

  • CONNECTING ROD

    Aluminum Alloy

  • PLUNGER

    Coating Ceramic

  • PACKING

    U Type Dual Seal

APPLICATIONS

  • PRESSURE WASHING
  • MISTING AND FOG MAKING
  • HOT WATERAPPLICATION
  • HIGH PRESSURECOOLANT
  • WATER TREATMENT
  • WATER JETCUTTING
