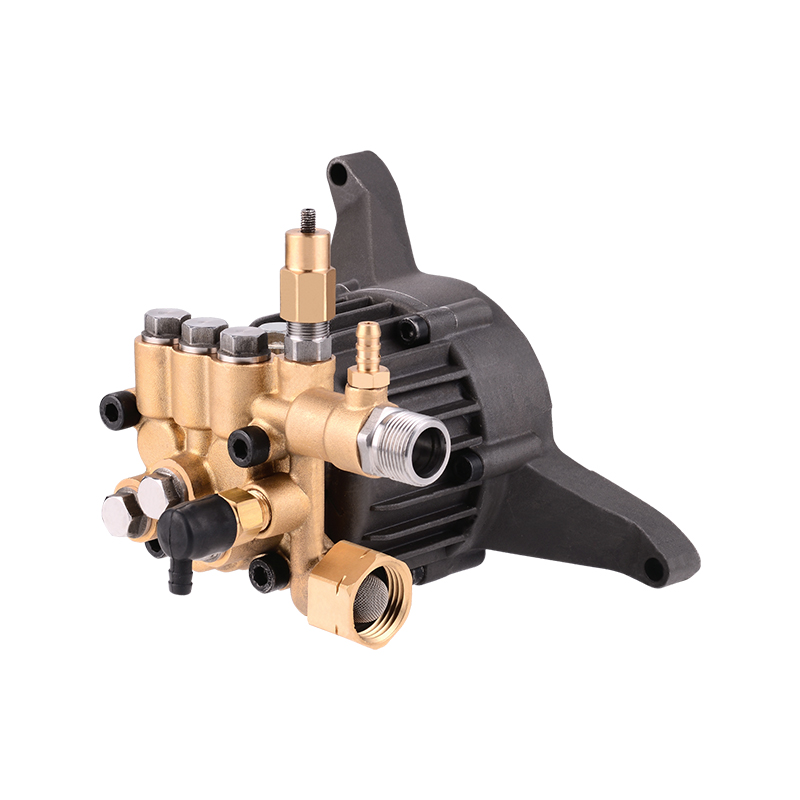

High Quality DAC-V Type Consumer Axial Pump

Home / Products / Plunger Pump / Commercial Axial Pump / DAC Series Consumer Axial Pump / DAC-V Type Consumer Axial Pump
  • DAC-V Type Consumer Axial Pump

    DAC-V

DAC Series Consumer Axial Pump

DAC-V Type Consumer Axial Pump

Code: DAC-V

Get a Quote +
PREV：DAC-A Type Consumer Axial Pump
NEXT：No next article

TECHNICAL DATA

Plunger: Ceramic coating, precision grinded
Packing: U-type, high-low dual pressure packing
Bearing: Dual thrust bearing
Unloader: Integrated with manifold
Unloader Port: Inlet 3/4" (BSP or NH), Outlet M22
Oil Bath Capacity: 120ml
Oil Type： 15W/40 Non-Detergent
Water Inlet Pressure: 0-50psi/3.5bar
Max Inlet Water Temp. ≤ 50°C/122°F

SPECIFICATION

MODEL: DAC-13071V

Max Flow(GPM, LPM) 2.0, 7.6
Max Pressure(PSI, BAR) 2400, 166
Power Input(HP) 6.5
Power Speed(RPM) 3440
Weight(KG) 3.7
Shipping Size(CM) 25x22.5x20


MODEL: DAC-14067V

Max Flow(GPM, LPM) 2.1, 8.0
Max Pressure(PSI, BAR) 2600, 179
Power Input(HP) 6.5
Power Speed(RPM) 3400
Weight(KG) 3.7
Shipping Size(CM) 25x22.5x20

MODEL: DAC-14071V

Max Flow(GPM, LPM) 2.4, 9.1
Max Pressure(PSI, BAR) 2600, 179
Power Input(HP) 6.5
Power Speed(RPM) 3400
Weight(KG) 3.7
Shipping Size(CM) 25x22.5x20

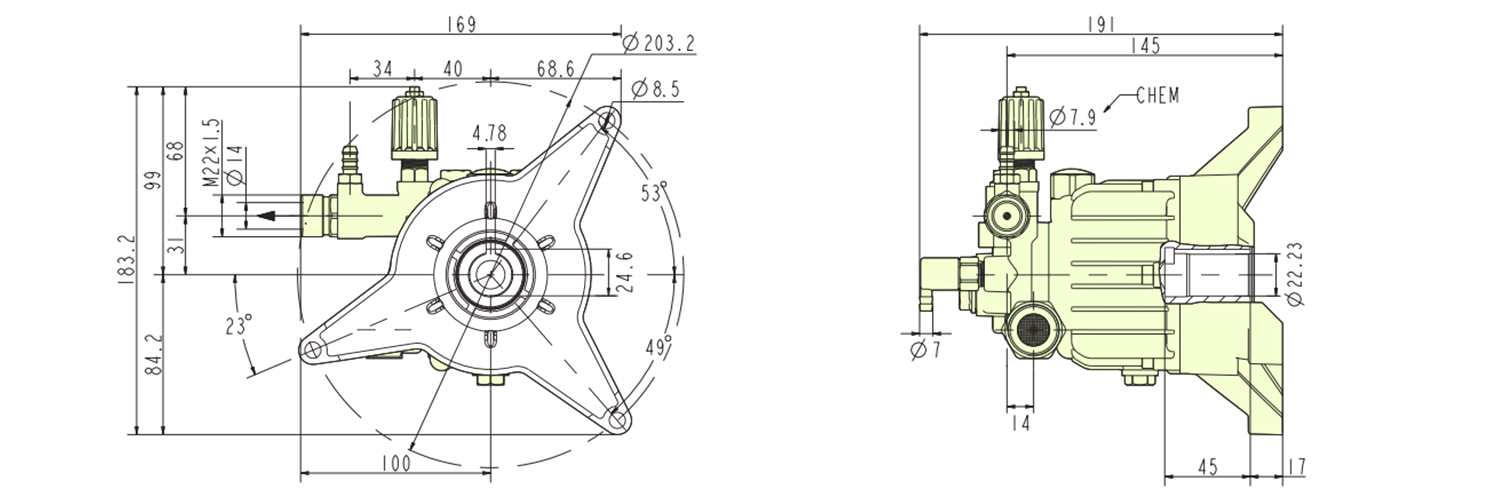

DIMENSION

COMPONENTS

  • MANIFOLD

    Brass Forged

  • HOUSING

    Aluminum Alloy

  • WOBBLE PLATE

    Forged Steel Alloy

  • BEARING

    Thrust Bearing

  • PLUNGER

    Coating Ceramic

  • PACKING

    U Type Dual Seal

APPLICATIONS

  • PRESSURE WASHING
  • MISTING AND FOG MAKING
  • HOT WATERAPPLICATION
  • ROADS FLUSHINGAND CLEANING
  • WATER TREATMENT

DOCUMENTS
