High Quality DBT Series Industrial Plunger Pump

Home / Products / Industrial Plunger Pump / Industrial Plunger Pump / DBT Series Industrial Plunger Pump
  • DBT Series Industrial Plunger Pump

    HORIZONTAL Quintuplex-plunger

  • DBT Series Industrial Plunger Pump

    VERTICAL Quintuplex-plunger pump

Industrial Plunger Pump

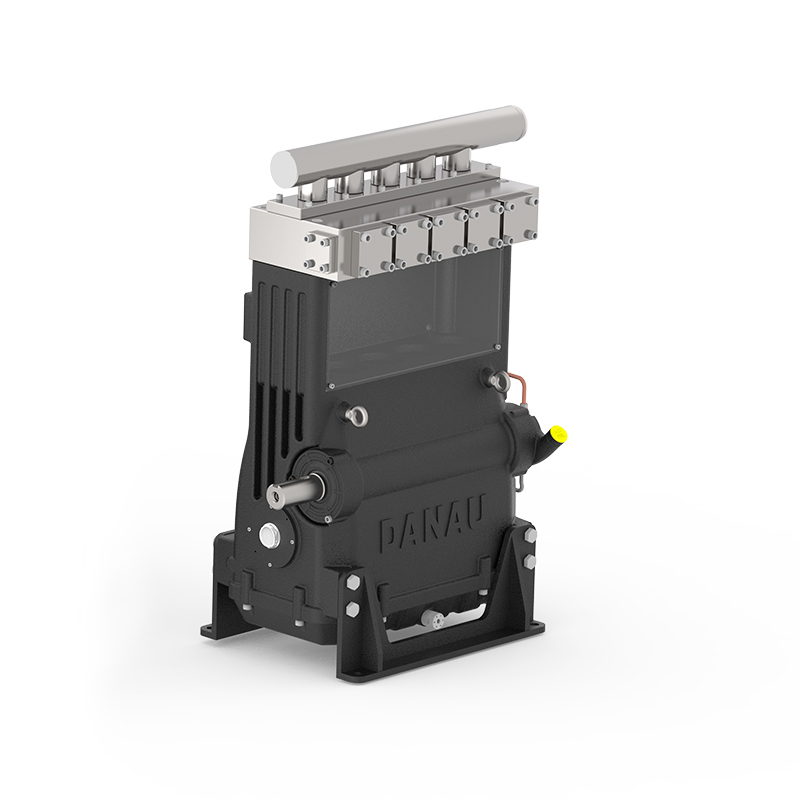

DBT Series Industrial Plunger Pump

DBT Series Industrial Plunger Pump combines a multi-plunger design with crankshaft-driven operation to deliver a high-performance positive displacement pump. The coordinated reciprocating motion of five plungers ensures efficient fluid suction and discharge, offering stable high flow, adjustable pressure, and the capability to handle complex media. It is ideal for high-pressure applications such as industrial cleaning, mining transportation, and large irrigation. The crankcase is precision-cast from high-strength alloy cast iron, while the crankshaft is forged from high-strength alloy steel to ensure sufficient material strength. Stainless steel and duplex steel options are available. High-performance ceramic plungers provide superior hardness, wear resistance, high-temperature tolerance, and corrosion resistance. A dual-seal system, combined with inlet and outlet check valves, guarantees efficient operation of the hydraulic end. Various accessories can be connected to the pump head, maintaining a stable flow range of 800–1100 L/min and pressures of 0–12 MPa.

Get a Quote +
PREV：DBW Series Industrial Plunger Pump
NEXT：No next article

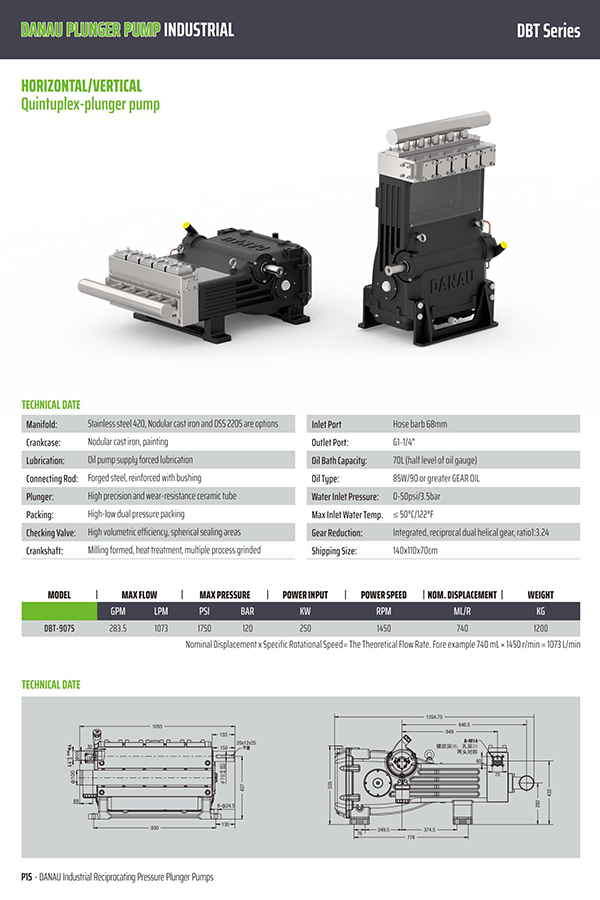

TECHNICAL DATA

Manifold: Stainless steel 420, Nodular cast iron and DS5 2205 are options
Crankcase: Nodular castiro, painting
Lubrication: Dil pump supl forced lubrication
Connecting Rod: Forged steel, reinforced with bushing
Plunger: High precision and wear-resistant ceramic tube
Packing: High-low dual pressure packing
Checking Valve: High volumetric efficiency, spherical sealing areas
Crankshaft: Milling formed, heat treatment, multiple process ginded
Inlet Port: Hose barb 68mm
Outlet Port: G1-1/4”
Oil Bath Capacity: 70L(half level of oil gauge)
Oil Type: 85W/90 or greater GEAR OIL
Water Inlet Pressure: 0-0.35Mpa
Max lnlet Water Temp. ≤50°C
Gear Reduction: Integrated, reciprocal dual helical gear ratio: 3.24
Shipping Size: 140x110×70cm

SPECIFICATION

MODEL: DBT-9075

Max Flow(L/m, GPM) 1073
Max Pressure(MPa, PSI) 12
Power Supply(kW) 250
Input Speed(rpm) 1450
Nominal Displacement(ml/rev) 740
Product Weight(kg) 1200

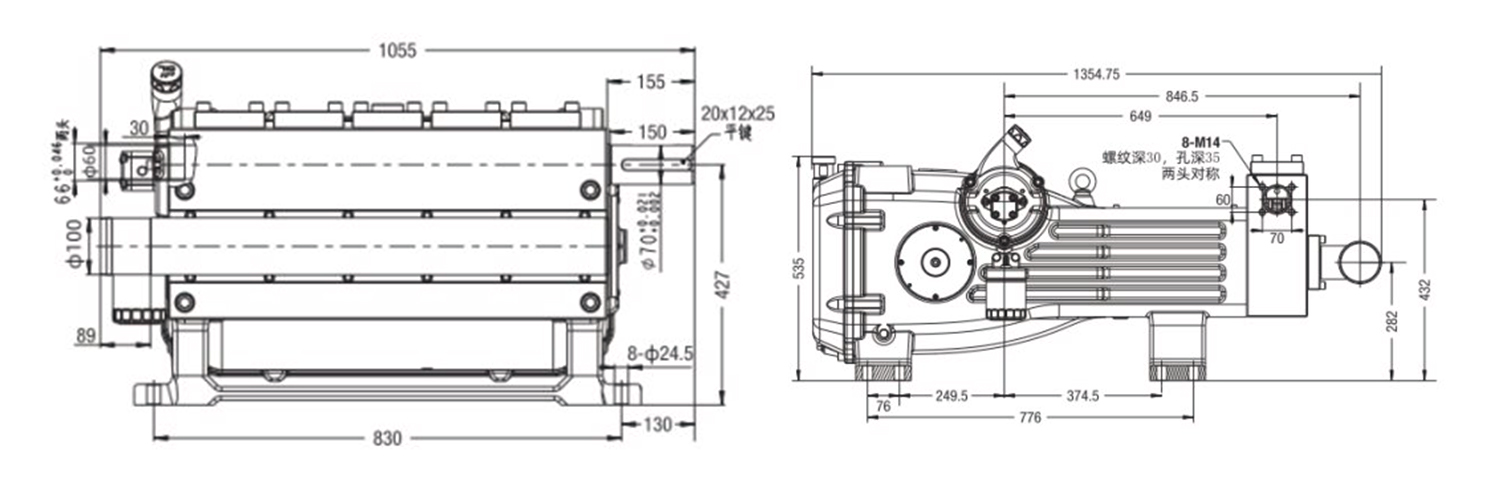

DIMENSION

DOCUMENTS
